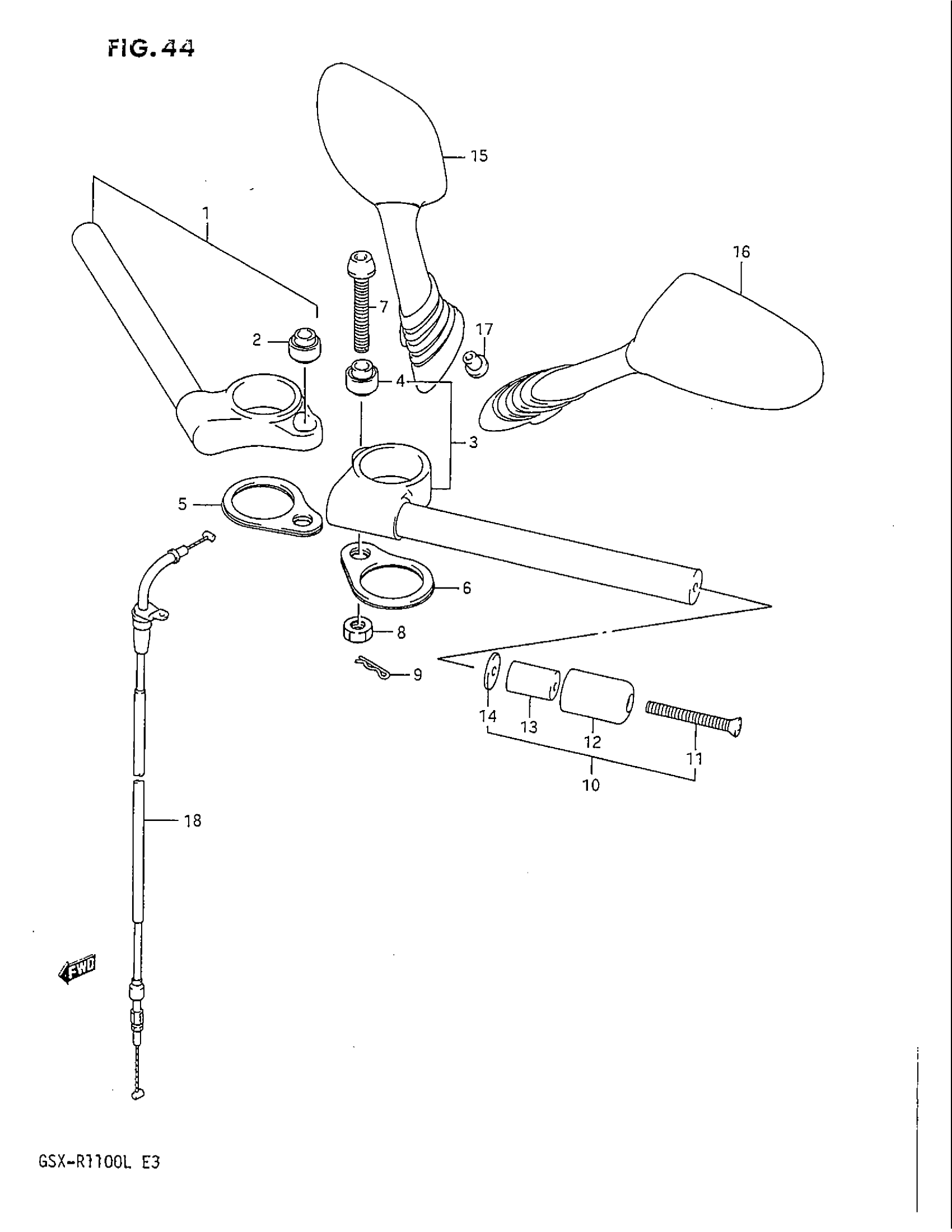

Suzuki GSX-R1100 (1990) HANDLEBAR (MODEL K) Diagram

#

Description
Price

1

HANDLEBAR SET, RH | Includes Item(s) 2

56110-40C10

Unavailable

2

BUSH

09319-10062

Unavailable

3

HANDLEBAR SET, LH | Includes Item(s) 4

56150-40C10

Unavailable

4

BUSH

09319-10062

Unavailable

5

CUSHION, RH

56240-40C01

Unavailable

6

CUSHION, LH

56260-40C01

Unavailable

7

BOLT

56231-40C01

Unavailable

8

NUT This part replaces 08310-22107.

08310-00107

$2.19

9

CLIP

09385-10005

$1.56

10

BALANCER SET,HN | TO 56200-40811; Includes Item(s) 11 - 14 This part replaces 56200-40810.

56200-40821

Unavailable

11

SCREW

09127-06015

Unavailable

12

CAP | TO 56274-40C10W/56271-40C10 This part replaces 56274-40C00.

56274-40C10

Unavailable

13

BALANCER

56271-40C00

Unavailable

14

SPACER This part replaces 56275-34400.

56275-34401

$4.02

15

MIRROR ASSY, REAR VIEW RH

56500-40C11-33J

Unavailable

15

MIRROR ASSY, REAR VIEW RH

56500-40C11-22R

Unavailable

16

MIRROR ASSY, REAR VIEW LH

56600-40C11-33J

Unavailable

16

MIRROR ASSY, REAR VIEW LH

56600-40C11-22R

Unavailable

17

NUT, MIRROR

56619-17C00

$7.72

18

CABLE ASSY, THROTTLE

58300-17C01

Unavailable
