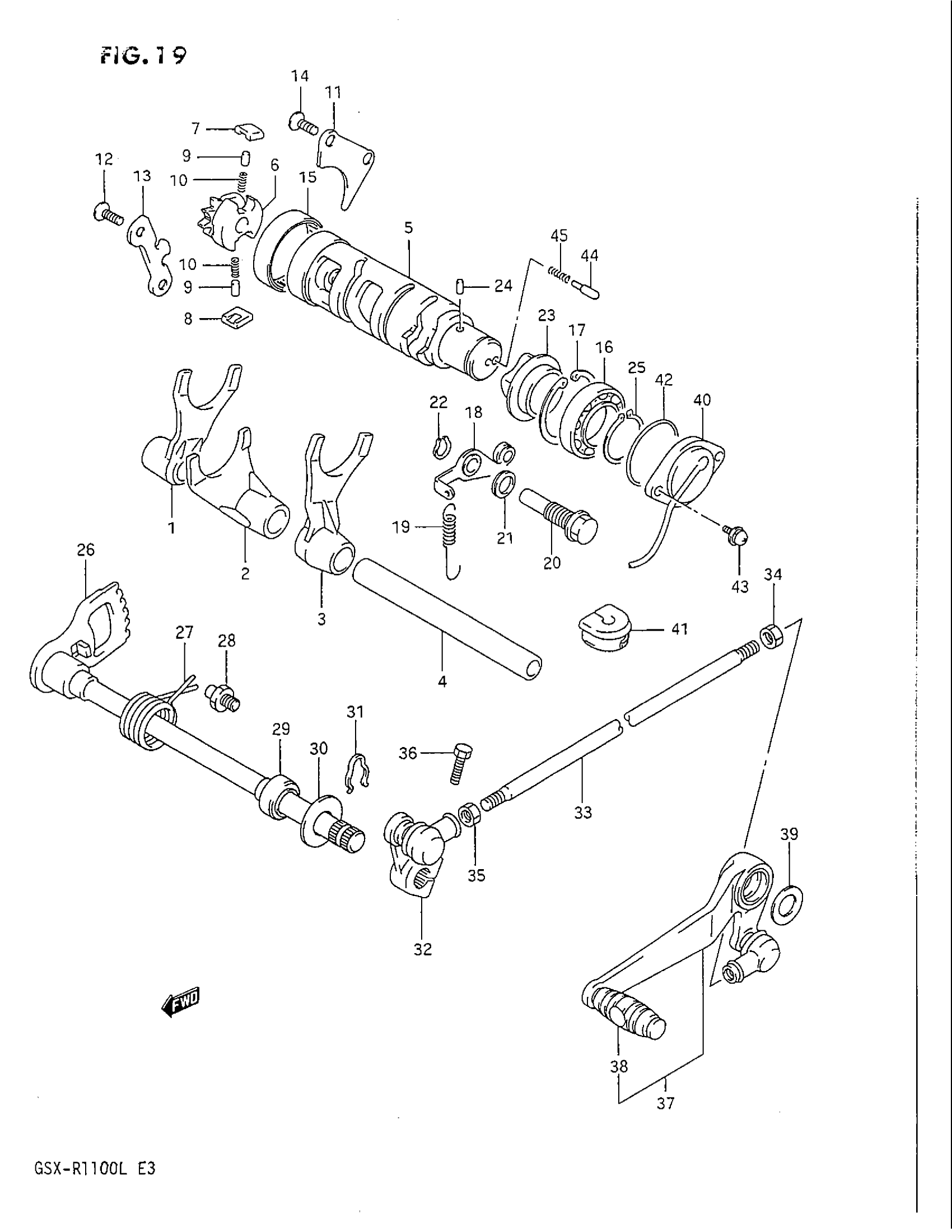

Suzuki GSX-R1100 (1990) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-06B01.

25211-06B02

$99.47

2

FORK, GEAR SHIFTING NO.2

25221-06B00

$101.37

3

FORK, GEAR SHIFTING NO.3

25231-06B00

$99.47

4

SHAFT, GEAR SHIFTING FORK

25411-27A00

$33.02

5

CAM, GEAR SHIFT This part replaces 25310-06B02.

25310-06B03

$282.68

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

7

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

8

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

9

PIN

09261-05003

$1.69

10

SPRING

09440-04003

$1.48

11

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.83

13

GUIDE, CAM

25341-27A00

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.83

15

BEARING, RH

09263-43001

$36.05

16

BEARING This part replaces 08110-69050.

08113-69050

$32.64

17

CIRCLIP This part replaces 08331-41428.

08331-41429

$2.51

18

STOPPER, CAM

25350-27A00

$19.03

19

SPRING

09443-09031

Unavailable

20

SHAFT, STOPPER

25353-27A00

Unavailable

21

WASHER

09168-10002

$1.96

22

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.77

23

PLATE, STOPPER

25381-38400

Unavailable

24

PIN This part replaces 06211-04063.

04221-04069

$2.30

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.09

26

SHAFT, GEAR SHIFT This part replaces 25510-19C00.

25510-19C01

Unavailable

27

SPRING

09444-26017

$5.00

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.99

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.77

32

ARM,GEAR SHIFT | MODEL K This part replaces 25520-19C00.

25520-19C03

$32.63

32

ARM,GEAR SHIFT | MODEL L This part replaces 25520-19C01.

25520-19C03

$32.63

33

ROD, GEAR SHIFT LINK This part replaces 25525-17C02.

25525-17C20

$19.23

34

NUT

09140-06011

$1.37

35

.NUT This part replaces 08310-11067.

08310-00067

$1.83

36

BOLT This part replaces 01107-06257.

01500-06257

$1.97

37

LEVER ASSY,GEAR | MODEL K This part replaces 25600-17C01.

25600-33E01

$130.72

37

LEVER ASSY,GEAR | MODEL L; Includes Item(s) 38 This part replaces 25600-17C02.

25600-33E01

$130.72

38

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

39

WASHER (18X24X1)

09160-18022

$2.80

40

BODY, GEAR SHIFTING SWITCH

37720-40C00

Unavailable

41

GROMMET, LEAD WIRE

33885-27A01

$4.72

42

O RING (D:2.4,ID:36.2)

09280-36001

$3.01

43

SCREW This part replaces 09138-05003.

09138-05011

$2.43

44

CONTACT

09209-05011

$2.02

45

SPRING

09440-04010

$1.52
