1990 Suzuki GSX-R1100 Clutch Diagram

← All diagrams

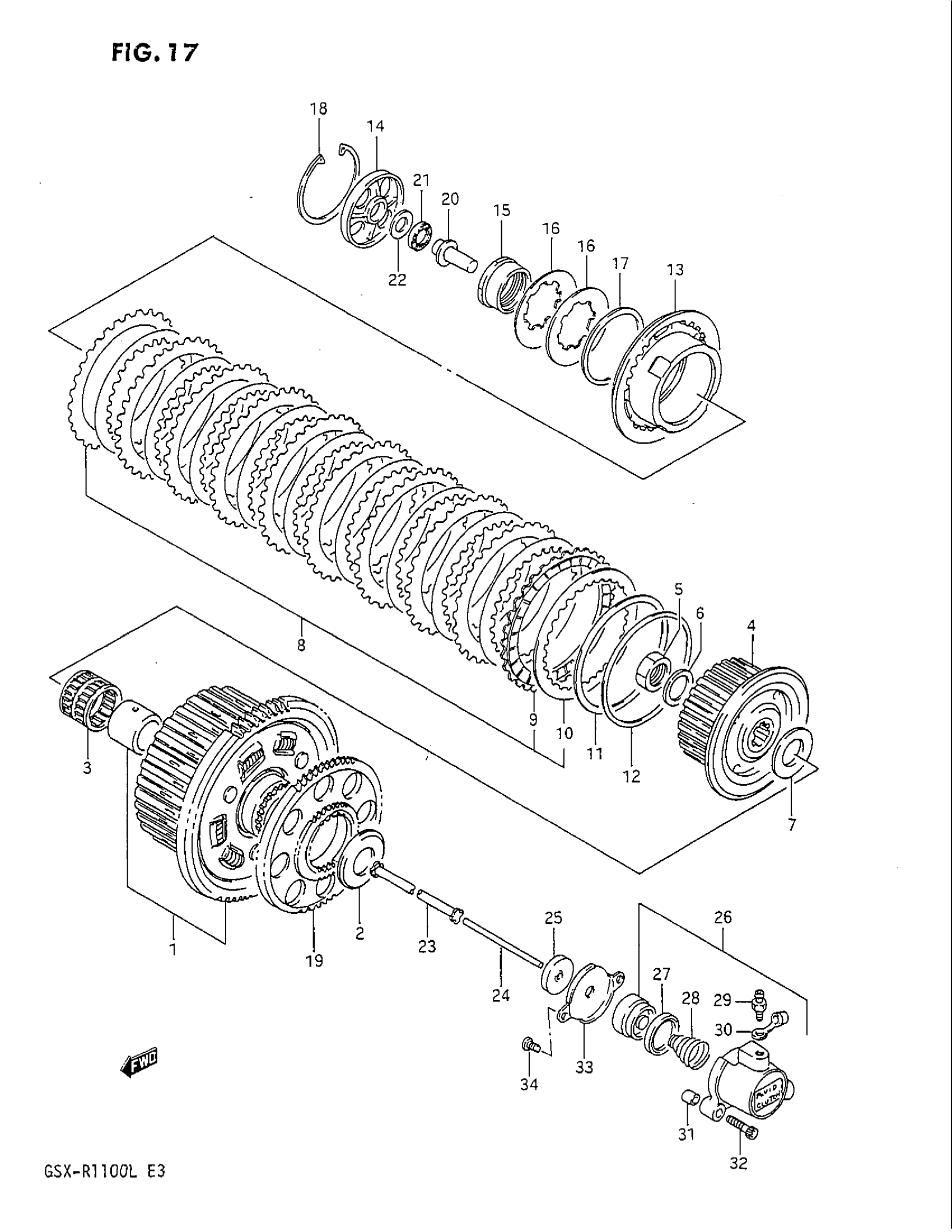

Find the part on the Clutch diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R1100 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 21200-40811.

21200-40814

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 21200-40812.

21200-40814

1
Out of stock

2

WASHER

09160-25067

1
Out of stock

3

BEARING

09263-35017

1
Out of stock

4

HUB, SLEEVE

21410-40C01

1
Out of stock

5

NUT

09140-24014

1
Out of stock

6

WASHER

09164-24006

1
Out of stock

7

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

8

PLATE ASSY, CLUTCH | Includes Item(s) 9 - 10 This part replaces 21400-40C00.

21400-40C01

1
Out of stock

9

PLATE, DRIVE NO.1 (T:2.6)

21441-48B00

10
Out of stock

10

PLATE, DRIVEN (T:2)

21451-48B00

10
Out of stock

11

WAVE WASHER

09164-00007

1
Out of stock

12

SEAT, WAVE WASHER

21471-40C01

1
Out of stock

13

DISC, PRESSURE

21462-40C02

1
Out of stock

14

LIFTER, CLUTCH PRESSURE DISK

21463-40C01

1
Out of stock

15

HOLDER, CLUTCH SPRING

21611-40C01

1
Out of stock

16

SPRING

09164-47001

2
Out of stock

17

SEAT, CLUTCH SPRING

21623-40C00

1
Out of stock

18

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

1
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 22721-06B02.

22721-06B03

1
Out of stock

20

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

1
Out of stock

21

BEARING

09263-15003

1
Out of stock

22

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

23

ROD, PUSH RH

23110-27A00

1
Out of stock

24

ROD, PUSH LH | ~E.NO.104504 This part replaces 23111-44111.

23111-05A01

1
Out of stock

24

ROD, PUSH LH (L:101.5) | E.NO.104505~

23111-05A01

1
Out of stock

25

OIL SEAL

09285-06015

1
Out of stock

26

CYLINDER,CLUTCH | Includes Item(s) 27 - 30 This part replaces 23160-06B01.

23160-06B03

1
Out of stock

27

CUP

23163-06B00

1
Out of stock

28

SPRING

23164-05A00

1
Out of stock

29

BLEEDER

59121-01A00

1
Out of stock

30

CAP, BLEEDER

59122-01A00

1
Out of stock

31

PIN

04211-09129

2
Out of stock

32

BOLT This part replaces 07110-06255.

07130-0625B

2
Out of stock

33

COVER, CYLINDER This part replaces 23117-27A03.

23117-46E00

1
Out of stock

34

SCREW This part replaces 02112-06106.

02112-0610B

2
Out of stock
