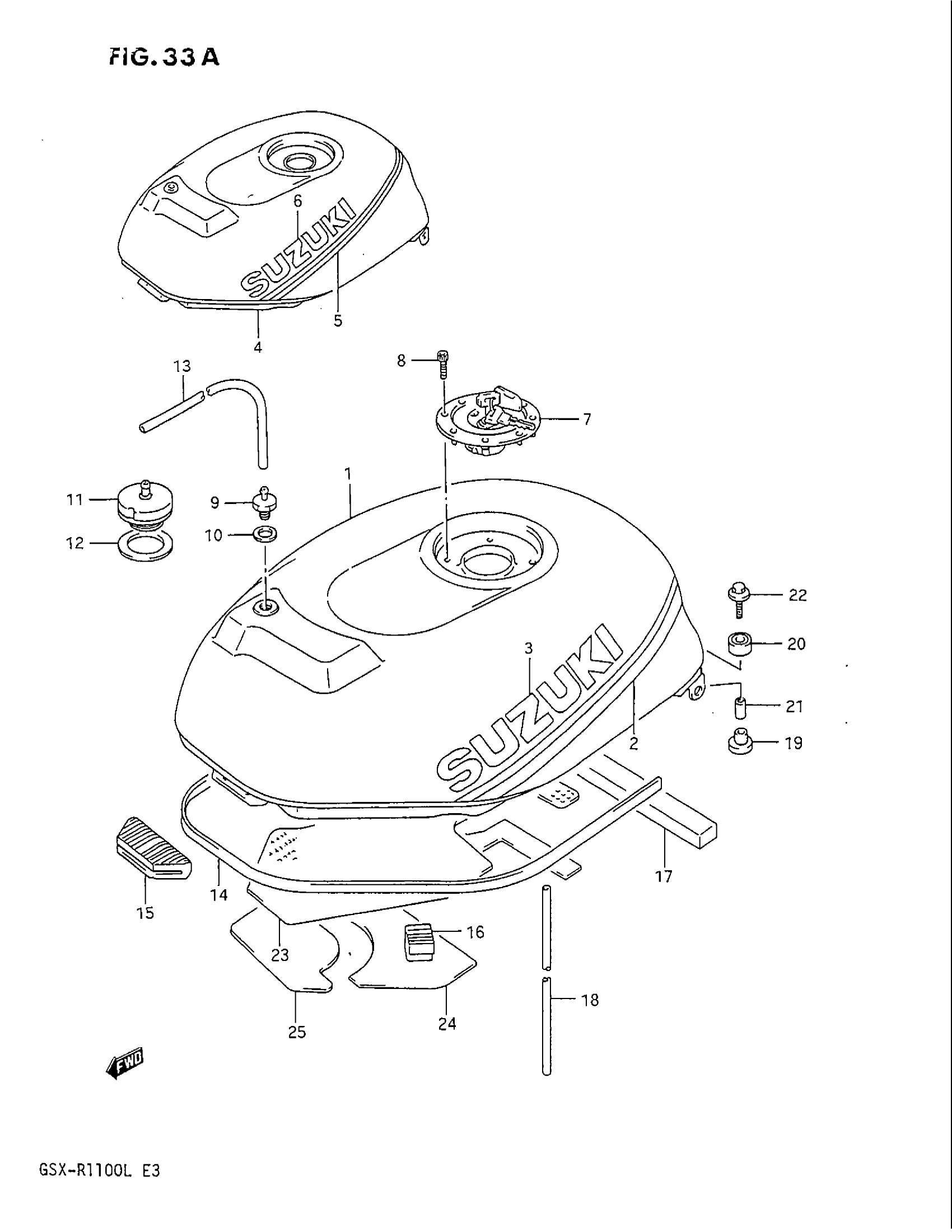

Suzuki GSX-R1100 (1990) FUEL TANK (MODEL L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 49100-40C20-3SH.

49100-40C80-3SH

Unavailable

1

TANK ASSY, FUEL | CALIFORNIA ONLY; Includes Item(s) 2 - 3

44100-41C10-3SH

Unavailable

2

TAPE, FUEL TANK | FOR 3SH

68115-40C30-3SM

Unavailable

3

EMBLEM (BLUE) | FOR 3SH

68111-43400-0NE

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 49100-40C70-3CG.

49100-40C91-3CG

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIRORNIA ONLY; Includes Item(s) 5 - 6 This part replaces 44100-41C20-3CG.

44100-41C21-3CG

Unavailable

5

NO DESCRIPTION AVAILABLE | FOR 3CG This part replaces 68115-17D10-3CG.

68115-17D11-3CG

Unavailable

6

EMBLEM | FOR 3CG This part replaces 68111-12C00-742.

68111-12C30-13L

Unavailable

7

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

8

BOLT

09106-05017

$2.83

9

PLUG, BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

10

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

11

VALVE, FUEL TANK BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

12

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

13

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

14

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

15

CUSHION, FRONT

44511-17C00

Unavailable

16

CUSHION, SIDE

44545-40C00

Unavailable

17

CUSHION, AIR SEAL This part replaces 44151-17C00.

13841-17E00

Unavailable

18

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

19

CUSHION, LOWER

09320-10038

$2.61

20

CUSHION, UPPER

09320-14017

$2.35

21

SPACER This part replaces 09180-06072.

09180-06271

$2.35

22

BOLT

09116-06097

$2.54

23

HEAT SHIELD, FUEL TANK

44191-17C01

Unavailable

24

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-40C00

Unavailable

25

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-40C10

Unavailable
