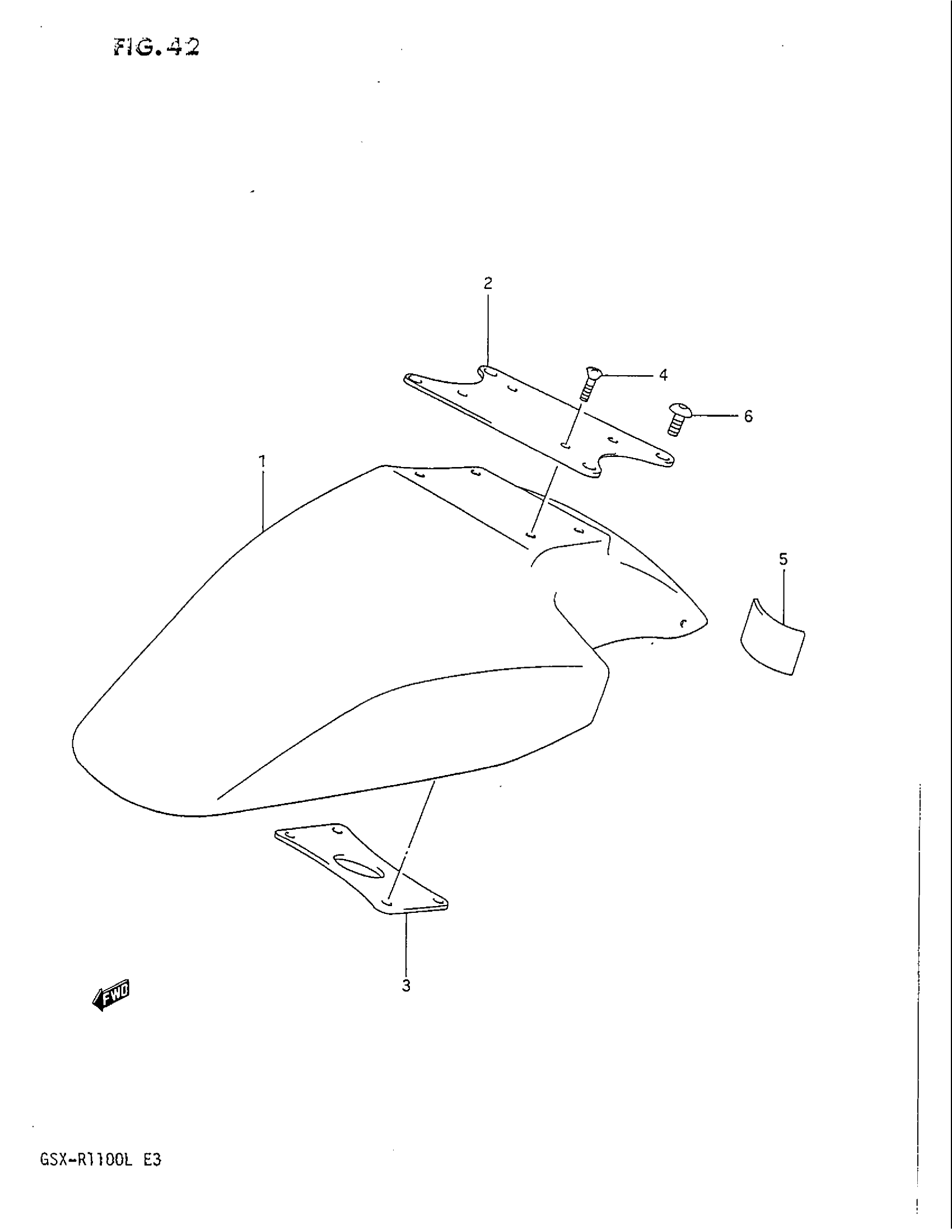

Suzuki GSX-R1100 (1990) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (BLUE) | MODEL K,FOR 9SRTO 53111-17C21-33N This part replaces 53111-17C01-33N.

53111-17C21-0NE

Unavailable

1

FENDER, FRONT (GRAY) | MODEL K,FOR 3CGTO 53111-17C21-17U This part replaces 53111-17C01-17U.

53111-17C21-17U

Unavailable

1

FENDER, FRONT (BLUE) | MODEL L,FOR 3SH

53111-17C21-0NE

Unavailable

1

FENDER, FRONT (BLACK) | MODEL L,FOR 3CG

53111-17C21-33J

Unavailable

2

BRACE, FRONT FENDER

53114-17C02

Unavailable

3

BRACE, FRONT FENDER INNER

53210-17C00

$12.82

4

SCREW

09139-05032

$1.89

5

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

6

SCREW

09139-08007

$3.70
