1990 Suzuki GSX-R1100 Front Calipers Diagram

← All diagrams

Find the part on the Front Calipers diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

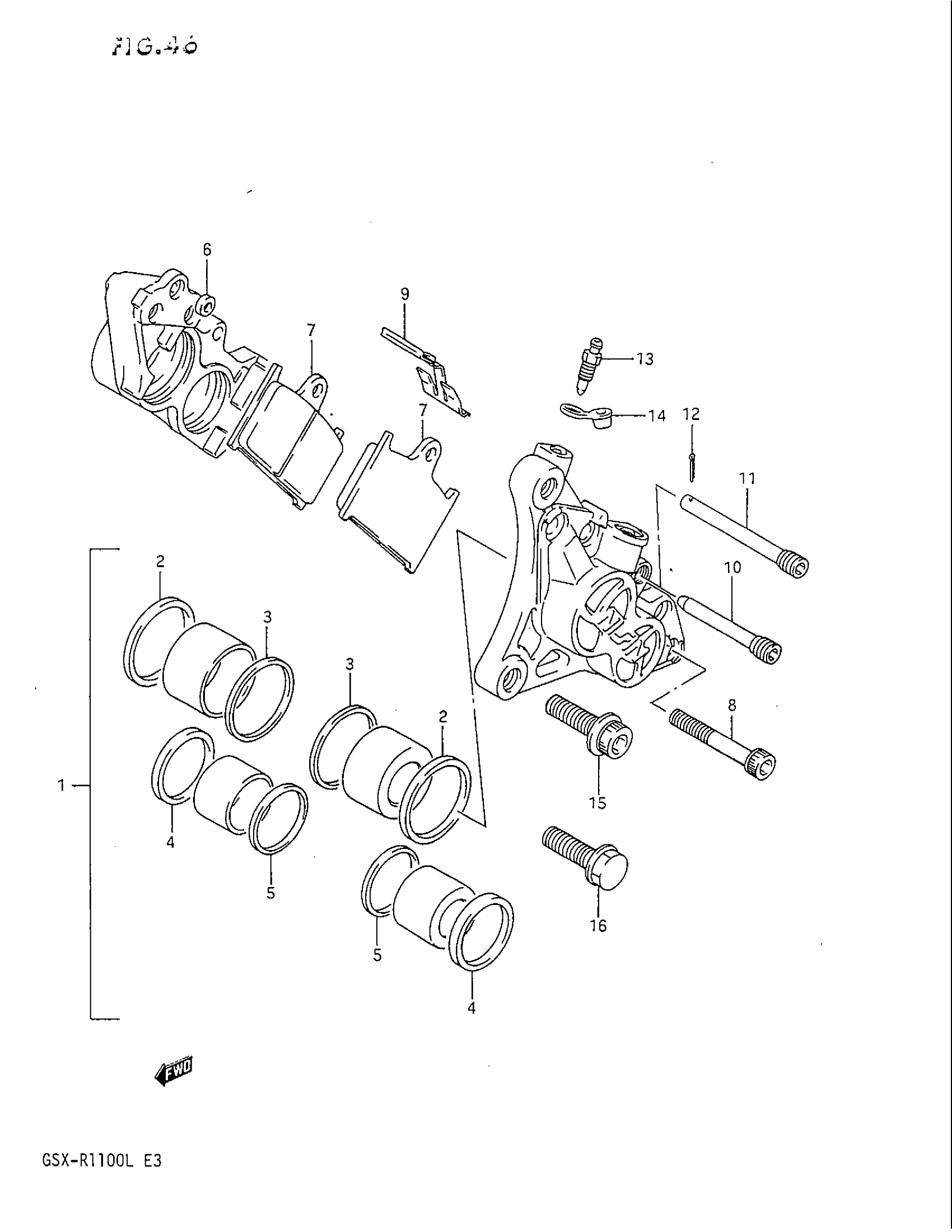

1990 Suzuki GSX-R1100 Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, RH | MODEL K,TO 59100-40C01 This part replaces 59100-40C00.

59100-40C01

1
Out of stock

CALIPER ASSY, F | MODEL K,TO 59300-40C01 This part replaces 59300-40C00.

59300-17E10-999

1
Out of stock

CALIPER ASSY, RH | MODEL L

59100-40C01

1
Out of stock

CALIPER ASSY, F | MODEL L; Includes Item(s) 1 - 14 This part replaces 59300-40C01.

59300-17E10-999

1
Out of stock

1

PISTON SET

59100-17830

2
Out of stock

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

4
Out of stock

3

BOOT

59108-13A00

4
Out of stock

4

4

$9.85

In stock

5

BOOT

59108-17C00

4
Out of stock

6

SEAL

69107-17C00

4

$8.14

In stock

7

PAD SET This part replaces 59130-40C00.

59100-40810

4
Out of stock

8

BOLT, HOUSING

59145-17C00

8
Out of stock

9

SPRING

59315-17C00

2

$15.43

In stock

10

PIN | MODEL K

59345-00B20

2

$14.56

In stock

11

2

$34.12

In stock

13

BLEEDER

59121-01A00

2
Out of stock

14

CAP

59122-01A00

2
Out of stock

15

4

$5.63

In stock

16

4

$3.51

In stock
