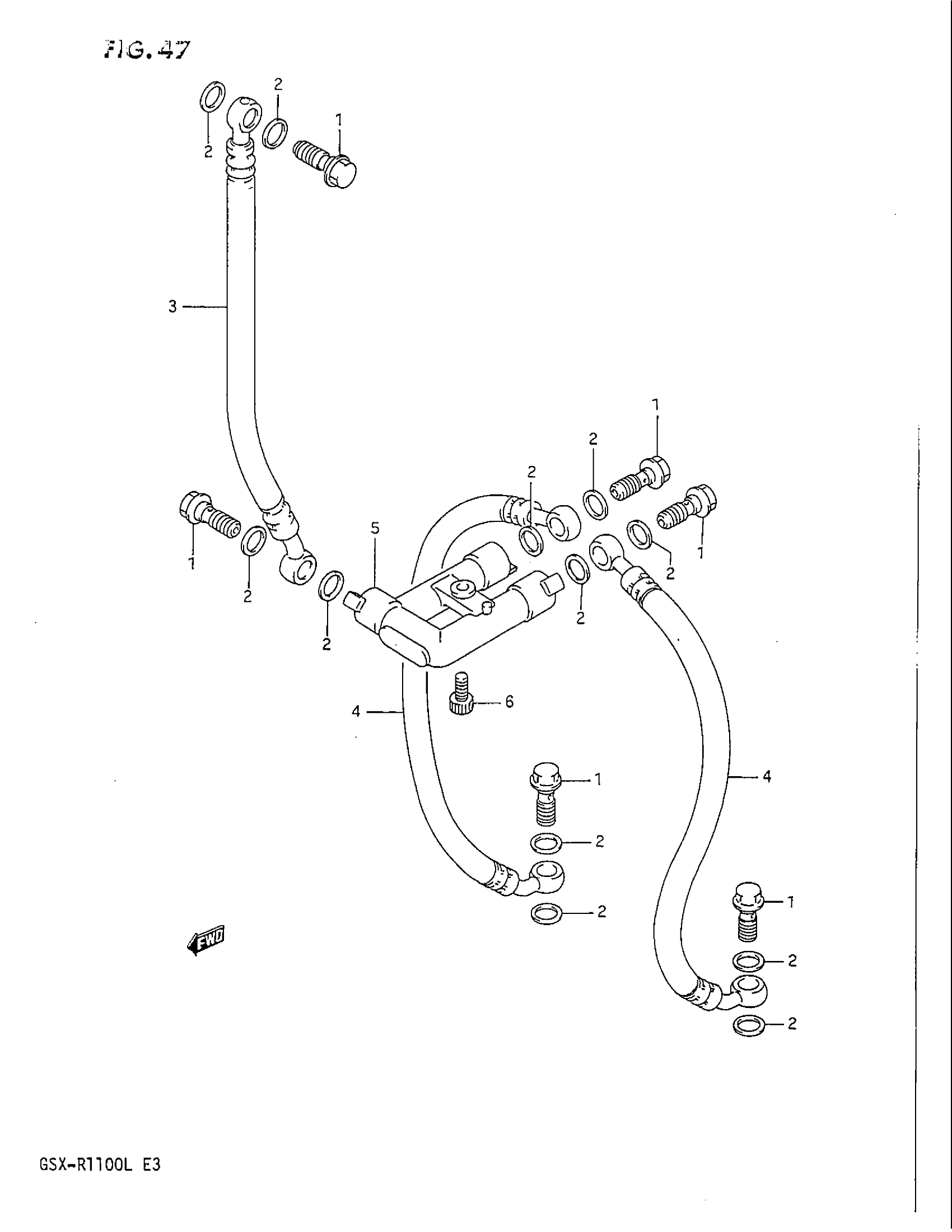

Suzuki GSX-R1100 (1990) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT

09360-10017

$3.19

2

WASHER (10X15X1.5)

09161-10009

$1.89

3

HOSE, FRONT BRAKE NO.1 | MODEL K This part replaces 59480-40C00.

59480-40C10

Unavailable

3

HOSE, FRONT BRAKE NO.1 | MODEL L

59480-40C10

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL K This part replaces 59240-40C00.

59240-40C10

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL L

59240-40C10

Unavailable

5

JOINT, BRAKE HOSE | MODEL K,TO 59491-40C01 This part replaces 59491-40C00.

59491-40C01

Unavailable

5

JOINT, BRAKE HOSE (WHITE) | MODEL L

59491-40C01

Unavailable

6

BOLT This part replaces 07110-06165.

07130-0616B

$2.44
