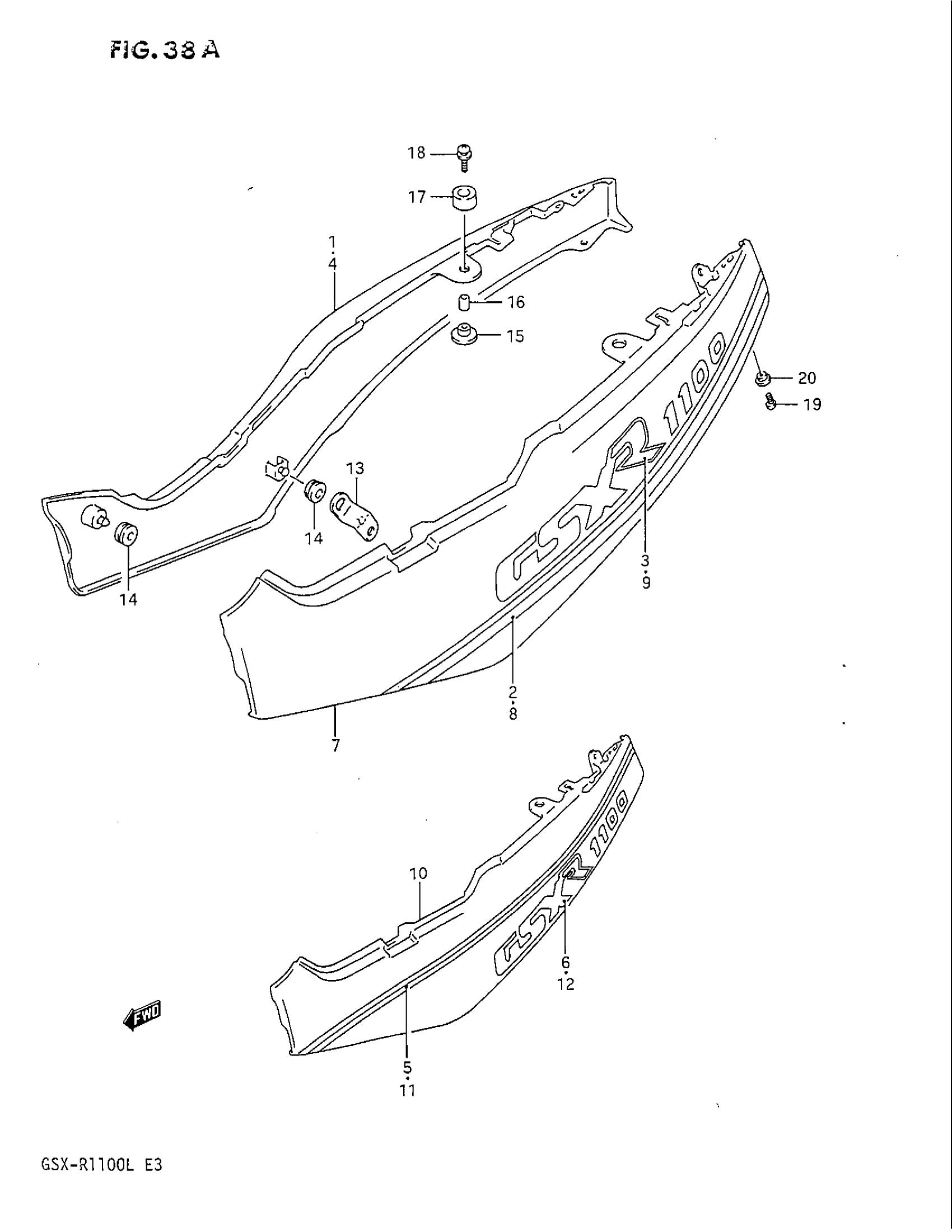

Suzuki GSX-R1100 (1990) FRAME COVER (MODEL L) Diagram

#

Description
Price

1

COVER, FRAME RH | FOR 3SH; Includes Item(s) 2 - 3

47110-40C61-3SH

Unavailable

2

TAPE, FRAME COVER RH | FOR 3SH

68135-40C30-3TS

Unavailable

3

EMBLEM, RH | FOR 3SH

68131-40C40-3YZ

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 3CG; Includes Item(s) 5 - 6 This part replaces 47110-40C71-3CH.

47111-17C00

Unavailable

5

TAPE, FRAME COVER RH | FOR 3CH

68135-17D00-3CH

Unavailable

6

EMBLEM, RH | FOR 3CH

68131-40C40-2RM

Unavailable

7

COVER, FRAME LH | FOR 3SH; Includes Item(s) 8 - 9

47210-40C61-3SH

Unavailable

8

TAPE, FRAME COVER LH | FOR 3SH

68145-40C30-3TS

Unavailable

9

EMBLEM, LH | FOR 3SH

68131-40C40-3YZ

Unavailable

10

COVER, FRAME LH | FOR 3CG; Includes Item(s) 11 - 12

47210-40C71-3CH

Unavailable

11

TAPE, FRAME COVER LH | FOR 3CH

68145-17D00-3CH

Unavailable

12

EMBLEM, LH | FOR 3CH

68131-40C40-2RM

Unavailable

13

BRACKET,FRAME C This part replaces 43815-17C11.

43815-17C1V

Unavailable

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

CUSHION, LOWER

45326-17C00

$5.09

16

SPACER This part replaces 09180-06143.

09180-06286

$2.50

17

CUSHION, UPPER

45149-04A00

$3.59

18

SCREW

09136-06083

$2.19

19

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

20

WASHER

09161-05017

$3.18
