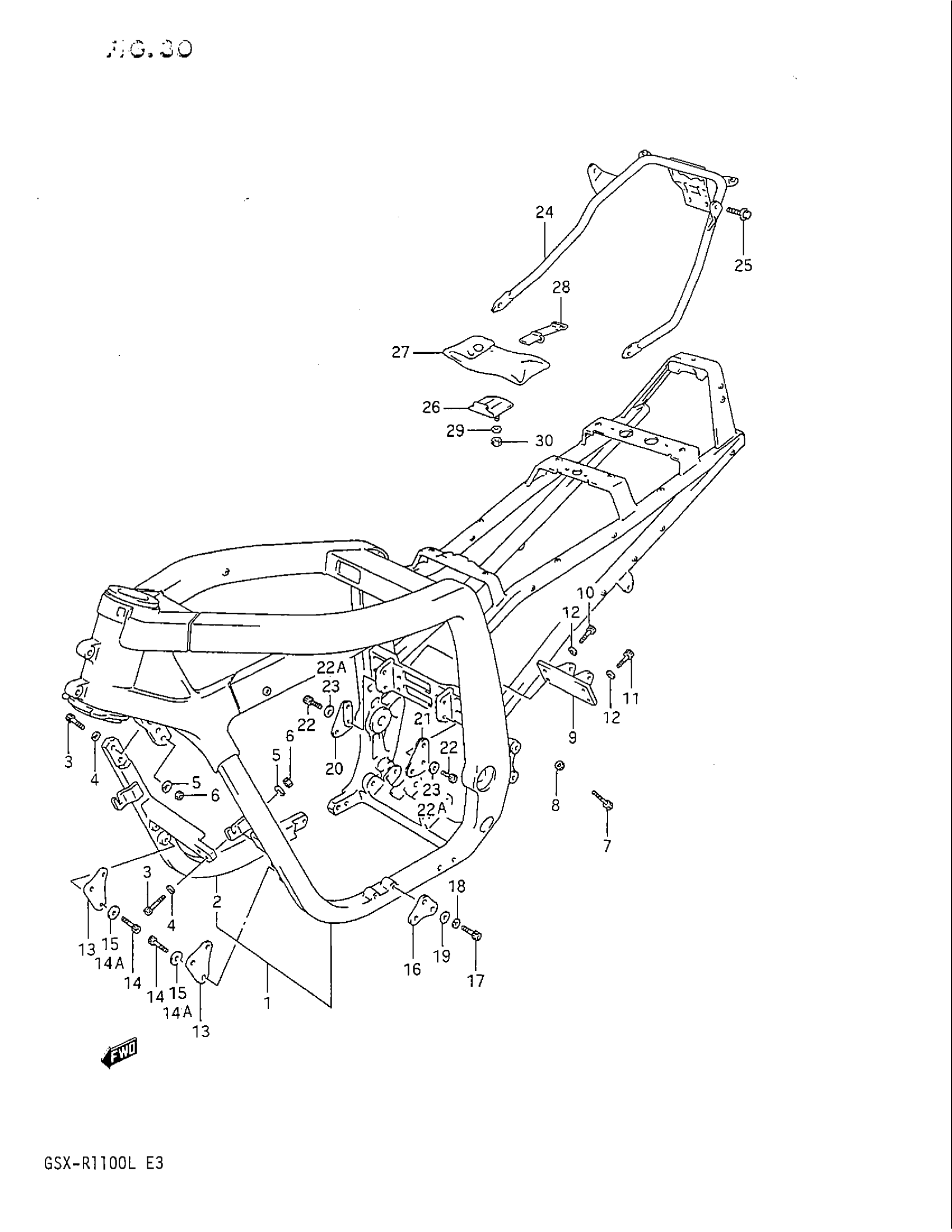

Suzuki GSX-R1100 (1990) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL K This part replaces 41100-40810.

41100-40830

Unavailable

1

FRAME SET | CALIFORNIA ONLY,MODEL K

41100-40830

Unavailable

1

FRAME SET | MODEL L This part replaces 41100-40840.

41100-40850

Unavailable

1

FRAME SET | CALIFORNIA ONLY,MODEL L; Includes Item(s) 2 - 8

41100-40850

Unavailable

2

TUBE, FRAME DOWN RH | MODEL K

41140-40C00

Unavailable

2

TUBE, FRAME DOWN RH | MODEL L

41140-40C30

Unavailable

3

BOLT, LH This part replaces 07110-10357.

07130-10357

$5.18

4

WASHER This part replaces 09160-10013.

09160-10123

$2.12

5

WASHER This part replaces 09164-10005.

09164-10010

$4.83

6

NUT

09159-10027

$3.10

7

BOLT | CALIFORNIA ONLY This part replaces 01107-06207.

01500-06207

$2.28

8

GASKET | CALIFORNIA ONLY

09168-06001

$1.49

9

BRACKET, REAR CUSHION UNIT | MODEL K

41384-40C00

Unavailable

10

BOLT, NO.1 | MODEL K

09106-10017

Unavailable

11

BOLT, LH | MODEL K This part replaces 07110-10357.

07130-10357

$5.18

12

WASHER | MODEL K This part replaces 09164-10005.

09164-10010

$4.83

13

PLATE, ENGINE MOUNT NO.1 This part replaces 41911-40C00.

41911-41C00

Unavailable

14

BOLT This part replaces 07110-08257.

07130-08257

$3.43

14A

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

16

PLATE, ENGINE MOUNT NO.2

41921-17C02

Unavailable

17

BOLT This part replaces 07110-08257.

07130-08257

$3.43

18

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

19

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

20

PLATE, ENGINE MOUNT NO.3 RH

41940-40C01

Unavailable

21

PLATE, ENGINE MOUNT NO.3 LH

41950-40C01

Unavailable

22

BOLT

09106-08005

Unavailable

22A

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

24

GRIP, REAR | MODEL K

43980-17C10

Unavailable

24

GRIP, REAR | MODEL L

43980-40C40

Unavailable

25

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

26

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

27

TOOL ASSY | MODEL K This part replaces 09800-20026.

09800-21017

$76.62

27

TOOL ASSY | MODEL L This part replaces 09800-20032.

09800-21017

$76.62

28

BAND This part replaces 09462-00072.

09462-00094

$3.16

29

WASHER This part replaces 09160-06006.

09160-06084

$1.78

30

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
