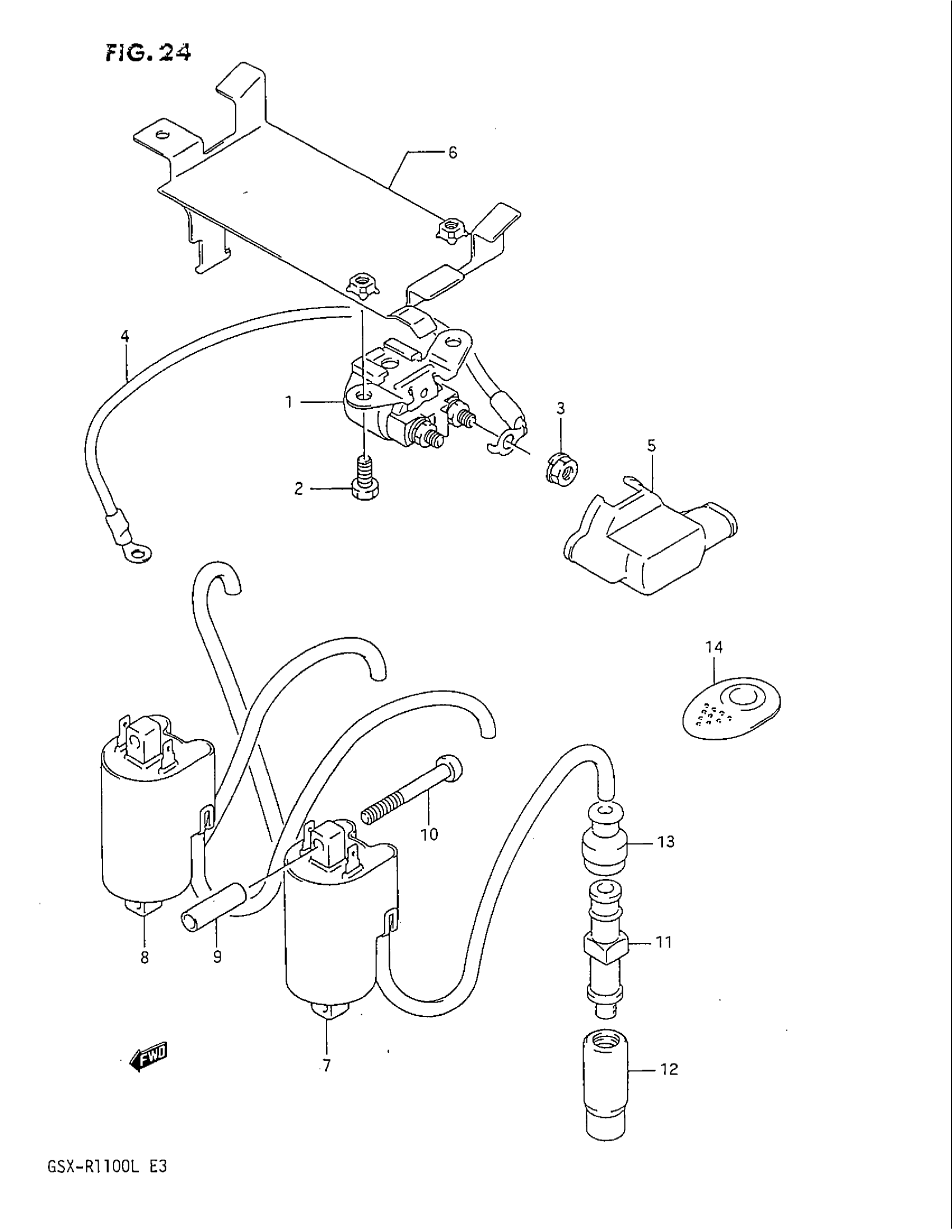

Suzuki GSX-R1100 (1990) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW (L:8)

09128-06013

$1.49

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR This part replaces 33850-40C00.

33810-41C00

Unavailable

5

CAP, TERMINAL This part replaces 31861-19C00.

31861-10D10

Unavailable

6

HOLDER, ELECTRIC PARTS

47410-17C00

Unavailable

7

COIL ASSY, IGNI This part replaces 33410-40C00.

33410-17C01

Unavailable

8

COIL ASSY, IGNI This part replaces 33420-17C00.

33410-17C01

Unavailable

8

COIL ASSY, IGNI | CALIFORNIA ONLY This part replaces 33420-17C10.

33410-17C01

Unavailable

9

SPACER (6.4X10X32) | OTHER THAN CALIFORNIAALUMINIUM

09180-06179

$4.50

9

SPACER,6.5X10.5 | OTHER THAN CALIFORNIA,STEEL This part replaces 09180-06146.

09180-06146-XC0

Unavailable

10

SCREW This part replaces 02112-06556.

02112-0655B

$2.53

11

CAP, SPARK PLUG | MODEL K This part replaces 33510-20C01.

33510-20C02

$38.58

11

CAP, SPARK PLUG | MODEL L

33510-20C02

$38.58

12

SEAL, PLUG

33541-20C00

$13.43

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

COVER

33543-48B00

$7.25
