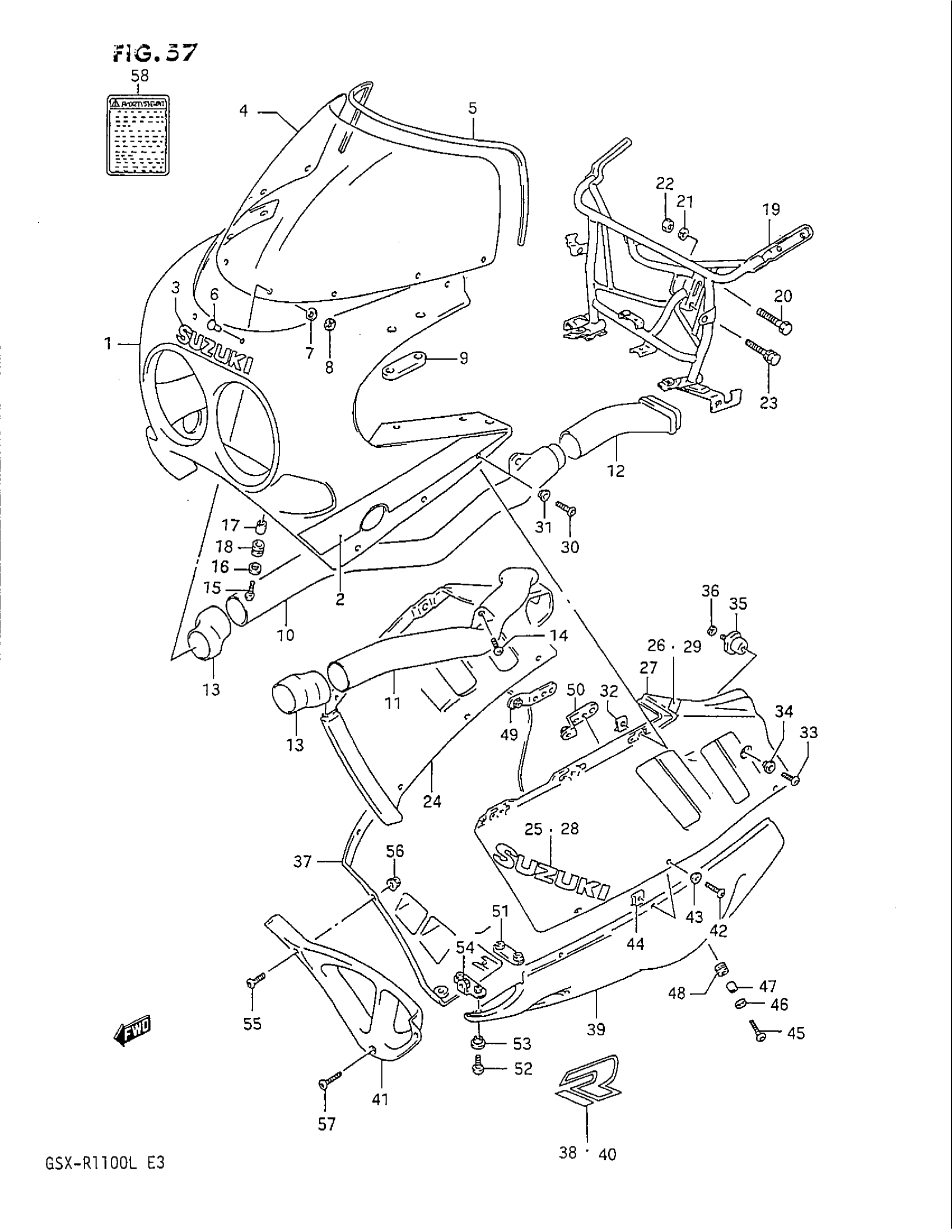

Suzuki GSX-R1100 (1990) COWLING (MODEL K 9SR) Diagram

#

Description
Price

1

BODY ASSY, COWLING | CLEAR COATING

94400-40C01-9SR

Unavailable

1

BODY ASSY, COWLING | Includes Item(s) 2 - 3 This part replaces 94400-40C02-9SR.

94400-40C01-9SR

Unavailable

2

TAPE SET

68270-40C00-39K

Unavailable

3

EMBLEM (SILVER) This part replaces 68185-05C10-22R.

68185-05C10-13L

Unavailable

4

SCREEN SET, WIND | Includes Item(s) 5

94610-40C00

Unavailable

5

MOLDING This part replaces 94631-40C00.

94631-44110

$36.85

6

PIN, WIND SCREEN (4X13) This part replaces 94616-40C01.

94616-10D00

$2.96

7

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

8

NUT

09148-04032

$2.17

9

CUSHION, MIRROR

94576-12C00

Unavailable

10

PIPE, AIR INTAKE FRONT RH

94451-40C00

Unavailable

11

PIPE, AIR INTAKE FRONT LH

94452-40C00

Unavailable

12

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

13

JOINT, AIR INTAKE

94454-40C00

Unavailable

14

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

15

SCREW, BODY FRONT

09139-06056

$3.23

16

WASHER

09160-06056

$1.72

17

SPACER This part replaces 09180-06152.

09180-06262

$2.55

18

CUSHION

09320-09016

$1.97

19

NO DESCRIPTION AVAILABLE This part replaces 94510-40C02.

94510-40C13

Unavailable

20

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

21

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

22

NUT This part replaces 08310-12085.

08310-0008A

$1.84

23

BOLT This part replaces 01137-08355.

01570-0835A

$3.16

24

COVER, SIDE RH (BLUE/WHITE) | CLEAR COATING

94430-40C00-9SR

Unavailable

24

COVER, SIDE RH (BLUE/WHITE) | Includes Item(s) 25 - 26 This part replaces 94430-40C01-9SR.

94430-40C00-9SR

Unavailable

25

EMBLEM

68112-43400-22R

Unavailable

26

TAPE, SIDE RH

68685-40C00-39K

Unavailable

27

COVER, SIDE LH (BLUE/WHITE) | CLEAR COATING

94440-40C00-9SR

Unavailable

27

COVER, SIDE LH (BLUE/WHITE) | Includes Item(s) 28 - 29 This part replaces 94440-40C01-9SR.

94440-40C00-9SR

Unavailable

28

EMBLEM

68112-43400-22R

Unavailable

29

TAPE, SIDE LH

68695-40C00-39K

Unavailable

30

SCREW, COVER UPPER

09139-05032

$1.89

31

WASHER

09161-05017

$3.18

32

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

33

SCREW

09139-06027

$2.16

34

WASHER

09161-06021

$2.83

35

CUSHION, COVER

94570-04A00

$21.91

36

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

37

COWLING, UNDER RH (BLUE/WHITE | CLEAR COATING

94470-40C50-2GZ

Unavailable

37

COWLING, UNDER RH (BLUE/WHITE | Includes Item(s) 38 This part replaces 94470-40C51-2GZ.

94470-40C50-2GZ

Unavailable

38

EMBLEM

68191-06B00-2GR

Unavailable

39

COWLING, UNDER LH (BLUE/WHITE | CLEAR COATING

94480-40C50-2GZ

Unavailable

39

COWLING, UNDER LH (BLUE/WHITE | Includes Item(s) 40 This part replaces 94480-40C51-2GZ.

94480-40C50-2GZ

Unavailable

40

EMBLEM

68191-06B00-2GR

Unavailable

41

NO DESCRIPTION AVAILABLE This part replaces 94498-17C00-22R.

94498-17C02-019

Unavailable

41

NO DESCRIPTION AVAILABLE This part replaces 94498-17C01.

94498-17C02-019

Unavailable

42

SCREW, UNDER UPPER

09139-05032

$1.89

43

WASHER

09161-05017

$3.18

44

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

45

SCREW, UNDER LOWER

09139-06028

$3.70

46

WASHER

09160-06056

$1.72

47

SPACER This part replaces 09180-06152.

09180-06262

$2.55

48

CUSHION

09320-09016

$1.97

49

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

50

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

51

BRACE, LOWER

94493-06B00

Unavailable

52

SCREW

09139-06039

$2.19

53

WASHER

09161-06021

$2.83

54

BRACE, LOWER FRONT

94490-06B00

Unavailable

55

SCREW

09139-05025

$2.05

56

NUT This part replaces 08316-26055.

08316-2005A

$2.19

57

SCREW

09139-06030

$3.70

58

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

58

LABEL,WARNING S This part replaces 68613-40C11.

68613-21E11

$7.02
