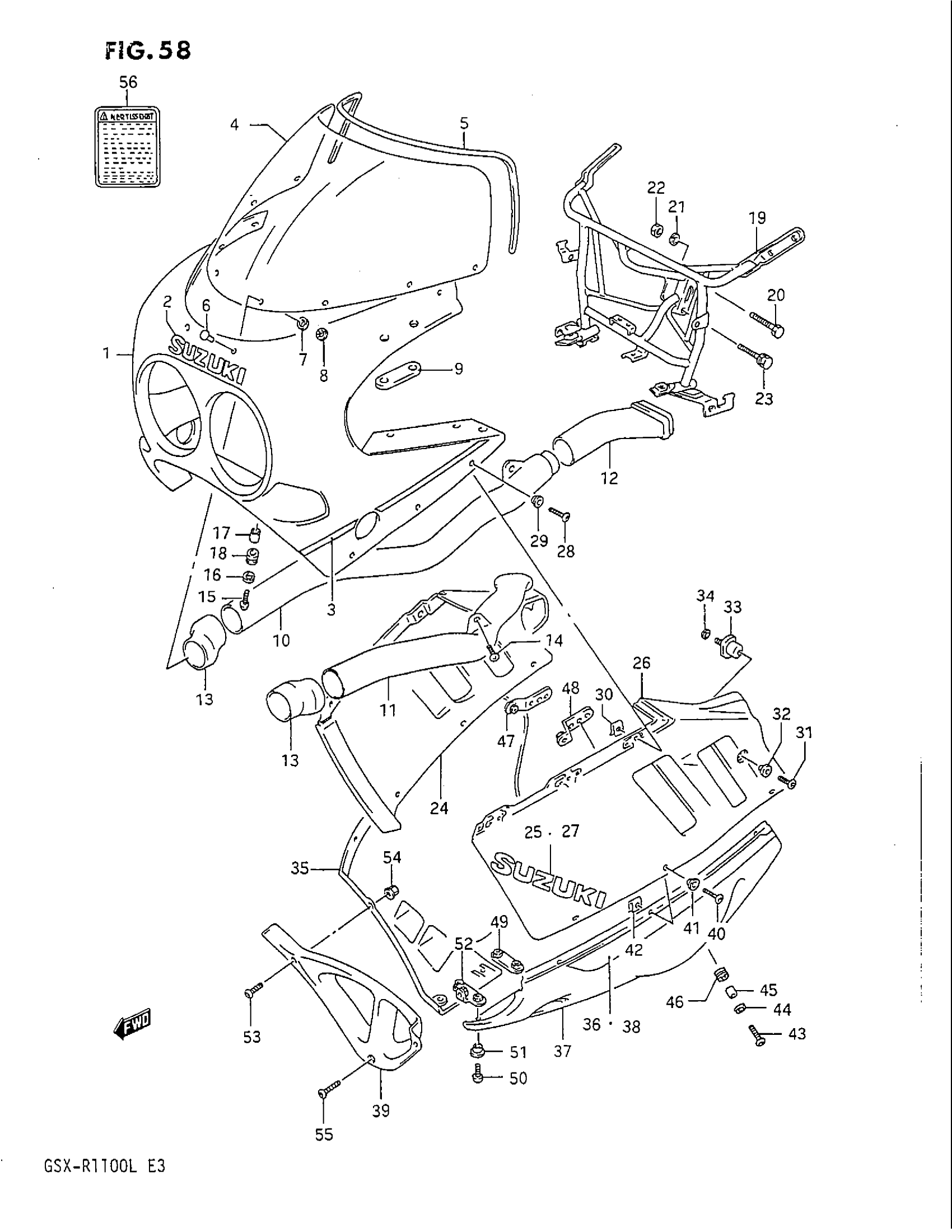

Suzuki GSX-R1100 (1990) COWLING (MODEL K 3CG) Diagram

#

Description
Price

1

BODY ASSY, COWLING | CLEAR COATING

94400-40C41-3CG

Unavailable

1

BODY ASSY, COWLING | Includes Item(s) 2 - 3 This part replaces 94400-40C42-3CG.

94400-40C41-3CG

Unavailable

2

EMBLEM

68185-05C10-742

Unavailable

3

TAPE SET

68270-40C20-33J

Unavailable

4

SCREEN SET, WIND | Includes Item(s) 5

94610-40C00

Unavailable

5

MOLDING This part replaces 94631-40C00.

94631-44110

$36.85

6

PIN, WIND SCREEN (4X13) This part replaces 94616-40C01.

94616-10D00

$2.96

7

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

8

NUT

09148-04032

$2.17

9

CUSHION, MIRROR

94576-12C00

Unavailable

10

PIPE, AIR INTAKE FRONT RH

94451-40C00

Unavailable

11

PIPE, AIR INTAKE FRONT LH

94452-40C00

Unavailable

12

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

13

JOINT, AIR INTAKE

94454-40C00

Unavailable

14

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

15

SCREW, BODY FRONT

09139-06056

$3.23

16

WASHER

09160-06056

$1.72

17

SPACER This part replaces 09180-06152.

09180-06262

$2.55

18

CUSHION

09320-09016

$1.97

19

NO DESCRIPTION AVAILABLE This part replaces 94510-40C02.

94510-40C13

Unavailable

20

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

21

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

22

NUT This part replaces 08310-12085.

08310-0008A

$1.84

23

BOLT This part replaces 01137-08355.

01570-0835A

$3.16

24

COVER, SIDE RH (BLACK/GRAY) | CLEAR COATING

94430-40C21-3CG

Unavailable

24

COVER, SIDE RH (BLACK/GRAY) | Includes Item(s) 25 This part replaces 94430-40C22-3CG.

94430-40C21-3CG

Unavailable

25

EMBLEM

68681-17C00-742

Unavailable

26

COVER, SIDE LH (BLACK/GRAY) | CLEAR COATING

94440-40C21-3CG

Unavailable

26

COVER, SIDE LH (BLACK/GRAY) | Includes Item(s) 27 This part replaces 94440-40C22-3CG.

94440-40C21-3CG

Unavailable

27

EMBLEM

68681-17C00-742

Unavailable

28

SCREW, COVER UPPER

09139-05032

$1.89

29

WASHER

09161-05017

$3.18

30

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

31

SCREW

09139-06027

$2.16

32

WASHER

09161-06021

$2.83

33

CUSHION, COVER

94570-04A00

$21.91

34

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

35

COWLING, UNDER RH | CLEAR COATING

94470-40C60-3CH

Unavailable

35

COWLING, UNDER RH | Includes Item(s) 36 This part replaces 94470-40C61-3CH.

94470-40C60-3CH

Unavailable

36

TAPE, RH

68185-40C10-17U

Unavailable

37

COWLING, UNDER LH | CLEAR COATING

94480-40C60-3CH

Unavailable

37

COWLING, UNDER LH | Includes Item(s) 38 This part replaces 94480-40C61-3CH.

94480-40C60-3CH

Unavailable

38

TAPE, LH

68195-40C10-17U

Unavailable

39

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94498-17C00-33J.

94498-17C02-019

Unavailable

39

NO DESCRIPTION AVAILABLE This part replaces 94498-17C01.

94498-17C02-019

Unavailable

40

SCREW, UNDER UPPER

09139-05032

$1.89

41

WASHER

09161-05017

$3.18

42

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

43

SCREW, UNDER LOWER

09139-06028

$3.70

44

WASHER

09160-06056

$1.72

45

SPACER This part replaces 09180-06152.

09180-06262

$2.55

46

CUSHION

09320-09016

$1.97

47

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

48

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

49

BRACE, LOWER

94493-06B00

Unavailable

50

SCREW

09139-06039

$2.19

51

WASHER

09161-06021

$2.83

52

BRACE, LOWER FRONT

94490-06B00

Unavailable

53

SCREW

09139-05025

$2.05

54

NUT This part replaces 08316-26055.

08316-2005A

$2.19

55

SCREW

09139-06030

$3.70

56

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

56

LABEL,WARNING S This part replaces 68613-40C11.

68613-21E11

$7.02
