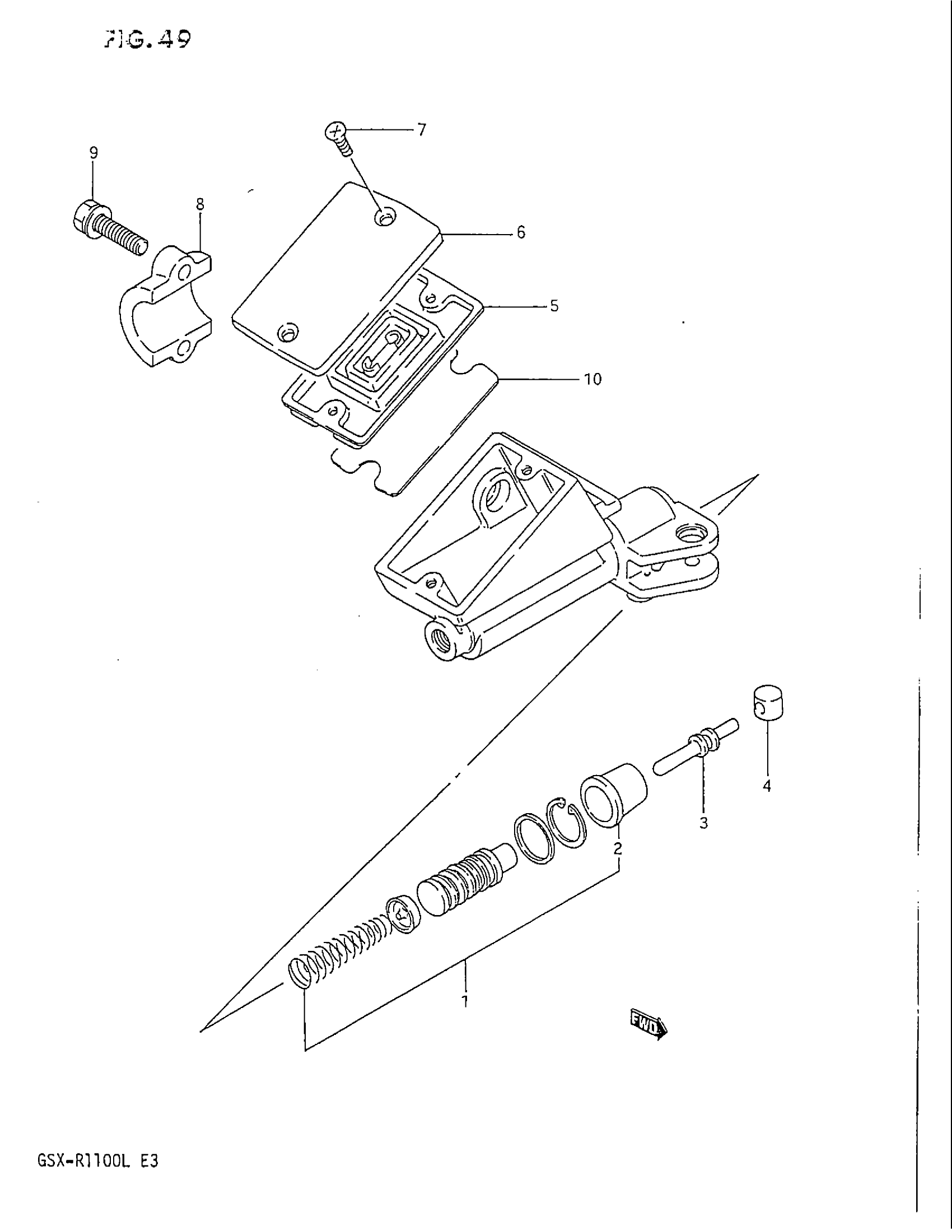

Suzuki GSX-R1100 (1990) CLUTCH MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, CLUTCH MASTER | MODEL K,TO 59800-40C11 This part replaces 59800-40C10.

59800-40C12

Unavailable

CYLINDER ASSY, CLUTCH MASTER | MODEL L; Includes Item(s) 1 - 10 This part replaces 59800-40C11.

59800-40C12

Unavailable

1

PISTON & CUP SET

59800-08810

$39.48

2

BOOT

59666-44300

$5.80

3

PUSH ROD

59871-08A00

Unavailable

4

BUSH

59892-08A00

$5.05

5

DIAPHRAGM

59667-49460

$9.78

6

CAP | MODEL K

59669-24A00

Unavailable

6

CAP | MODEL L This part replaces 59669-24A01.

59669-24A00

Unavailable

7

SCREW

69689-49300

$1.91

8

HOLDER

59671-19B00

$20.07

9

BOLT HOLDER SET This part replaces 59675-17C00.

59675-19C00

$4.02

10

FLOAT

59664-05C00

Unavailable
