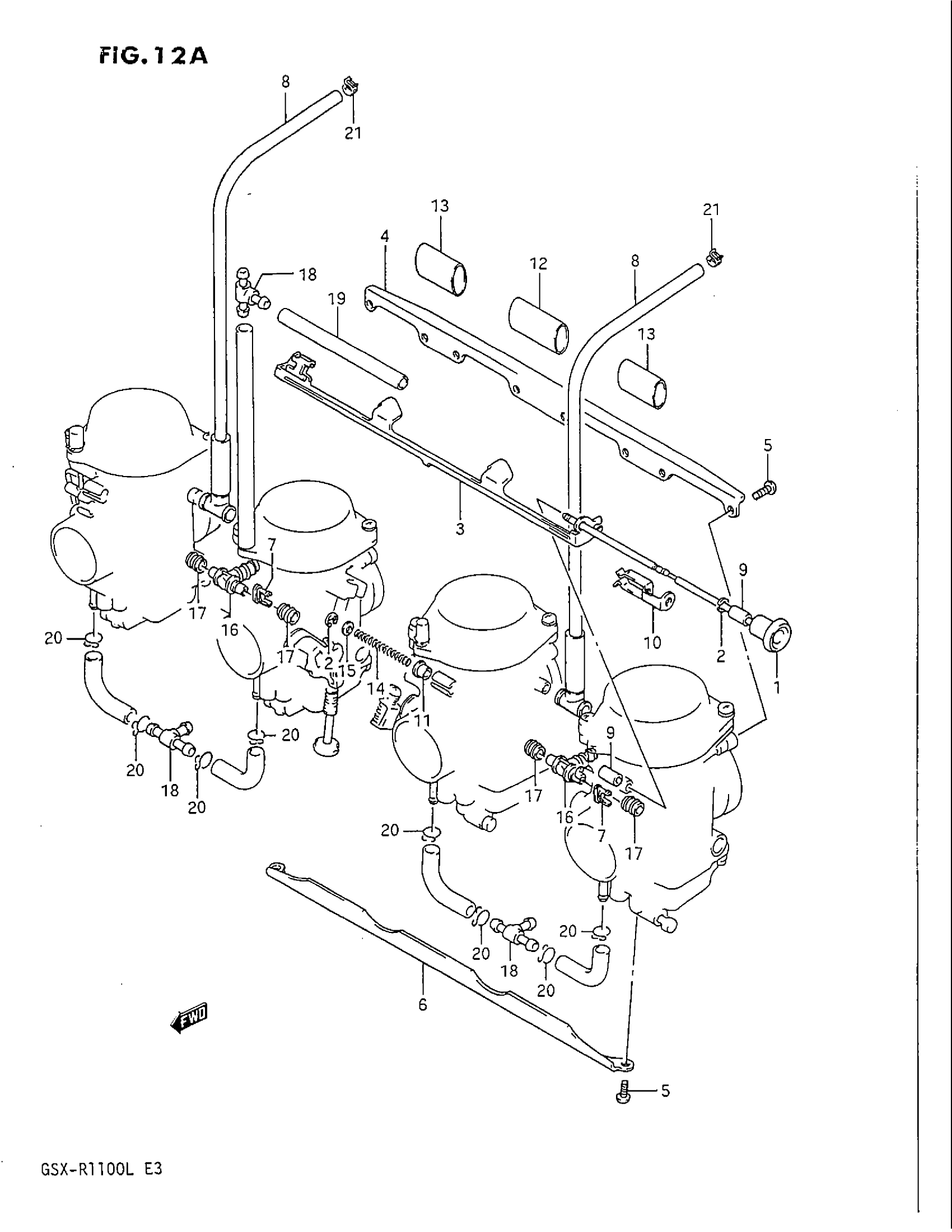

Suzuki GSX-R1100 (1990) CARBURETOR FITTINGS Diagram

#

Description
Price

1

SHAFT, STARTER

13410-17C00

Unavailable

2

E RING

13415-38300

$2.08

3

LEVER

13413-17C00

Unavailable

4

PLATE

13628-17C10

Unavailable

5

SCREW This part replaces 13602-05128.

02112-05127

$1.97

6

PLATE

13628-17C00

Unavailable

7

HOLDER

13439-17C00

$10.62

8

HOSE | LH,L:625->250RH,L:625->350CALIFORNIA ONLYLH,L:625->475RH,L:625 This part replaces 13683-17C30.

13683-17C31

$16.65

9

SPACER

13432-17C00

Unavailable

10

PLATE

13421-17C00

Unavailable

11

RING

13557-05A10

$5.53

12

HOSE This part replaces 13684-17C00.

13684-43440

Unavailable

13

HOSE This part replaces 13684-17C10.

13684-43440

Unavailable

14

SPRING

13417-09210

Unavailable

15

WASHER This part replaces 13606-02340.

08322-0104A

$1.91

16

NIPPLE

13685-44B00

$11.37

17

SEAL

13673-44B00

$4.60

18

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

19

.HOSE | CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$7.48

20

CLIP | CALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

21

CLIP (ID:10.5,H:8) | CALIFORNIA ONLY

09401-10409

$2.26
