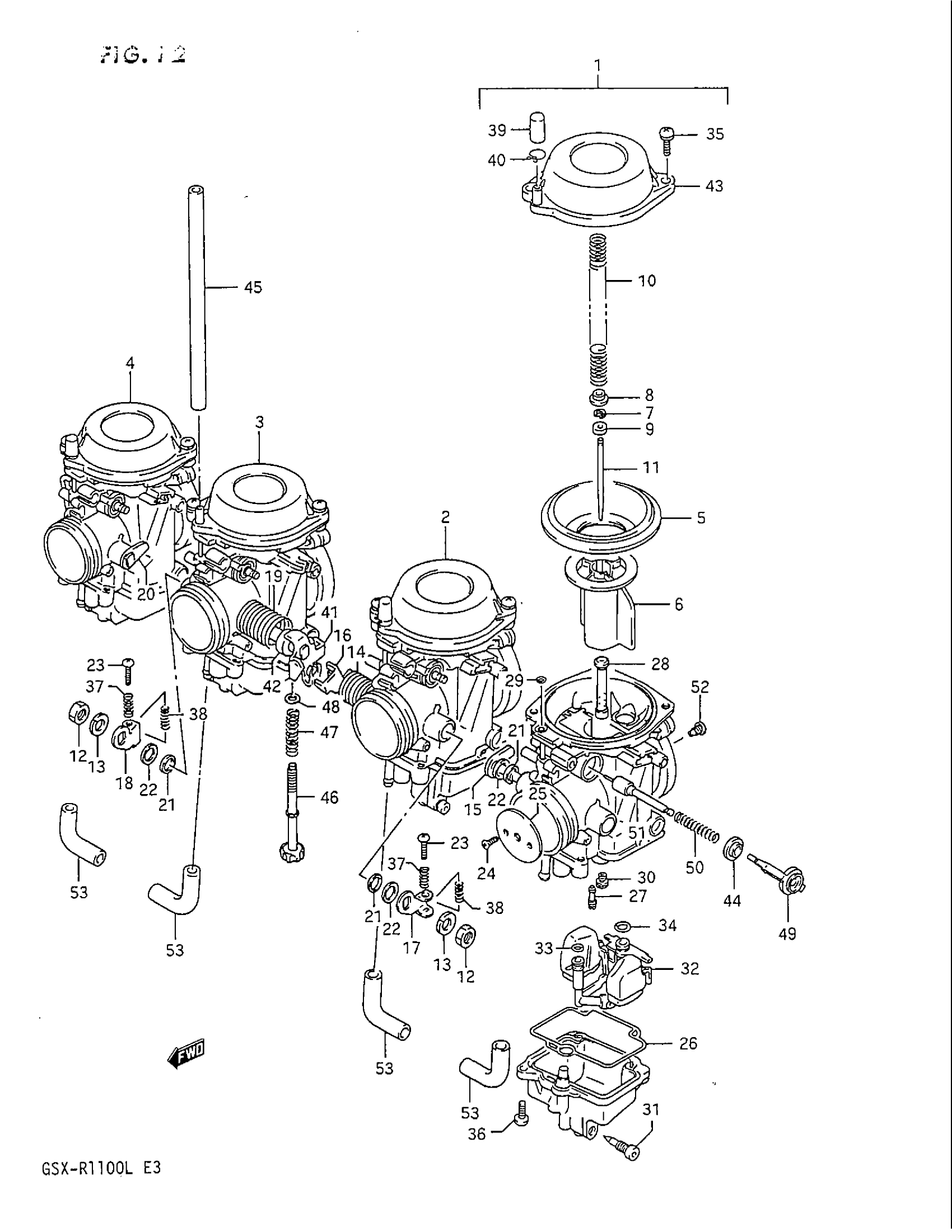

Suzuki GSX-R1100 (1990) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-40C10

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-40C20

Unavailable

2

CARBURETOR ASSY, ML

13202-40C10

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-40C20

Unavailable

3

CARBURETOR ASSY, MR

13203-40C10

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-40C20

Unavailable

4

CARBURETOR ASSY, RH

13204-40C10

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY; Includes Item(s) 5 - 53

13204-40C20

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$29.60

6

VALVE, PISTON

13501-17C00

Unavailable

7

E RING

13394-10010

$5.45

8

RING

13382-42A00

$4.48

9

RING

13387-47010

$7.22

10

SPRING

13417-42A00

$6.79

11

NEEDLE, JET (5D42-1)

13383-40C20

Unavailable

11

NEEDLE, JET (5D43-1) | CALIFORINA ONLY

13383-40C30

Unavailable

12

NUT | ML,MR

08310-21086

Unavailable

13

LOCK WASHER | ML,MR This part replaces 08321-31086.

08321-0108A

$1.84

14

SPRING | ML

13573-17C00

Unavailable

15

SHAFT ASSY | LH

13550-17C00

Unavailable

16

SHAFT ASSY | ML

13550-17C10

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-17C10

Unavailable

20

SHAFT ASSY | RH

13550-17C30

Unavailable

21

SEAL | LH,RH:1,ML:MR:2

13556-44B00

$4.43

22

WASHER

13557-47070

$3.59

23

SCREW | ML:2,MR:1

13267-44B00

$4.10

24

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

25

VALVE, THROTTLE (125)

13551-17C00

Unavailable

26

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

27

JET, PILOT (30)

09492-30010

$18.42

28

JET, NEEDLE (O-8)

09494-00638

$42.53

29

O RING

13509-17C00

$4.34

30

JET, MAIN (122.5)

09491-24013

$11.38

31

SCREW, DRAIN This part replaces 13247-38B00.

13247-02340

$4.99

32

FLOAT/NEEDLE VALVE ASSY

13250-40C00

Unavailable

33

.O RING

13374-46710

$4.48

34

O RING This part replaces 13374-44080.

13374-35C00

$5.99

35

SCREW This part replaces 13602-34390.

02112-7516A

$2.41

36

SCREW This part replaces 13602-05128.

02112-05127

$1.97

37

SPRING | ML:2,MR:1

13271-44B00

$3.89

38

SPRING | ML;2,MR:1

13268-17C10

$6.19

39

CAP | LH,ML,RH

13508-17C00

$4.74

40

CLIP | LH,ML,RH This part replaces 13671-33600.

13671-05A40

$3.71

41

SHAFT ASSY | MR

13550-17C20

Unavailable

42

RING | MR

13574-28A00

$4.13

43

COVER, DIAPHRAGM

13502-17C00

Unavailable

44

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

45

.HOSE | MRMR CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$7.48

46

ADJUSTER | MR This part replaces 13267-28A00.

13267-14D10

$24.60

47

SPRING | MR This part replaces 13268-43410.

13375-14D10

$7.05

48

WASHER | MR

13427-38300

$1.92

49

HOLDER

13418-17C10

$13.90

50

SPRING

13417-09110

$6.30

51

PLUNGER ASSY

13411-05320

$26.80

52

JET, AIR (1.35)

09493-27002

$16.87

52

JET, AIR (1.2) | CALIFORNIA ONLY

09493-24007

$16.15

53

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96
