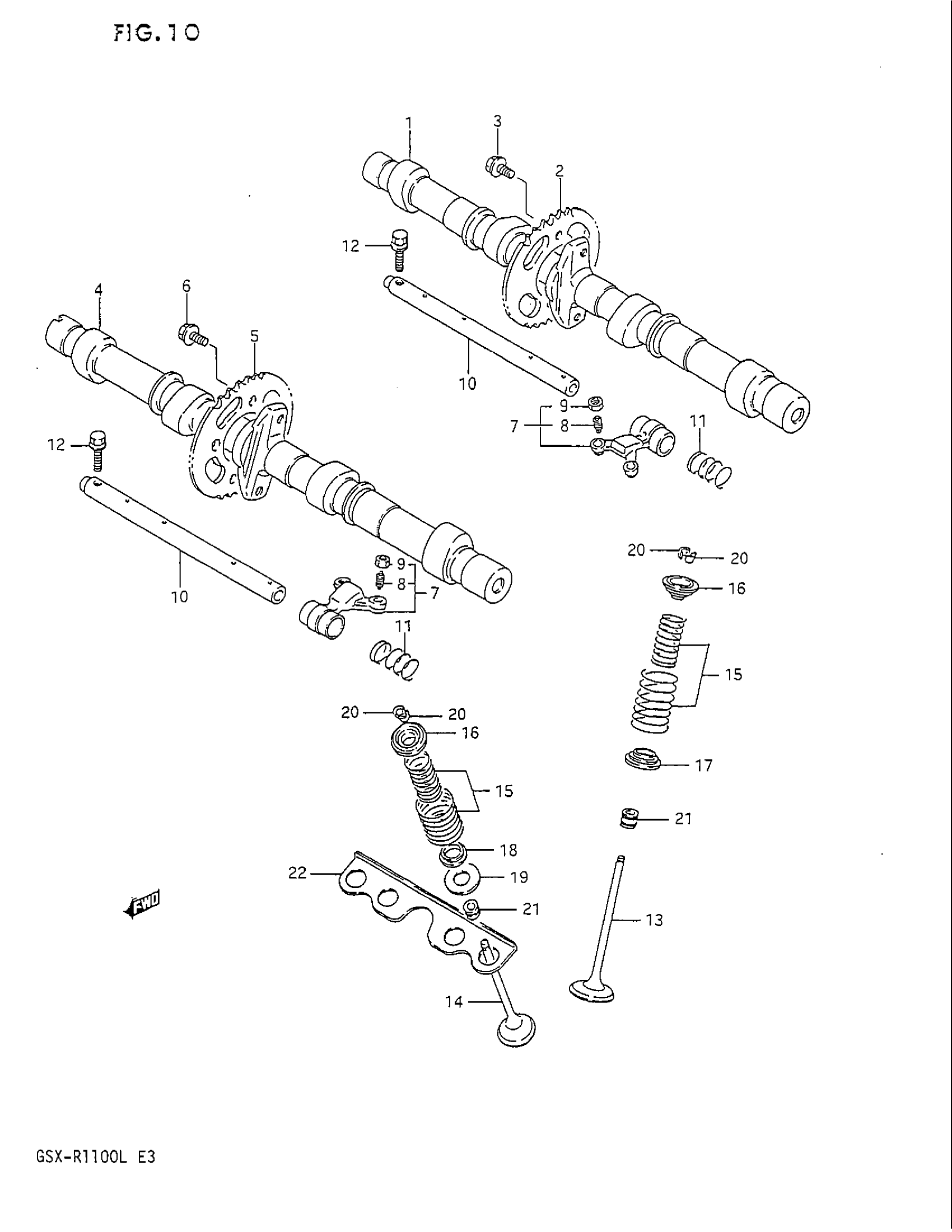

Suzuki GSX-R1100 (1990) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-06B03.

12711-06B90

Unavailable

2

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

3

BOLT

09103-07001

$2.51

4

CAMSHAFT,EXHAUS This part replaces 12721-17C00.

12721-17C90

Unavailable

5

SPROCKET, CAM SHAFT

12741-06B00

Unavailable

6

BOLT

09103-07001

$2.51

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-27A00.

12840-27A01

$86.55

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$7.48

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.80

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.67

12

BOLT This part replaces 01717-06306.

01550-0630A

$2.31

13

VALVE, INTAKE

12911-06B02

$53.58

14

VALVE, EXHAUST

12912-06B00

Unavailable

15

SPRING SET, VALVE

12920-06B00

$13.02

16

RETAINER, SPRING

12931-27A01

$9.50

17

SEAT,VALVE SPRING This part replaces 12933-27A00.

12933-81400

$4.86

18

SEAT, SPRING EXHAUST This part replaces 12934-27A00.

12934-27A01

$3.92

19

SEAT, EXHAUST OUTER

12935-27A00

$3.67

20

COTTER, VALVE

12932-27A00

$2.20

21

OIL SEAL

09289-05011

$5.70

22

PLATE This part replaces 11137-27A01.

11137-27A02

Unavailable
