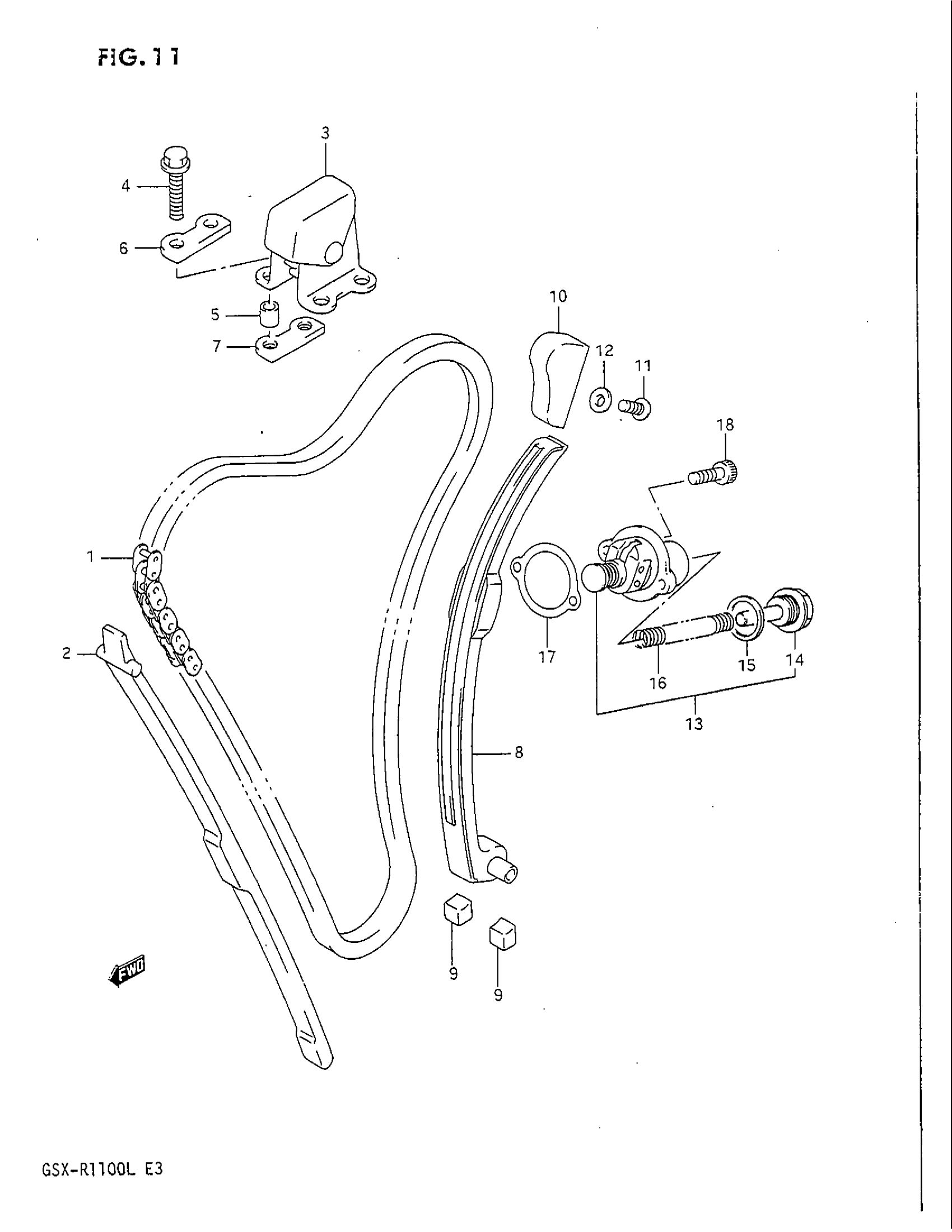

Suzuki GSX-R1100 (1990) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT This part replaces 12760-40C00.

12760-40C01

$142.74

2

GUIDE, CAM CHAIN NO.1

12771-06B01

Unavailable

3

IDLER, CAM CHAIN

12780-40C00

Unavailable

4

BOLT This part replaces 01517-06307.

01550-06307

$2.69

5

SPACER This part replaces 09180-06167.

09180-06286

$2.50

6

CUSHION (T:5.2)

12788-48B01

Unavailable

7

CUSHION (T:8.6)

12788-48B11

Unavailable

8

TENSIONER,CAM C This part replaces 12810-40C00.

12810-40C01

Unavailable

9

CUSHION

12814-34200

$5.58

10

GUIDE, CAM CHAIN NO.2

12791-06B01

Unavailable

11

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

12

WASHER

09168-06023

$2.35

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 16 This part replaces 12830-48B02.

12830-48B03

Unavailable

14

PLUG

12834-27A00

Unavailable

15

GASKET

12832-27A00

$6.91

16

SPRING

12833-06B00

Unavailable

17

GASKET This part replaces 12837-27A00.

12837-27A10

$3.85

18

BOLT This part replaces 07110-06255.

07130-0625B

$3.04
