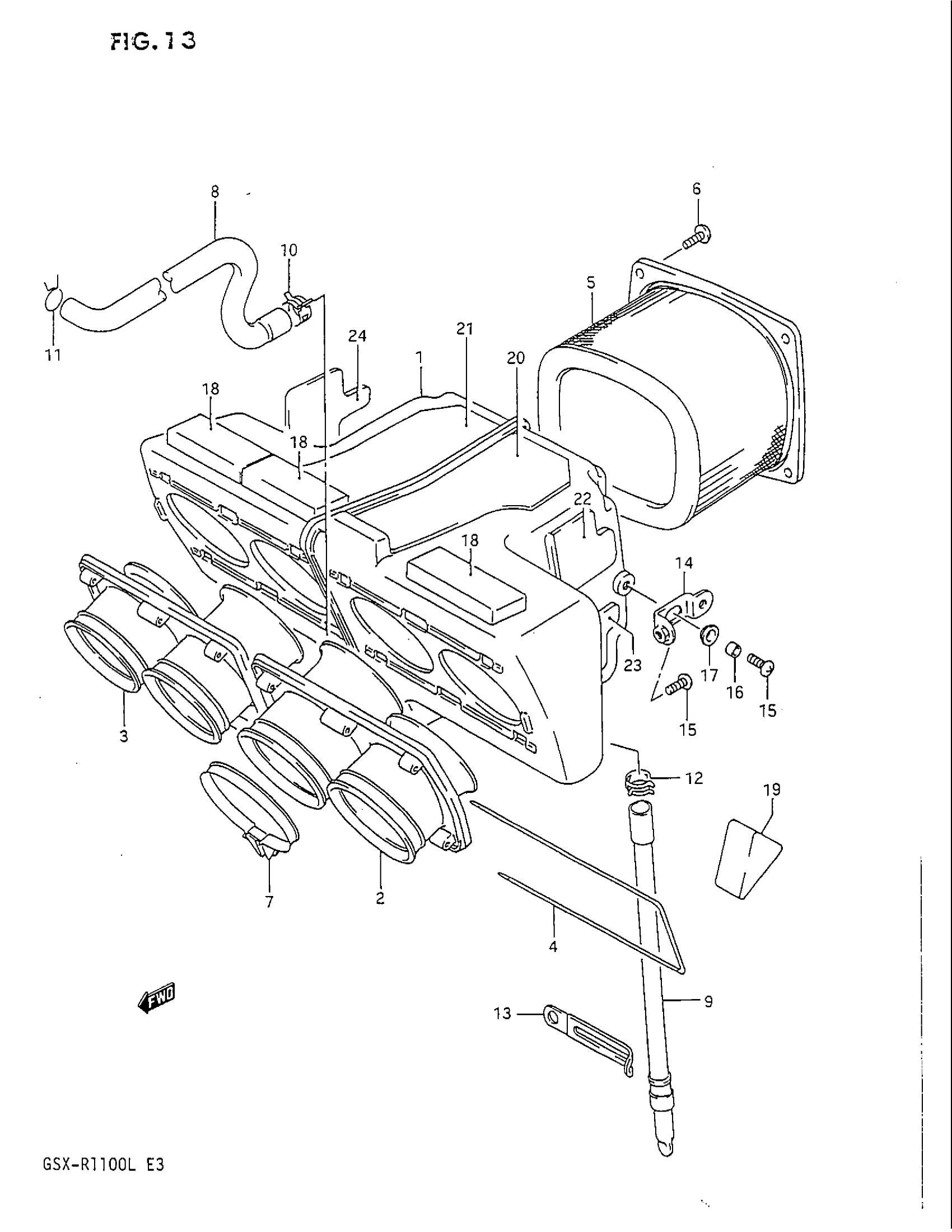

Suzuki GSX-R1100 (1990) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13720-17C00.

13720-17C10

Unavailable

2

TUBE, OUTLET,LH

13880-17C00

Unavailable

3

TUBE, OUTLET,RH

13890-17C00

Unavailable

4

SHAFT, OUTLET TUBE This part replaces 13899-17C00.

13899-17C01

Unavailable

5

FILTER

13780-17C00

$52.60

6

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

7

CLAMP

09402-66208

$5.57

8

TUBE, BREATHER

13854-40C00

Unavailable

9

TUBE,DRAIN This part replaces 13870-11417.

13870-11459

$15.51

10

CLAMP This part replaces 09401-13406.

09401-13404

Unavailable

11

CLIP This part replaces 13824-48B10.

09401-16401

$3.14

12

CLIP This part replaces 09401-16402.

09401-16403

$2.83

13

CLAMP This part replaces 09404-10404.

09404-10417

$2.72

14

BRACKET, CLEANER CASE

13760-17C01

Unavailable

15

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

16

SPACER (6.5X9X3.8) This part replaces 09180-06142.

09180-06255

$2.53

17

CUSHION, OUTER This part replaces 09161-09003.

09161-09006

$2.36

18

CUSHION, CASE

13848-17C00

Unavailable

19

CUSHION, AIR VENT HOSE, NO.1

13897-17C00

Unavailable

20

SHEET, NO.1

13842-17C10

Unavailable

21

SHEET, NO.2

13843-17C10

Unavailable

22

SHEET, NO.3

13844-17C10

Unavailable

23

SHEET, NO.4

13845-17C10

Unavailable

24

SHEET, NO.5

13846-17C10

Unavailable
