1988 Suzuki GSX-R1100 Steering Stem Diagram

← All diagrams

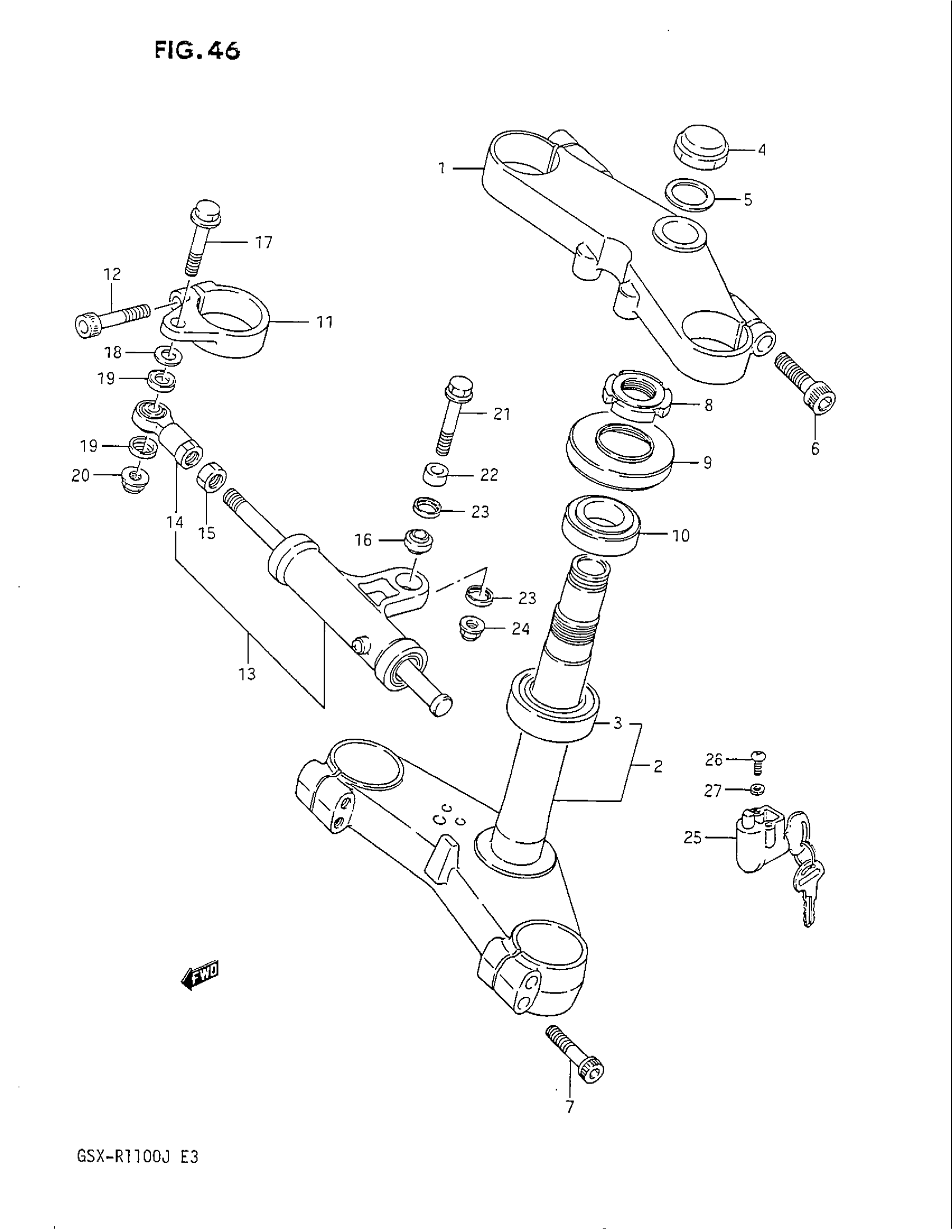

Find the part on the Steering Stem diagram for your 1988 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GSX-R1100 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, STEERING STEM (BLACK)

51311-06B00-291

1
Out of stock

2

STEM, STEERING | Includes Item(s) 3

51410-06B10

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

NUT | MODEL G This part replaces 51353-27A00.

51353-28A10

1
Out of stock

4

NUT | MODEL H/J This part replaces 51353-27A80.

51353-28A10

1
Out of stock

5

WASHER, STEM This part replaces 51356-27A00.

51356-24B01

1
Out of stock

6

BOLT, UPPER

51352-00A00

2
Out of stock

7

BOLT This part replaces 07110-08408.

07130-08407

4
Out of stock

8

NUT, STEERING STEM

51631-28000

1
Out of stock

9

DUST SEAL This part replaces 09285-34006.

09285-34013

1
Out of stock

10

BEARING

09265-25008

1
Out of stock

11

BRACKET, STEERING DAMPER | MODEL G/H This part replaces 51756-27A30.

51756-27A31

1
Out of stock

11

BRACKET, STEERING DAMPER | MODEL J

51756-27A31

1
Out of stock

12

BOLT This part replaces 07110-08408.

07130-08407

1
Out of stock

13

DAMPER ASSY, , STEERING | MODEL G This part replaces 51750-27A40.

51750-46E00

1
Out of stock

13

DAMPER ASSY, , STEERING | MODEL H/J; Includes Item(s) 14 - 16 This part replaces 51750-27A50.

51750-46E00

1
Out of stock

14

END, LOD This part replaces 51754-27A31.

51760-40C01

1
Out of stock

15

NUT This part replaces 08310-11108.

08310-00107

1
Out of stock

16

BEARING

09269-08002

1
Out of stock

17

BOLT, OUTER

09103-08107

1
Out of stock

18

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

19

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

2
Out of stock

20

NUT

08319-31087

1
Out of stock

21

BOLT, INNER

09103-08043

1
Out of stock

22

SPACER, DAMPER

09180-08132

1
Out of stock

23

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

2
Out of stock

24

NUT

08319-31087

1
Out of stock

25

LOCK ASSY, STEERING

51900-08014-KEY

1
Out of stock

26

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

27

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock
