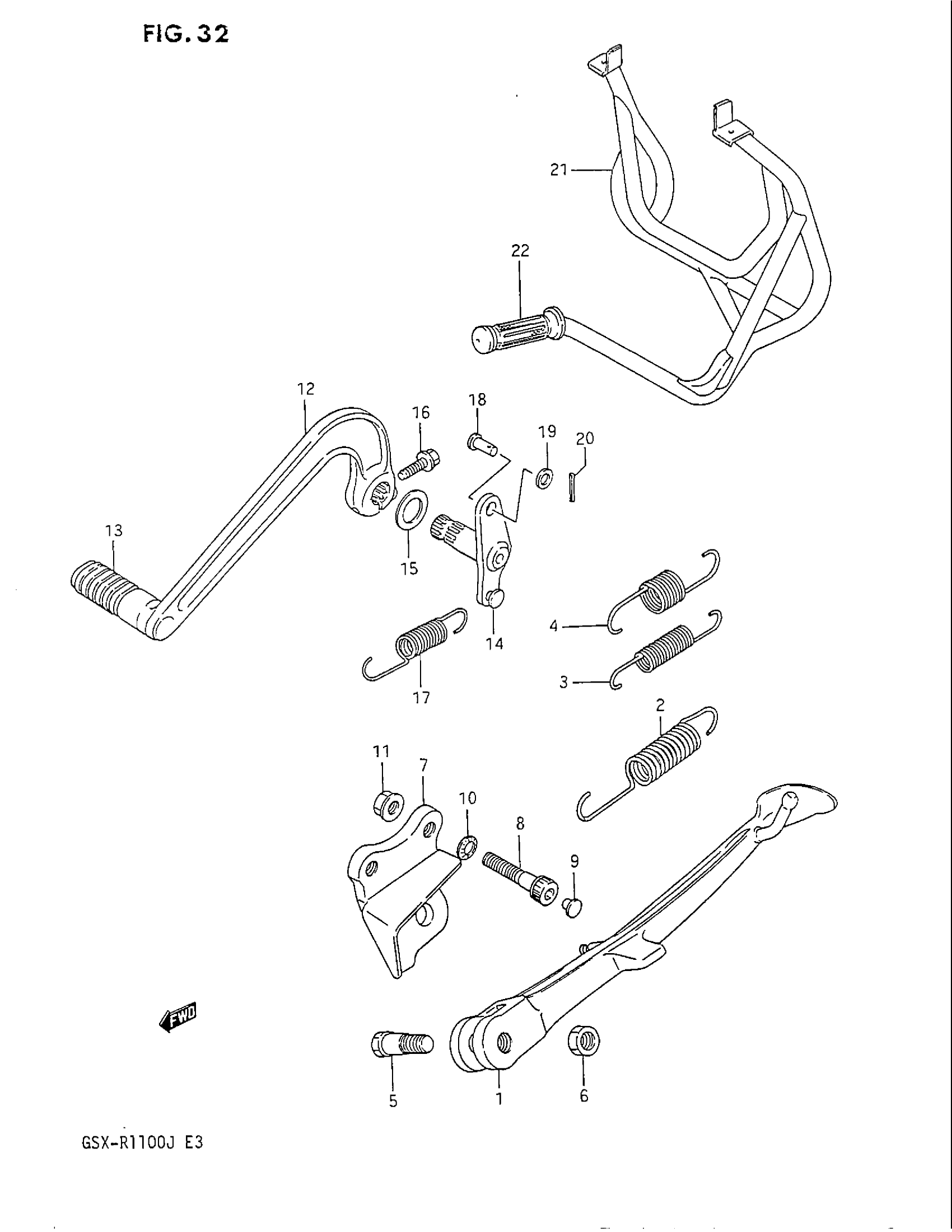

Find the part on the Stand diagram for your 1988 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GSX-R1100 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (SILVER)

42310-06B00-13L

1
Out of stock

2

SPRING | MODEL G This part replaces 09443-14040.

09443-14040-XC0

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 09443-14038.

09443-14038-XC0

1
Out of stock

4

SPRING, OUTER | MODEL H/J

09443-22006

1
Out of stock

5

BOLT

09111-10036

1
Out of stock

6

NUT This part replaces 08310-22107.

08310-00107

1
Out of stock

7

BRACKET, PROP STAND (SILVER) | MODEL G This part replaces 42330-06B01-13L.

42330-06B20

1
Out of stock

7

BRACKET, PROP STAND (SILVER) | MODEL H/J

42330-06B20

1
Out of stock

8

BOLT This part replaces 07110-08358.

07130-08357

2
Out of stock

9

CAP

41575-04A00

2
Out of stock

10

WASHER

09164-08015

2
Out of stock

11

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

12

PEDAL COMP BRAK | MODEL G/H This part replaces 43110-27A01.

43110-05C03

1
Out of stock

12

PEDAL COMP BRAK | MODEL J This part replaces 43110-27A30.

43110-05C03

1
Out of stock

13

RUBBER, BRAKE PEDAL

43151-04701

1
Out of stock

14

ARM, BRAKE ROD

43120-27A00

1
Out of stock

15

WASHER

43212-04A00

1
Out of stock

16

BOLT | MODEL G/H

09103-06119

1
Out of stock

16

BOLT | MODEL J This part replaces 09103-06072.

01550-0625B

1
Out of stock

17

SPRING This part replaces 09443-14044.

09443-14044-XC0

1
Out of stock

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

1
Out of stock

19

WASHER This part replaces 08322-21067.

08322-01067

1
Out of stock

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

21

STAND ASSY, REAR | OPT; Includes Item(s) 22

42100-27A00

—
Out of stock

22

GRIP | OPT

57211-49510

1
Out of stock
