1988 Suzuki GSX-R1100 Handle Switch Diagram

← All diagrams

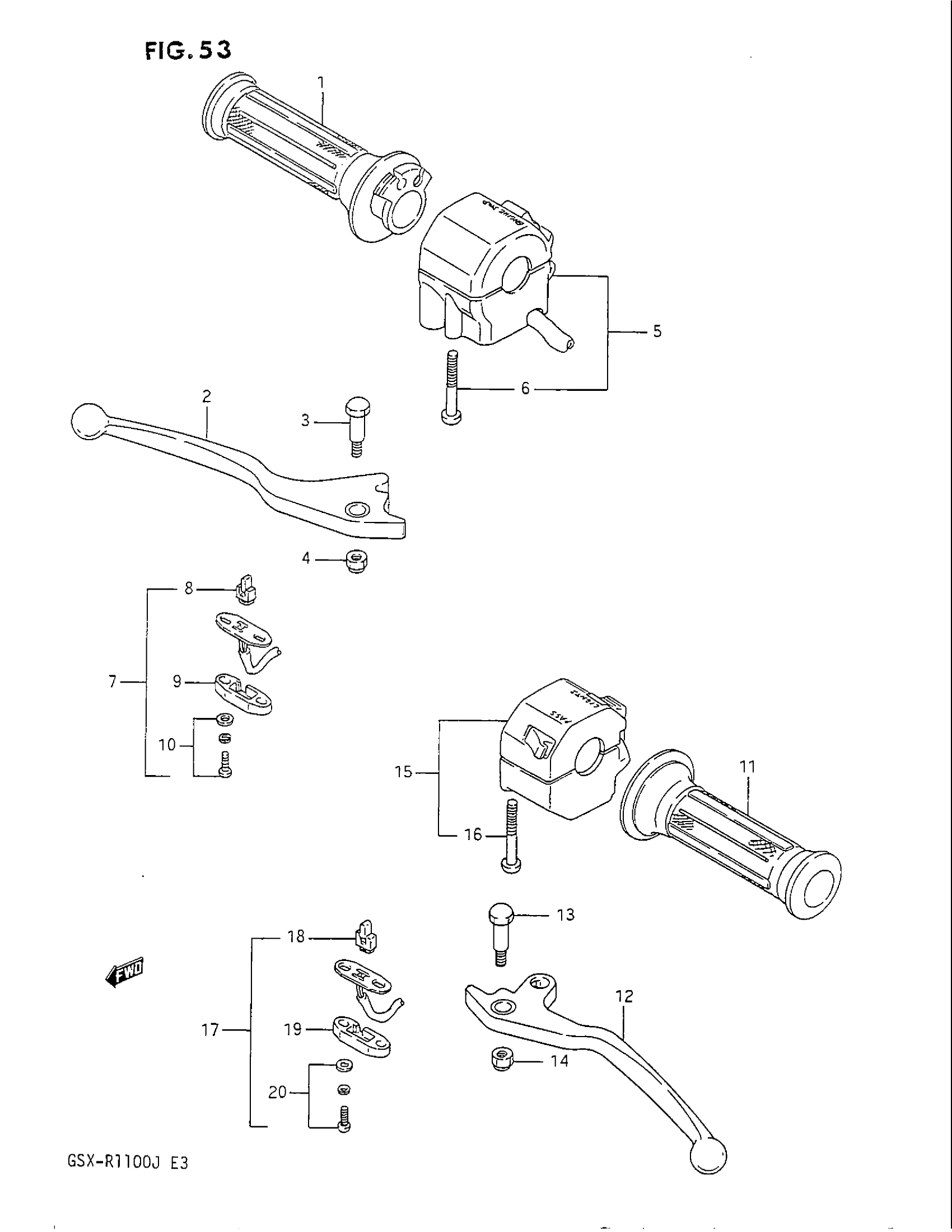

Find the part on the Handle Switch diagram for your 1988 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GSX-R1100 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE This part replaces 57110-49500.

57110-49501

1
Out of stock

2

LEVER, BRAKE This part replaces 57420-05A10.

57420-38B00

1
Out of stock

3

BOLT

57431-05A00

1
Out of stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 37200-06B20.

37200-06B21

1
Out of stock

5

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 6 This part replaces 37200-47B30.

37200-28A31

1
Out of stock

6

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

7

SWITCH ASSY, STOP | Includes Item(s) 8 - 10

57460-33700

1
Out of stock

8

HOLDER

57465-18601

1
Out of stock

9

COVER

57481-33010

1
Out of stock

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

11

GRIP, LH

57211-49500

1
Out of stock

12

LEVER, CLUTCH This part replaces 57620-08A00.

57621-38A02

1
Out of stock

13

BOLT

57431-05A00

1
Out of stock

14

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

15

SWITCH ASSY,HAN | Includes Item(s) 16 This part replaces 37400-06B10.

37400-06B20

1
Out of stock

16

SCREW This part replaces 02112-05405.

02112-0540B

2
Out of stock

17

SWITCH ASSY, CLUTCH | Includes Item(s) 18 - 20 This part replaces 57560-08A00.

57560-18D10

1
Out of stock

18

HOLDER

57465-18601

1
Out of stock

19

COVER

57481-33010

1
Out of stock

20

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock
