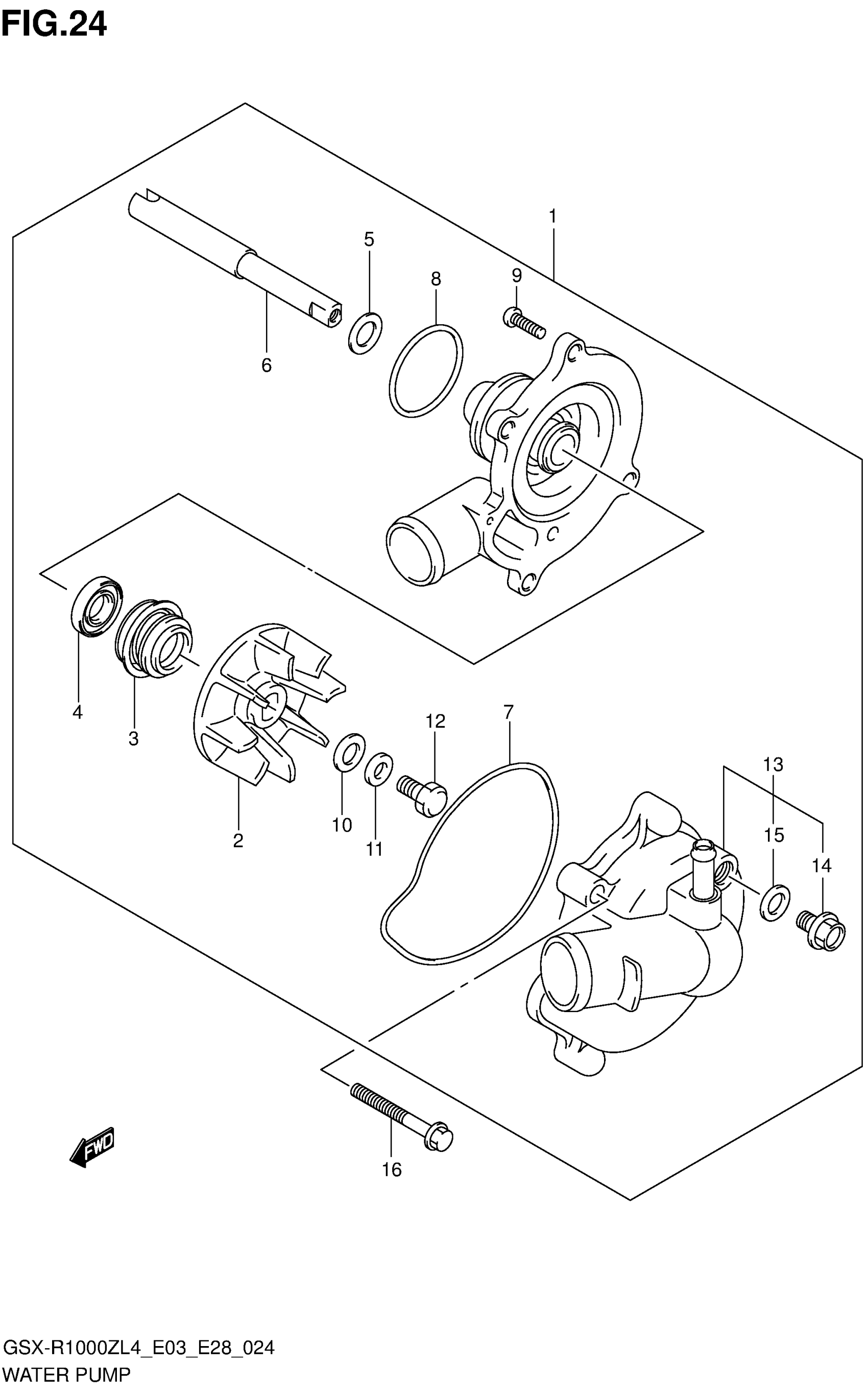

Suzuki GSX-R1000ZL4 (2014) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-47H10.

17400-47H11

$270.95

2

IMPELLER

17491-01H00

$41.50

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$27.96

4

SEAL, OIL

17461-01H00

$16.83

5

WASHER

17432-07G00

$2.74

6

SHAFT

17511-47H00

$56.82

7

.O-RING This part replaces 17418-33400.

17418-33401

$4.28

8

.O-RING

17435-33400

$14.63

9

SCREW

02112-0616A

$1.46

10

GASKET (6X15X2.2)

09168-06025

$2.80

11

WASHER

09164-06006

$2.66

12

BOLT (6X13)

09100-06099

$2.08

13

CASE

17410-47H10

Unavailable

14

.BOLT,DRAIN

17415-20920

$7.06

15

GASKET (8.2X14X1)

09168-08016

$1.70

16

BOLT

01547-0635A

$2.38
