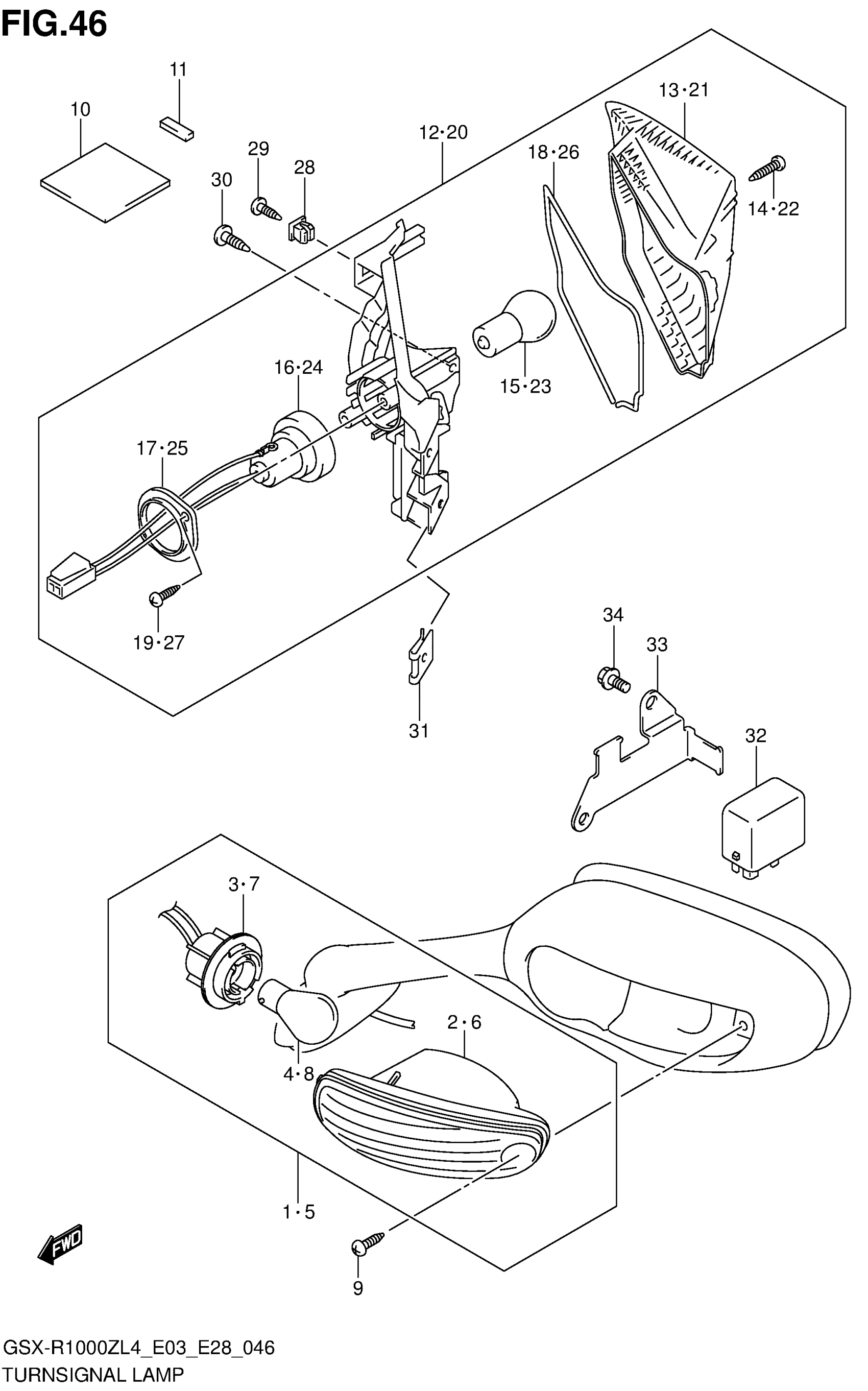

Suzuki GSX-R1000ZL4 (2014) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$57.43

2

.LAMP UNIT,R

35610-41G00

$46.37

3

.SOCKET,R

35618-10G50

$30.22

4

BULB (12V21W)

09471-12186

$12.66

5

LAMP ASSY,FR TURN SIGNAL,L

35602-41G00

$57.43

6

.LAMP UNIT,L

35630-41G00

$38.13

7

.SOCKET,L

35638-10G50

$29.10

8

BULB (12V21W)

09471-12186

$12.66

9

SCREW (4X20)

09132-04032

$1.99

10

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

11

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

12

LAMP ASSY,RR TURNSIGNAL,R

35603-47H00

$95.70

13

.LENS,R

35652-47H00

$30.15

14

SCREW

03211-0416A

$1.49

15

BULB (12V21W)

09471-12186

$12.66

16

.SOCKET & CORD,R

35658-41G00

$32.17

17

PLATE

35716-07A30

$9.90

18

GASKET

35653-47H00

$10.80

19

SCREW

03211-0412A

$2.23

20

LAMP ASSY,RR TURNSIGNAL,L

35604-47H00

$95.70

21

.LENS,L

35672-47H00

$30.15

22

SCREW

03211-0416A

$1.49

23

BULB (12V21W)

09471-12186

$12.66

24

.SOCKET & CORD,L

35678-41G00

$32.17

25

PLATE

35716-07A30

$9.90

26

GASKET

35653-47H00

$10.80

27

SCREW

03211-0412A

$2.23

28

NUT

09148-04021

$1.49

29

SCREW

03541-0412A

$1.49

30

SCREW

03541-0512A

$1.49

31

NUT

09148-05038

$1.97

32

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

33

BRACKET, RELAY

38621-37H00

Unavailable

34

BOLT

01550-0612A

$1.97
