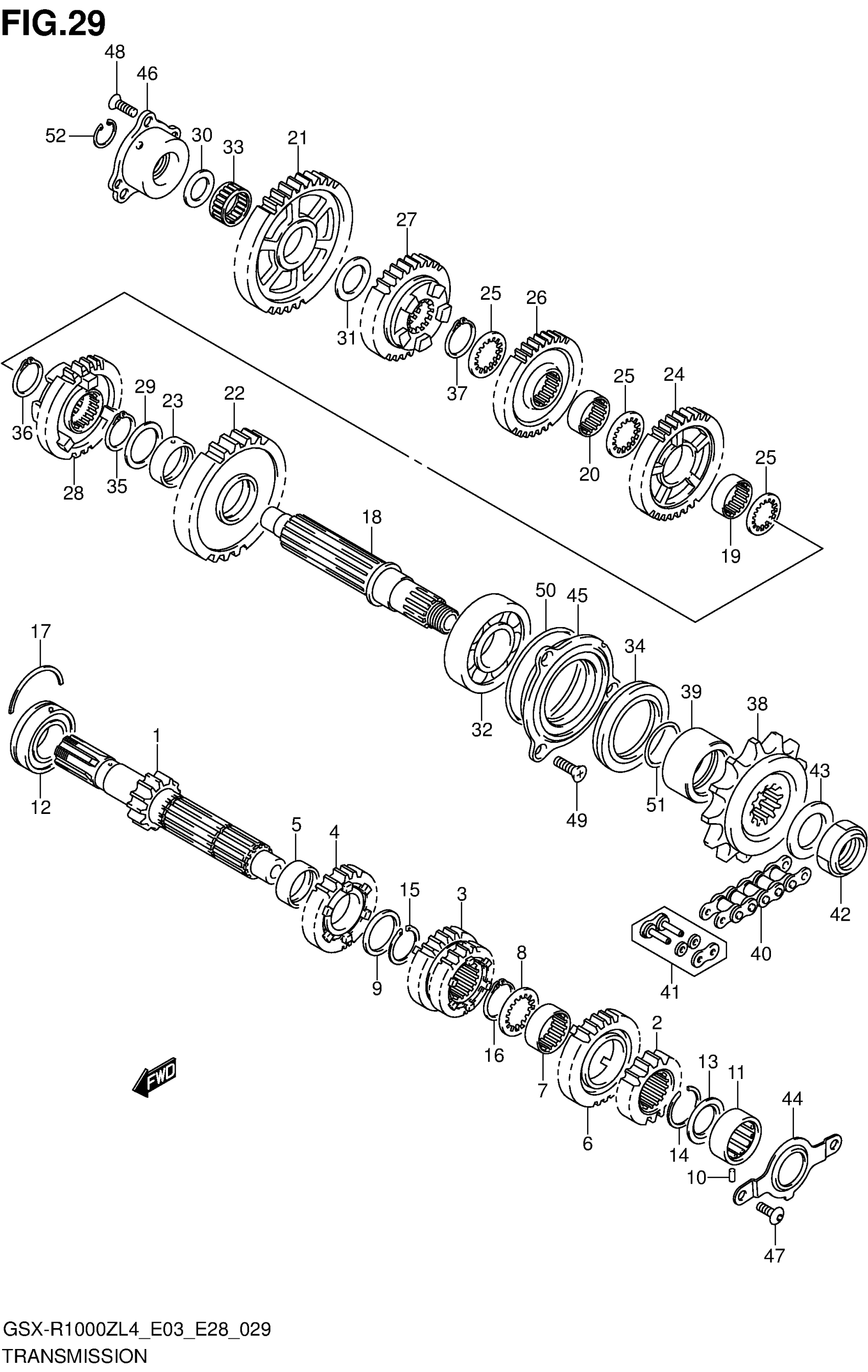

Suzuki GSX-R1000ZL4 (2014) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16) This part replaces 24120-47H10.

24120-47H11

$281.35

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

$118.08

3

GEAR, 3RD & 4TH DRIVE (NT:21/24)

24231-47H00

$211.72

4

GEAR, 5TH DRIVE (NT:25)

24251-47H00

$168.55

5

BUSH, 5TH DRIVE GEAR

24252-24F10

$35.47

6

GEAR, 6TH DRIVE (NT:26)

24261-47H00

$143.28

7

BUSH,6TH DRIVE GEAR

24262-24F20

$36.82

8

LOCK WASHER

09167-27001

$3.63

9

WASHER (27X36X1)

09160-27008

$3.68

10

PIN

04221-07129

$1.86

11

BEARING (20X34X16) | LH

09263-20103

$75.13

12

BEARING (25X52X20.6) | RH

09267-25013

$106.33

13

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

14

CIRCLIP

09380-27004

$3.70

15

CIRCLIP

09380-27006

$2.73

16

CIRCLIP

09380-27006

$2.73

17

C RING

09390-58001

$3.42

18

SHAFT, DRIVE This part replaces 24131-47H00.

24131-47H01

$256.55

19

BUSH, 3RD DRIVEN GEAR

24332-24F20

$36.82

20

BUSH, 4TH DRIVEN GEAR

24332-24F20

$36.82

21

GEAR,1ST DRIVEN (NT:41)

24311-47H00

$171.00

22

GEAR, 2ND DRIVEN (NT:39)

24321-47H00

$171.00

23

BUSH, 2ND DRIVEN GEAR

24322-24F20

$45.55

24

GEAR, 3RD DRIVEN (NT:36)

24331-47H10

Unavailable

25

WASHER, 3RD & 4TH DRIVE

24333-47H00

$7.77

26

GEAR,4TH DRIVEN (NT:36)

24341-47H10

$186.30

27

GEAR,5TH DRIVEN (NT:34)

24351-47H00

$171.00

28

GEAR,6TH DRIVEN (NT:33) This part replaces 24361-47H00.

24361-17K00

$129.25

29

SHIM (30X40X1)

09181-30167

$3.68

30

SHIM (22X34X1) | RH

09181-22223

$3.12

31

SHIM (24X34X1) | LH

09181-24005

$3.55

32

BEARING (30X62X23.8) | LH

09267-30014

$150.80

33

BEARING (24X28X13)

09263-24030

$25.37

34

OIL SEAL (38X56X7)

09283-38027

$38.93

35

CIRCLIP

09380-30009

$3.49

36

CIRCLIP

09380-30009

$3.49

37

CIRCLIP

09380-30009

$3.49

38

SPROCKET, ENGINE

27510-15H10

$154.40

39

SPACER, ENGINE SPROCKET

27531-47H00

Unavailable

40

CHAIN ASSY, DRIVE (DID50VAZ BU&B)

27600-40F30-114

$667.80

41

JOINT SET, DRIVE CHAIN | OPT

27620-40F30

$62.50

42

NUT

09159-22008

$30.18

43

SHIM (27X42X1.5)

09181-27016

$5.70

44

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$7.32

45

RETAINER, DRIVE SHAFT BRG, L

24751-47H00

$106.45

46

HOUSING, DRIVE SHAFT SET

24771-01820

Unavailable

47

SCREW (6X13)

09139-06153

$2.62

48

SCREW (6X20)

09139-06159

$4.10

49

SCREW (6X20)

09139-06159

$4.10

50

O RING (D:1.9,ID:61.5)

09280-62004

$20.50

51

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

52

CIRCLIP

08331-41349

$2.73
