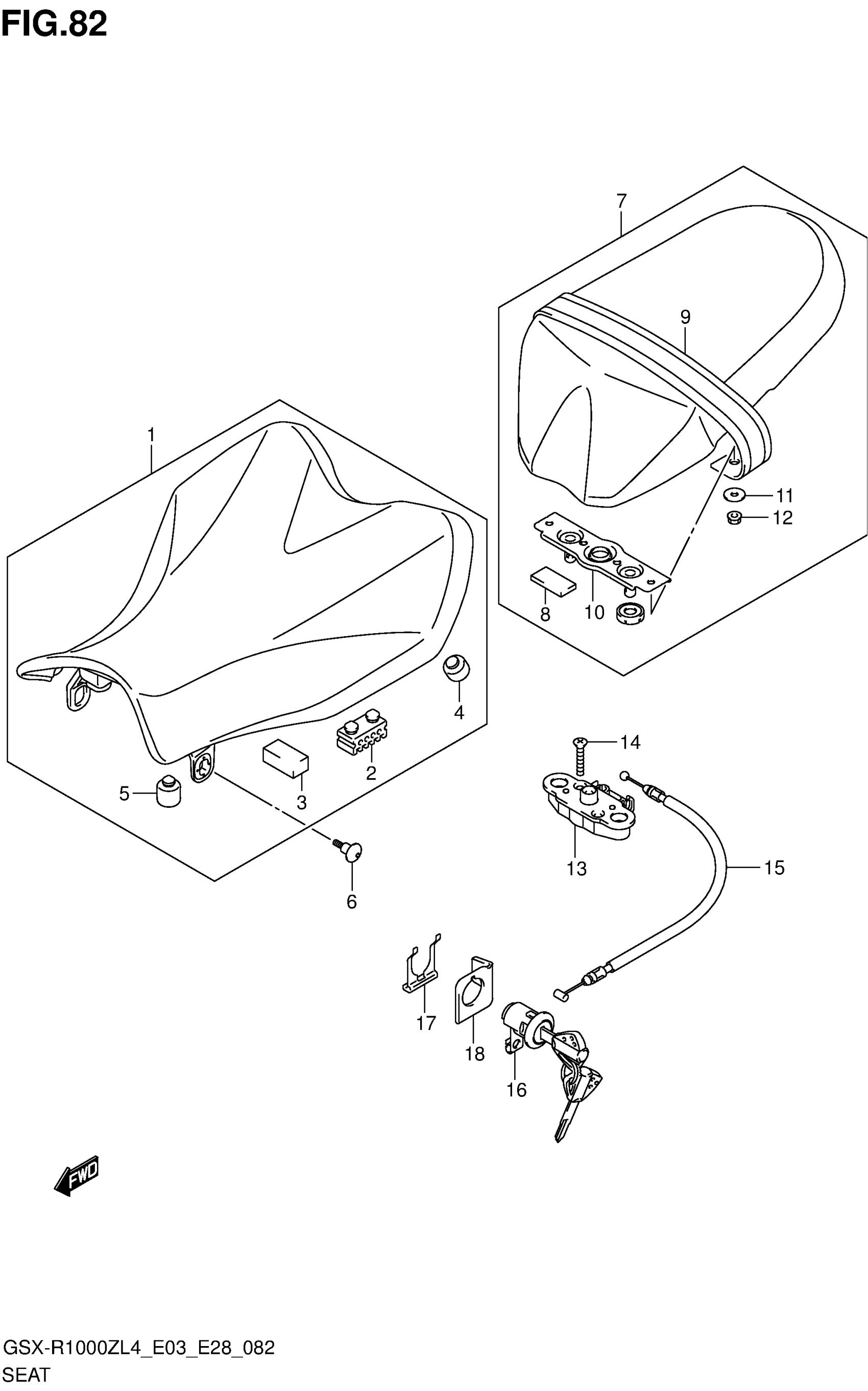

Suzuki GSX-R1000ZL4 (2014) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE/BLACK)

45100-47H10-AQT

$736.10

2

CUSHION, SIDE

45149-19D00

$8.34

3

CUSHION, FRONT (20X40X15)

45149-31E00

Unavailable

4

CUSHION

09321-10011

$2.80

5

CUSHION

09321-10034

$7.57

6

BOLT (6X20)

09139-06190

$3.77

7

SEAT ASSY, PILLION (BLUE)

45300-47H20-PQU

Unavailable

8

CUSHION, FRONT (20X40X15)

45149-31E00

Unavailable

9

BAND ASSY, SEAT (BLACK)

45180-47H00-P3H

$48.40

10

STRIKER

45290-47H01

$44.02

11

.WASHER (6.5X20X1.6)

09160-06088

$1.67

12

NUT

08316-1006A

$2.19

13

BRACKET, SEAT SUPPORT

45220-47H00

$155.43

14

SCREW

02122-0630A

$1.76

15

CABLE, SEAT LOCK

45280-47H00

$28.58

16

LOCK SET, SEAT

95700-14810

$98.21

17

PLATE, SEAT LOCK ASSY

45289-11F00

$5.67

18

GUIDE, SEAT LOCK CABLE

45288-14F00

$4.91
