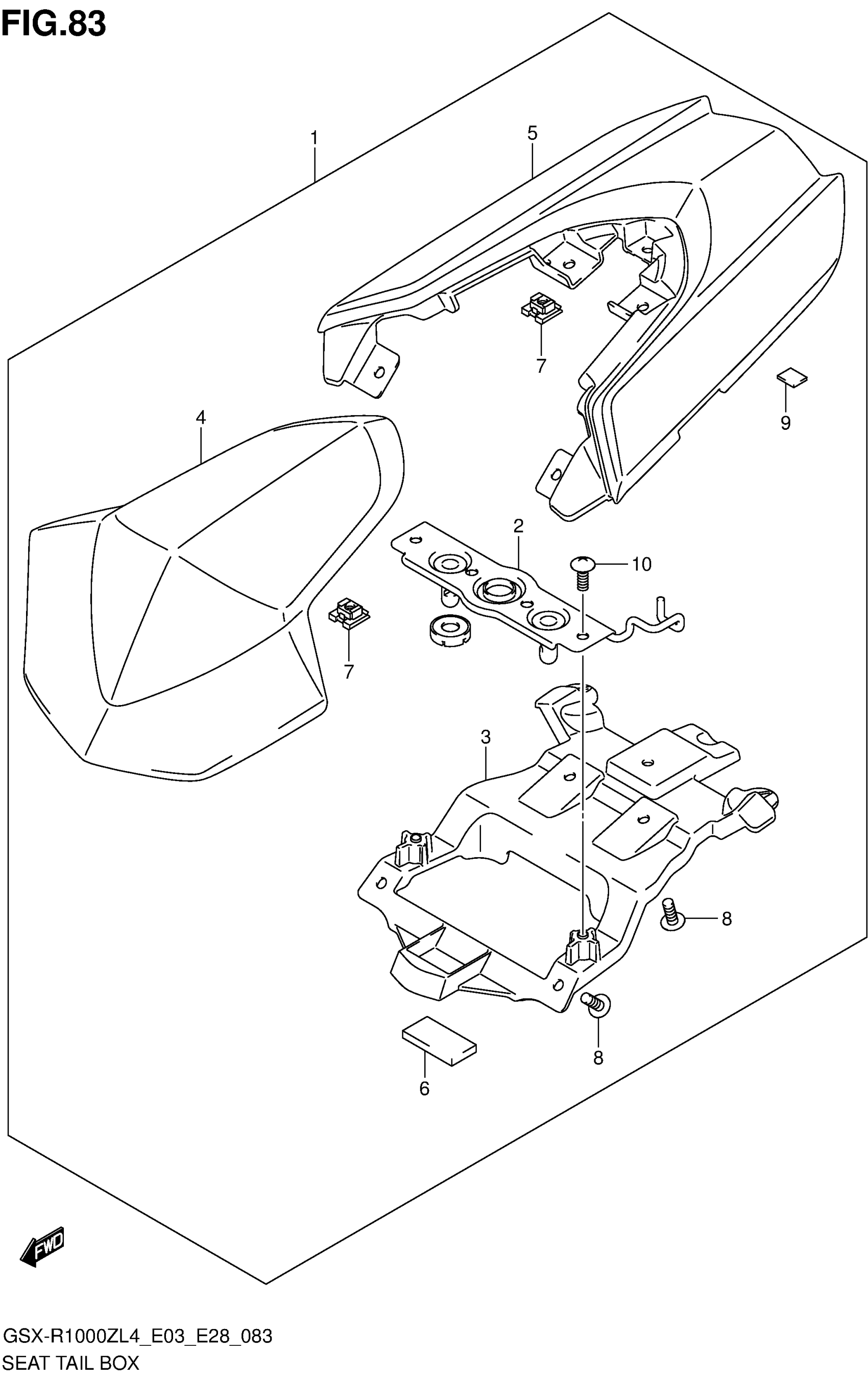

Suzuki GSX-R1000ZL4 (2014) SEAT TAIL BOX Diagram

#

Description
Price

1

BOX, SEAT TAIL (WHITE/SILVER)

45550-47H10-AQU

$351.25

2

STRIKER

45290-47H10

$57.92

3

FRAME, SEAT TAIL BOX

45553-47H00

$19.32

4

BOX, SEAT TAIL FR (WHITE)

45551-47H10-YWW

$171.67

5

BOX, SEAT TAIL RR (SILVER)

45552-47H00-YYF

$135.90

6

CUSHION

45149-47H00

$7.95

7

NUT

09148-06018

$3.00

8

SCREW

02142-0616A

$1.41

9

CUSHION

45517-01H00

$6.10

10

SCREW

03541-0616A

$2.07
