Description

Price

1

WHEEL, REAR (17M/CXMT6.00)

64111-47H20

$1,605.27

2

SPACER,RR HUB BEARING

64731-35F10

$51.42

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

4

SEAL,OIL (37X52X8) | RH This part replaces 09284-37001.

09284-37002

$7.85

5

DISC,RR BRAKE

69211-18G00

$319.08

6

BOLT (8X21)

09106-08160

$3.57

7

AXLE,RR

64711-49G00

$143.45

8

NUT

09159-25003

$31.85

9

WASHER (25.2X42X3.2)

09160-25070

$4.77

10

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

11

SPACER,REAR AXLE,L This part replaces 64751-47H00.

64751-47H10

$18.73

12

DRUM,RR SPROCKET

64610-47H00

$313.78

13

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

14

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

15

OIL SEAL (39X65X7)

09285-39001

$10.62

16

ABSORBER, HUB SHOCK

64651-47H10

$25.52

17

SPROCKET, REAR

64511-47H10

$151.08

18

NUT

08319-3110A

$2.73

19

TIRE, REAR, 190/50ZR17 M/C (73W) (BRIDGESTONE)

65110-47H10

Unavailable

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

21

BALANCER (10G)

55411-22H00

$8.60

21

BALANCER (20G)

55412-22H00

$10.07

21

BALANCER (30G)

55413-22H00

$11.47

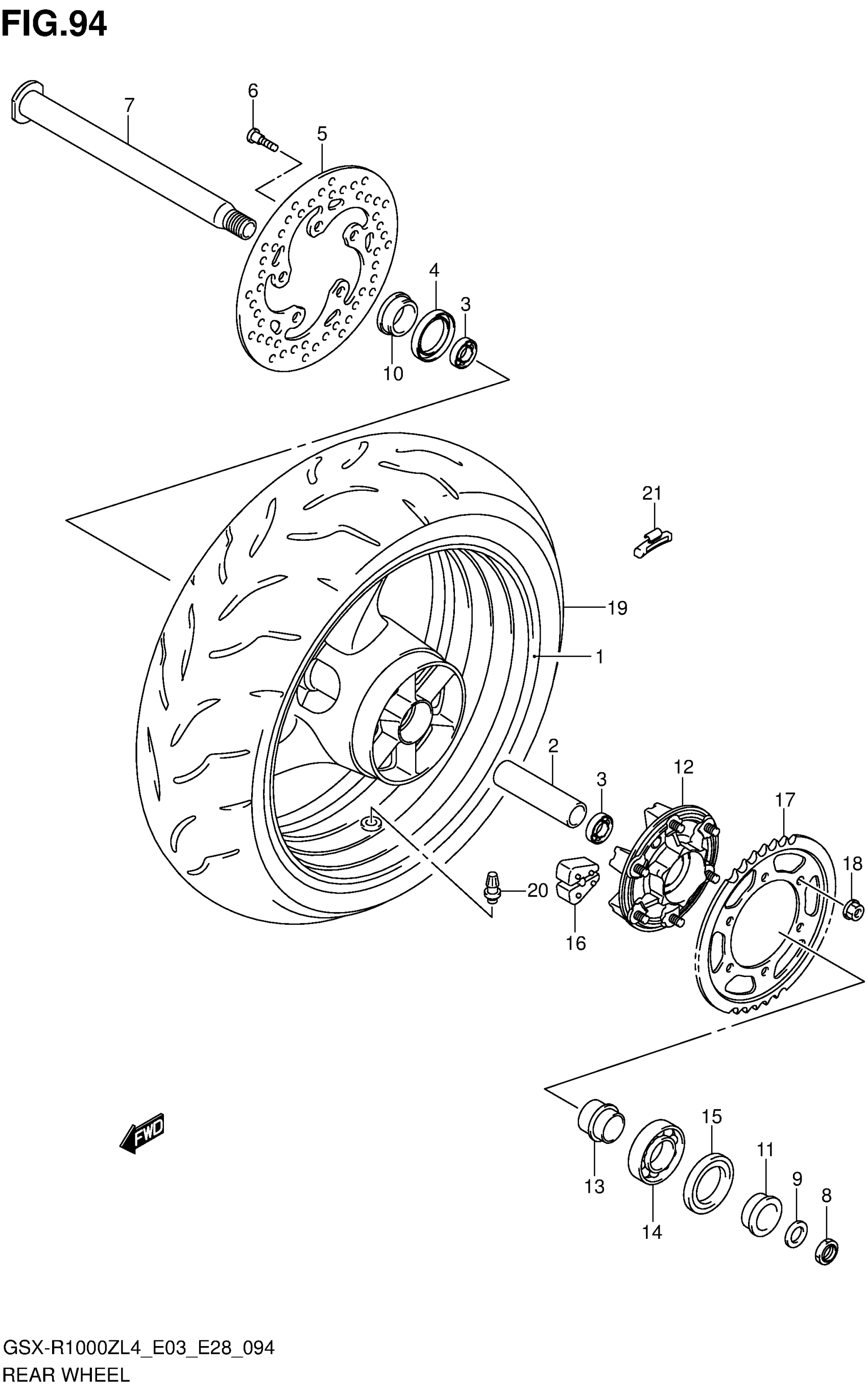

Suzuki GSX-R1000ZL4 (2014) REAR WHEEL Diagram
