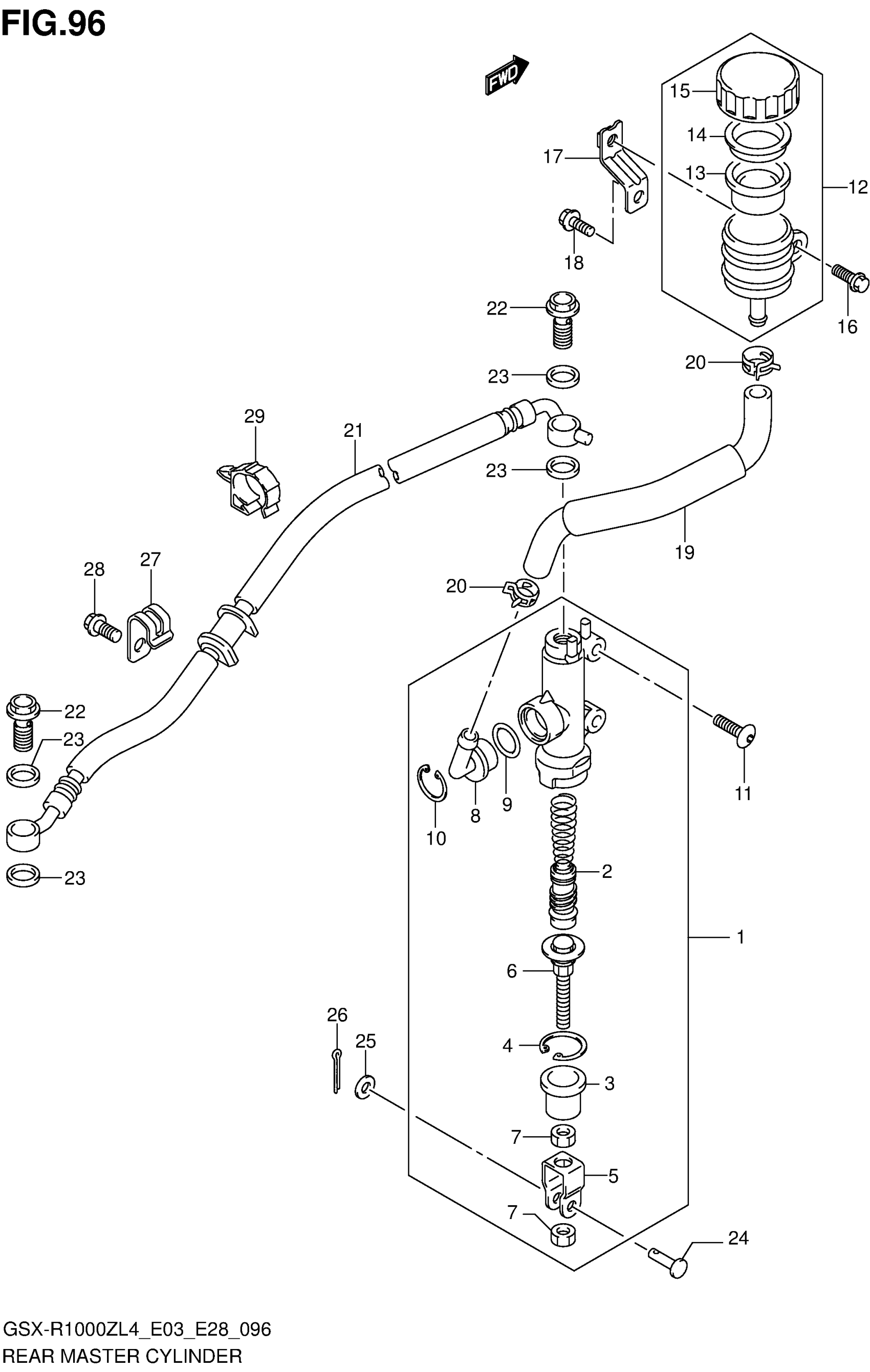

Suzuki GSX-R1000ZL4 (2014) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,RR MASTER

69600-47H10

$312.98

2

PISTON / CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

CIRCLIP

69665-47H00

$5.02

5

YOKE

69692-44H00

$16.87

6

ROD, PUSH

69670-40A00

$25.62

7

NUT

69693-05A00

$1.96

8

CONNECTOR

69672-00B20

$7.01

9

O RING

69686-34200

$2.93

10

CIRCLIP

69674-00B20

$3.97

11

SCREW (6X20)

09139-06125

$2.93

12

TANK ASSY,RR RESERVOIR

69740-47H00

$80.02

13

DIAPHRAGM

69667-00B20

$15.68

14

PLATE

69668-00B20

$7.67

15

CAP

69669-47H00

$8.60

16

BOLT

01547-0616A

$2.03

17

BRACKET, RR RESERVOIR TANK

69750-47H00

$13.05

18

BOLT

01547-0612A

$2.03

19

HOSE, RR RESERVOIR TANK

69730-47H10

Unavailable

20

CLIP

09401-12404

$2.34

21

HOSE,RR BRAKE This part replaces 69480-47H00.

69480-47H01

$98.07

22

UNION

09360-10065

$8.92

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2)

09200-06068

$4.11

25

WASHER

08322-0106A

$1.84

26

PIN, COTTER

04111-2015A

$1.49

27

CLAMP,RR BRAKE HOSE

69268-21H00

$7.73

28

BOLT

01547-0612A

$2.03

29

CLAMP

09403-17306

$2.62
