Description

Price

1

FENDER, REAR FRONT

63111-47H10

$154.22

2

BOLT (6X12)

09111-06107

$2.60

3

COVER, FENDER FRONT (WHITE)

63112-47H20-YWW

$155.50

4

FENDER, REAR REAR

63113-47H00

$148.07

5

BOLT (6X30)

09103-06204

$2.82

6

WASHER (6.5X18X1.0)

09160-06028

$1.49

7

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

8

SPACER

63147-47H00

$24.20

9

CLIP (BLACK)

09409-06314-5PK

$2.78

10

COVER, FENDER REAR RH (SILVER)

63170-47H00-YYF

$57.05

11

COVER, FENDER REAR LH (SILVER)

63180-47H00-YYF

$57.05

12

BOLT

07120-0510B

$3.05

13

FENDER, REAR LOWER

63114-47H00

$54.18

14

SCREW (6X16)

09139-06169

$3.10

15

WASHER

08322-0106A

$1.84

16

CLIP

09409-06328

$3.23

17

CUSHION, TOOL BAG

33652-20C00

$2.99

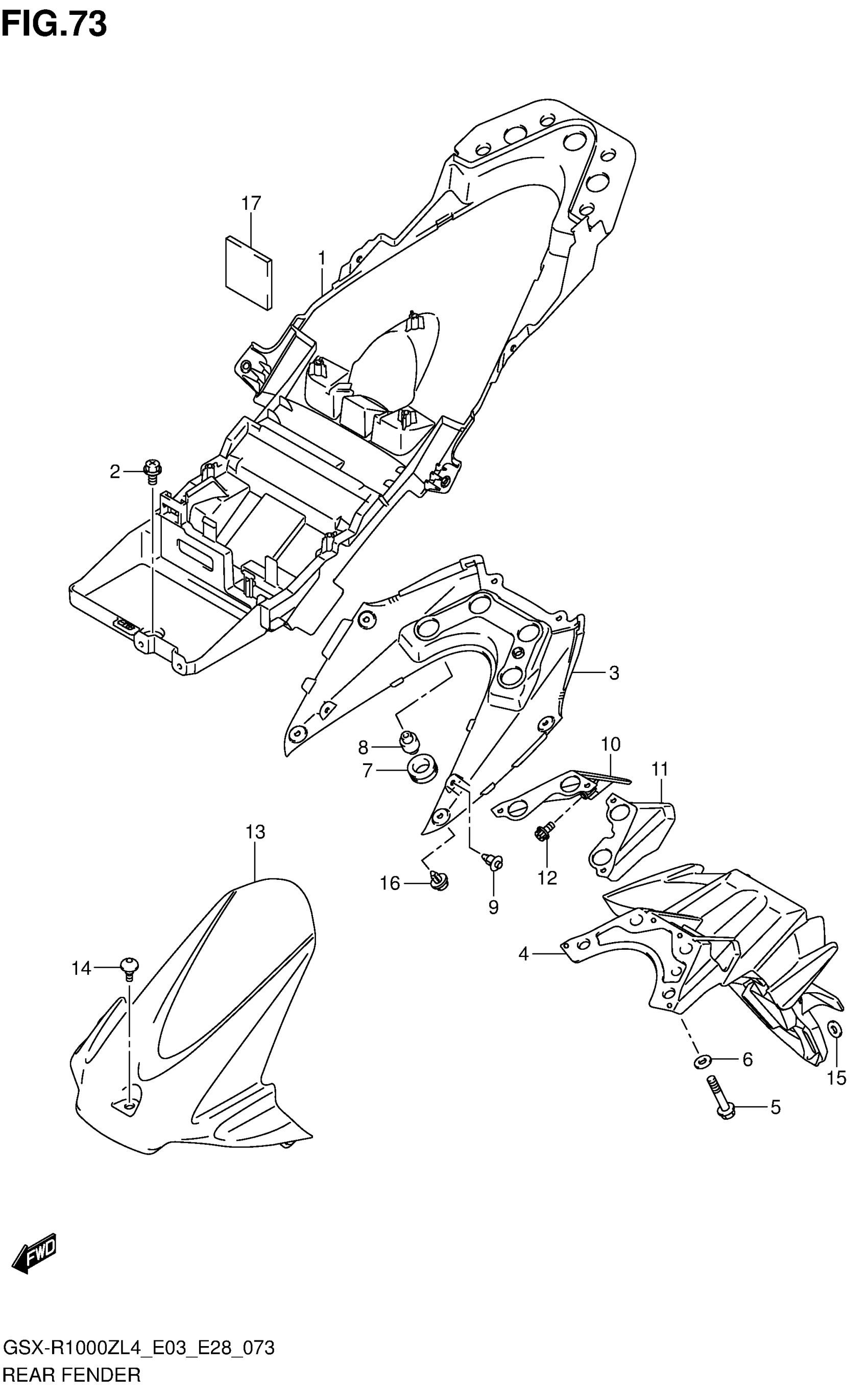

Suzuki GSX-R1000ZL4 (2014) REAR FENDER Diagram
