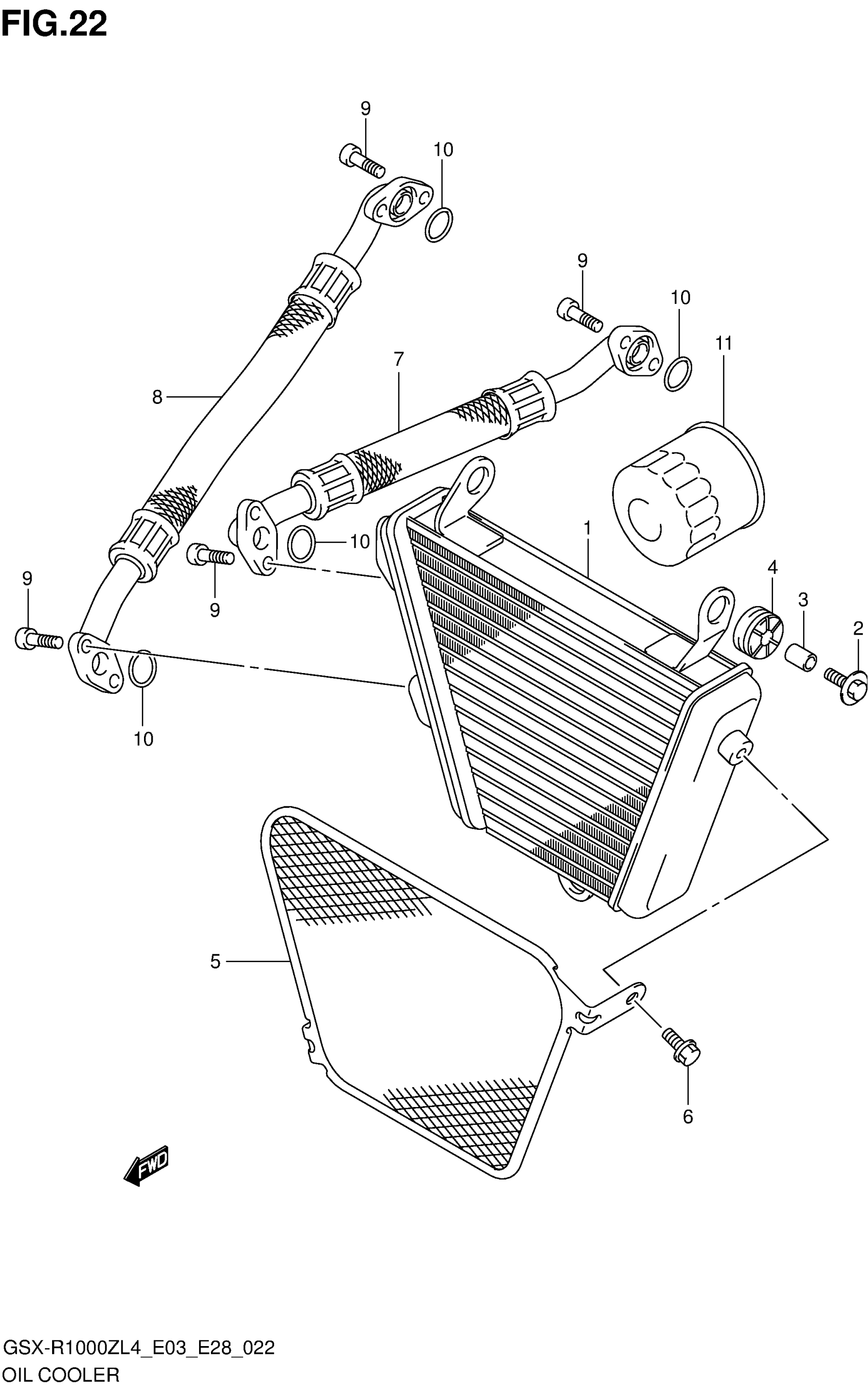

Suzuki GSX-R1000ZL4 (2014) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-47H00

Unavailable

2

BOLT (6X25)

09118-06122

$3.90

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

GUARD, OIL COOLER

16650-47H10

$115.45

6

BOLT

01550-0610A

$1.97

7

HOSE, OIL COOLER INLET

16460-47H00

$185.93

8

HOSE, OIL COOLER OUTLET

16470-47H00

Unavailable

9

BOLT (6X16)

09106-06073

$2.39

10

O RING (D:2.4,ID:16)

09280-15015

$4.90

11

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10
