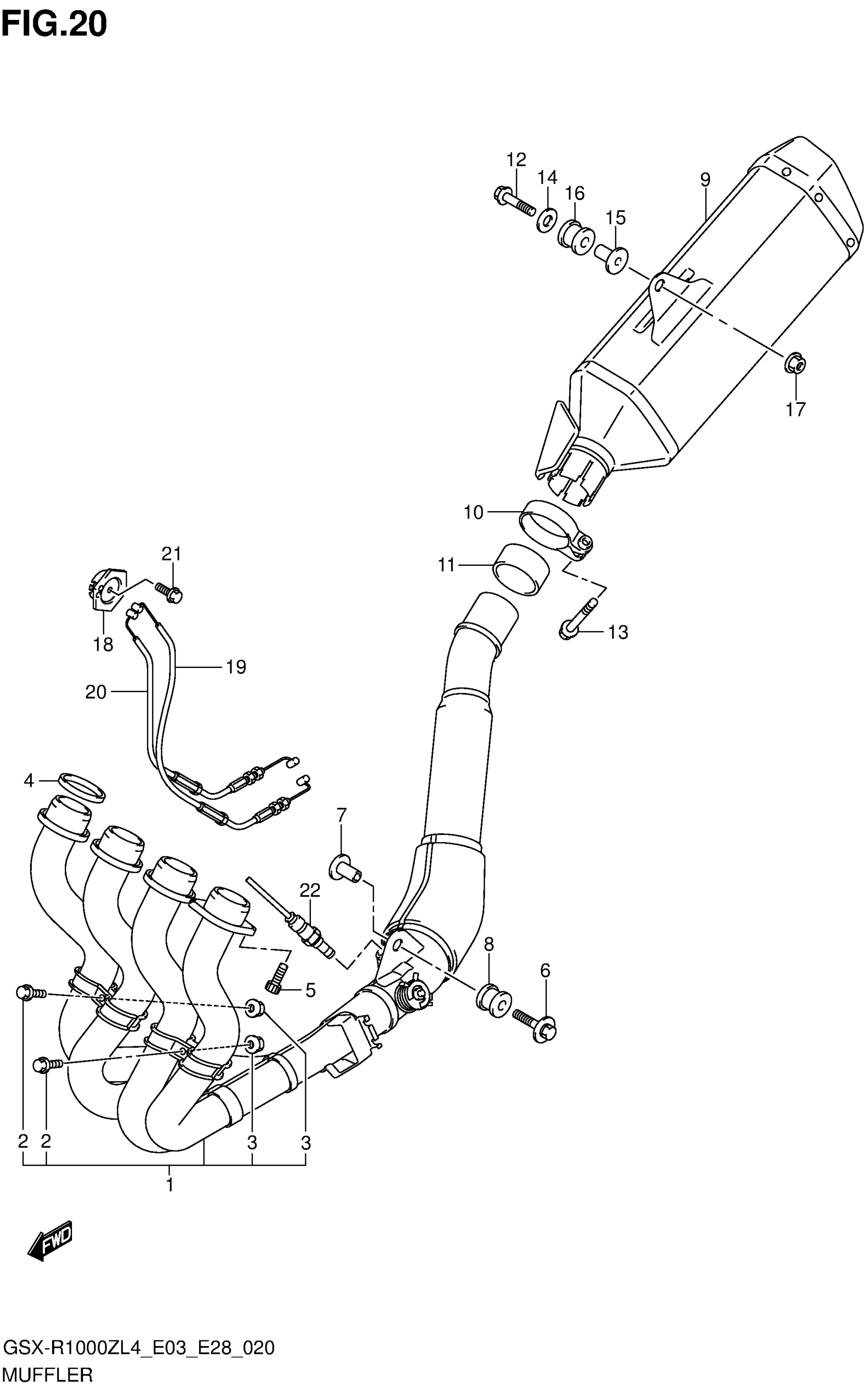

Suzuki GSX-R1000ZL4 (2014) MUFFLER (GSX-R1000ZL4 E28) Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-47H20

$2,144.65

2

BOLT

01547-0635A

$2.30

3

NUT

08316-1006A

$2.19

4

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

5

BOLT

07130-0825A

$3.04

6

BOLT (8X45)

09118-08152-A05

$5.24

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION

09320-12077

$11.78

9

BODY, MUFFLER

14310-47H70-H01

$2,889.50

10

CLAMP,MUFFLER CONNECTOR

14459-47H00

$24.37

11

CONNECTOR,MUFFLER

14771-24F01

$31.05

12

BOLT (8X45)

09103-08358

$3.42

13

BOLT (8X40)

09103-08392

$3.62

14

WASHER (8.5X28X1.5)

09160-08142

$2.76

15

SPACER (8.6X12X24.2)

09180-08152

$5.83

16

CUSHION

09320-12048

$5.11

17

NUT

08361-2508A

$1.97

18

PULLEY, CONTROLLER

11269-18G01

$28.78

19

CABLE, EXH VALVE NO.1

11276-47H10

$69.55

20

CABLE, EXH VALVE NO.2

11277-47H10

$69.55

21

BOLT

01547-0516A

$1.55

22

SENSOR, OXYGEN

18213-18H10

$388.57
