Description

Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$20.33

2

LEVER ASSY, BLAKE

57300-29G30

$66.09

3

BOLT, PIVOT

57431-29G00

$9.31

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$11.13

8

LEVER ASSY,CLUT This part replaces 57500-41G20.

57500-41G21

$107.78

9

LEVER, CLUTCH

57621-41G00

$37.07

10

BOLT

57431-41G00

$11.64

11

COLLAR

57532-41G00

$19.74

12

NUT

08319-3106A

$2.03

13

SWITCH ASSY, CLUTCH

57560-41G20

$22.86

14

.SCREW,CLUTCH SWITCH This part replaces 57562-41G20.

57562-41G21

$8.11

15

..BOLT

01547-0620B

$2.45

16

NUT, CABLE ADJUSTER

57641-33E21

$35.94

17

SPRING

57644-33E00

$9.07

18

SCREW, SPRING

57642-33E00

$4.02

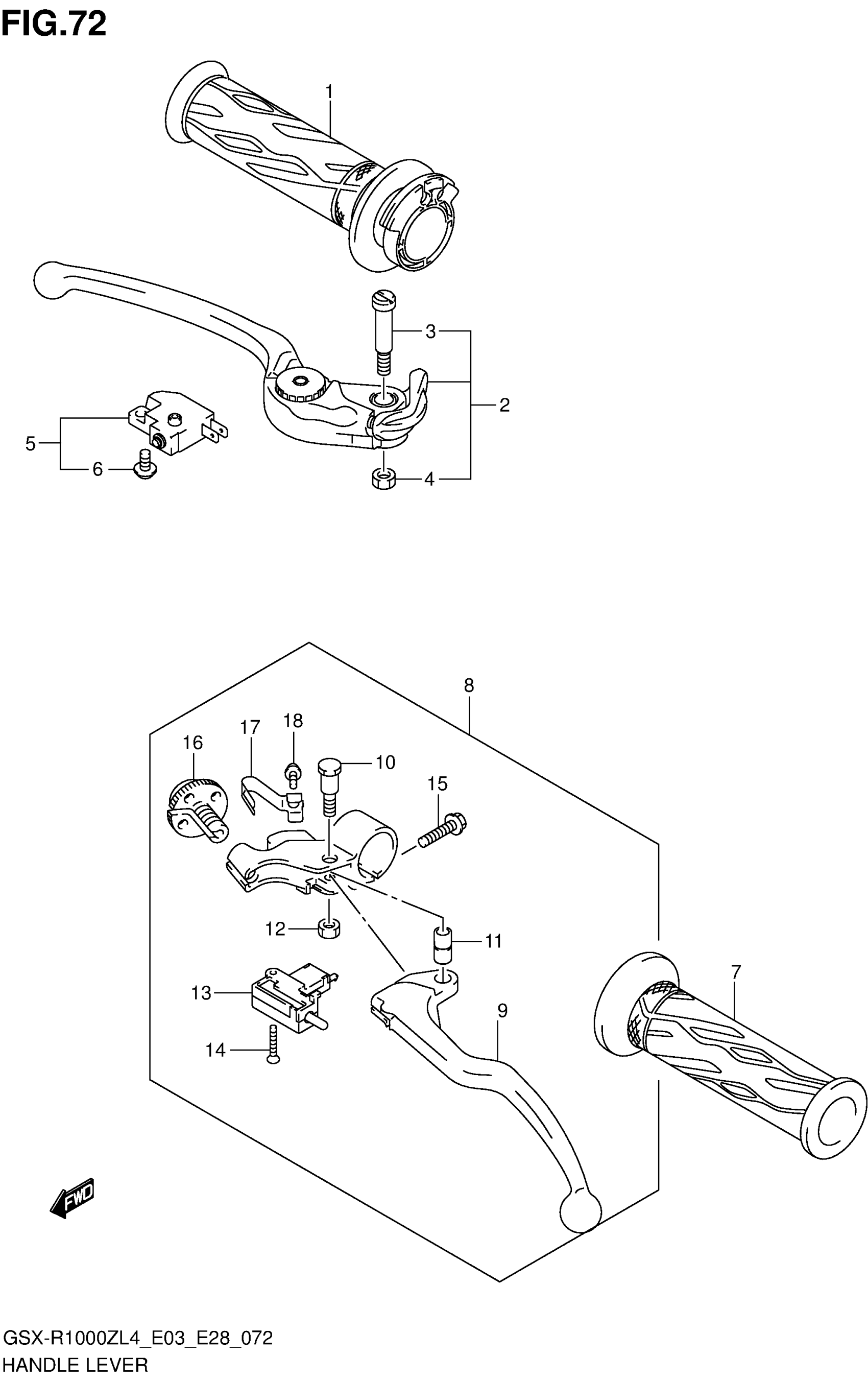

Suzuki GSX-R1000ZL4 (2014) HANDLE LEVER Diagram
