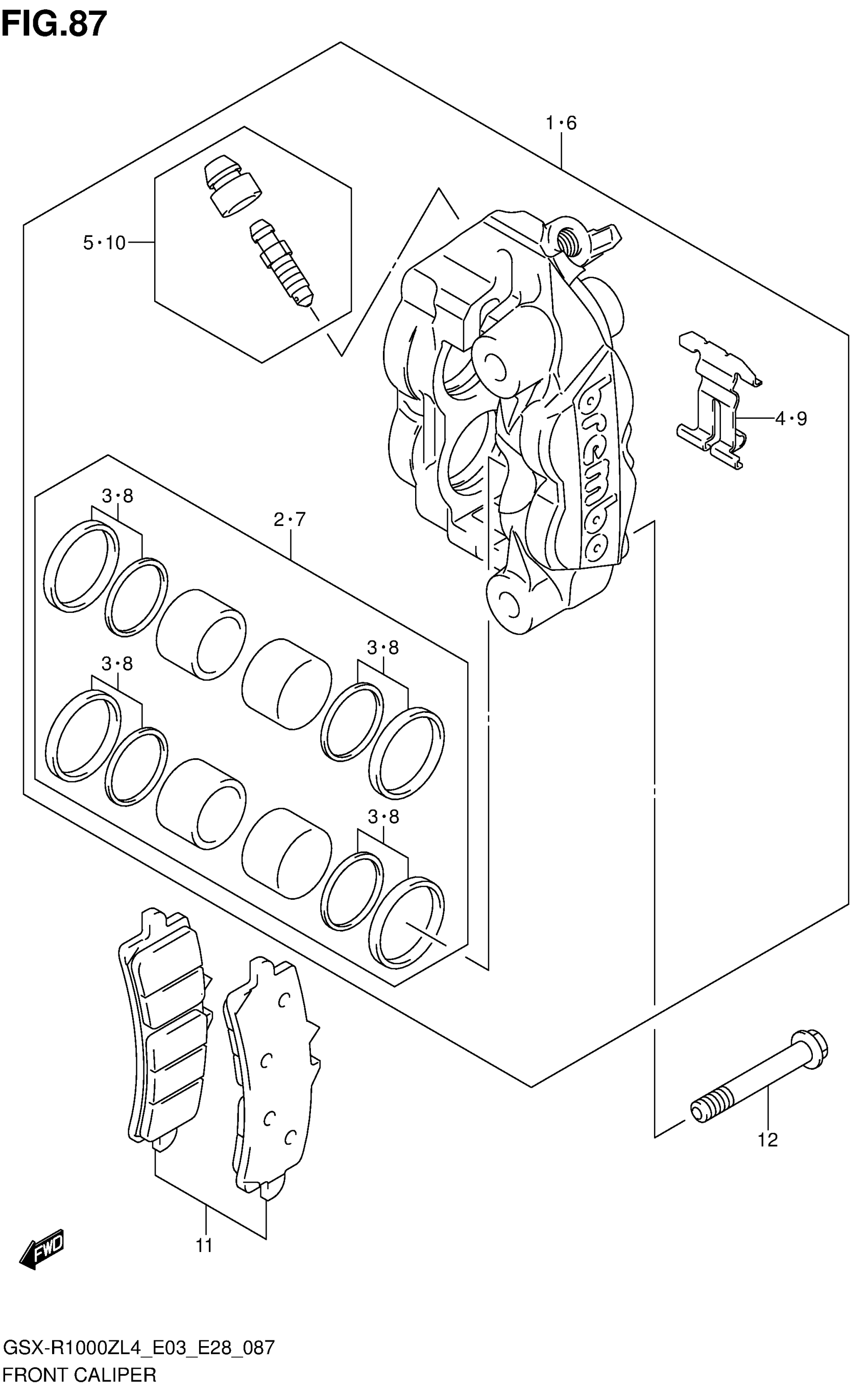

Suzuki GSX-R1000ZL4 (2014) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH

59100-14J40-999

$677.02

2

PISTON SET

59100-14810

$101.95

3

SEAL SET, PISTON

59100-14820

$63.34

4

SPRING, PAD

59151-14J00

$23.43

5

BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY, FRONT LH

59300-14J40-999

$677.02

7

PISTON SET

59100-14810

$101.95

8

SEAL SET, PISTON

59100-14820

$63.34

9

SPRING, PAD

59151-14J00

$23.43

10

BLEEDER SET

59100-14840

$25.21

11

PAD (T4.0)

59100-14850

$59.36

12

BOLT (10X70)

09103-10429

$15.38
