2014 Suzuki GSX-R1000ZL4 Frame Diagram

← All diagrams

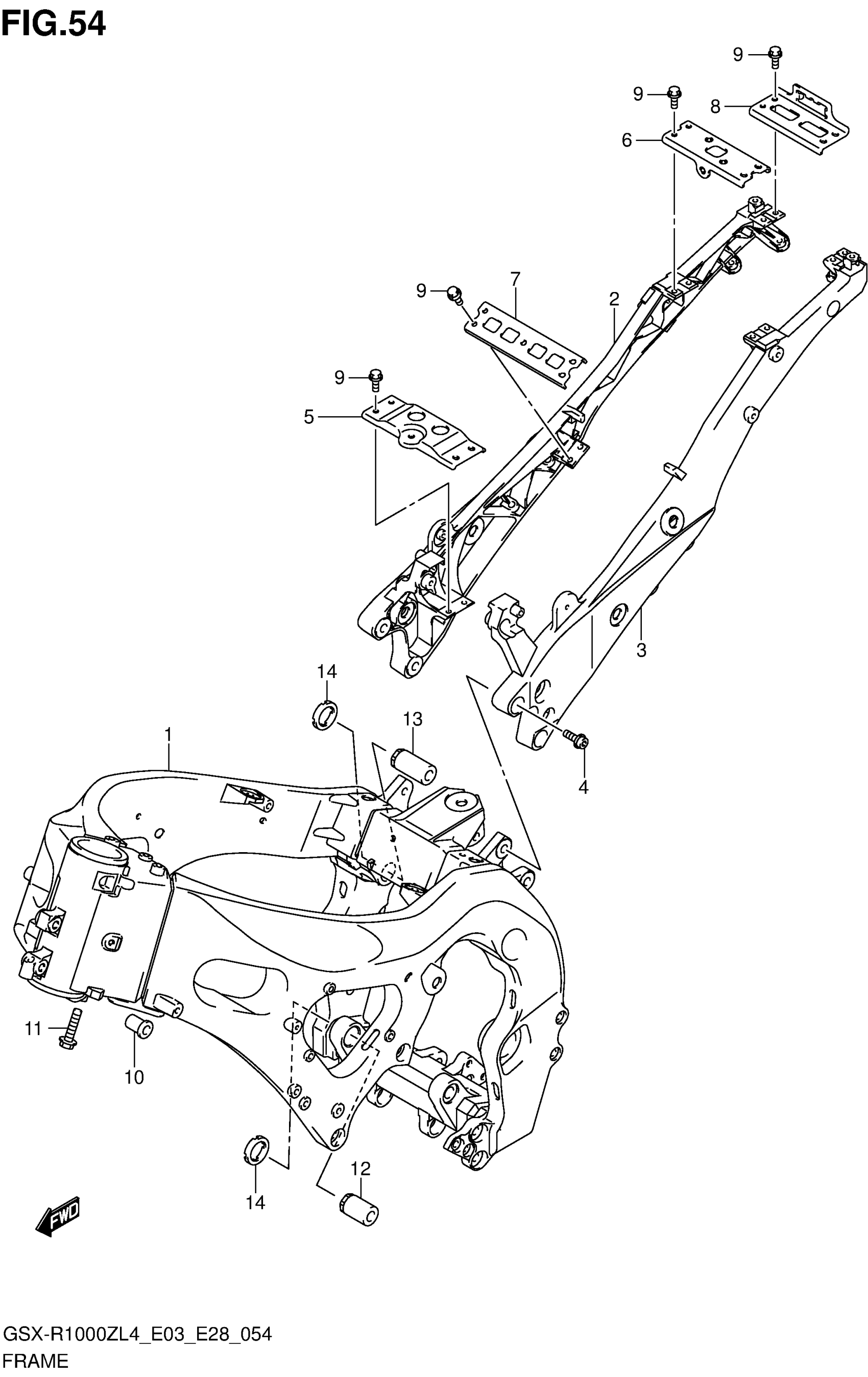

Find the part on the Frame diagram for your 2014 Suzuki GSX-R1000ZL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX-R1000ZL4 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

41100-47HA0

1

$9,113.70

In stock

2

RAIL, SEAT RH

41211-47H00

1
Out of stock

3

RAIL, SEAT LH

41221-47H00

1
Out of stock

4

BOLT,SEAT RAIL

41233-18G20

4

$8.62

In stock

5

BRIDGE,SEAT RAIL FR

41770-01H00

1

$69.00

In stock

6

BRIDGE, UPPER

42730-47H00

1

$49.27

In stock

7

BRIDGE, LOWER

42741-37H00

1
Out of stock

8

BRIDGE, REAR

42751-47H00

1

$30.92

In stock

9

BOLT (6X12)

09103-06285

16
Out of stock

10

SPACER, MOUNT

41911-40F01

2

$23.13

In stock

11

BOLT (8X35)

09103-08512

2

$2.92

In stock

12

BOLT, ADJUST

41921-47H00

1
Out of stock

13

BOLT, ADJUST UPPER

41921-47H10

1
Out of stock

14

NUT,CRANK CASE ADJUST BOLT

41922-47H00

2
Out of stock
