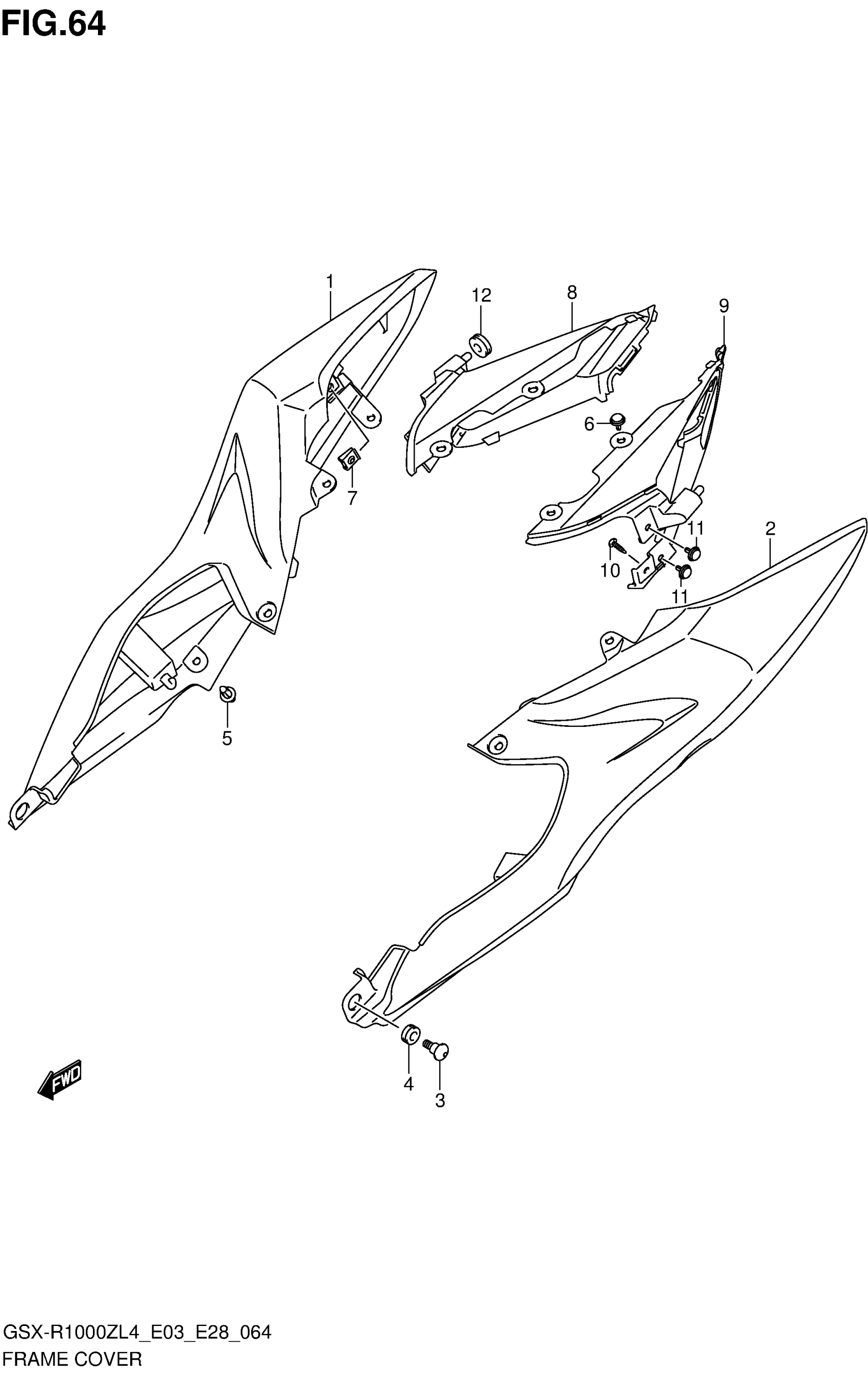

Suzuki GSX-R1000ZL4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-47H10-YWW

$291.38

2

COVER, FRAME LH (WHITE)

47211-47H10-YWW

$291.38

3

SCREW, FRONT

47133-43H00

$7.98

4

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

CLIP

09409-06328

$2.92

7

NUT

09148-05038

$1.97

8

COVER, FRAME REAR RH (BLUE)

47611-47H10-YKY

$162.87

9

COVER, FRAME REAR LH (BLUE)

47621-47H10-YKY

Unavailable

10

SCREW

03541-0512A

$1.37

11

CLIP

09409-06328

$2.92

12

CUSHION

09320-06504

$4.47
