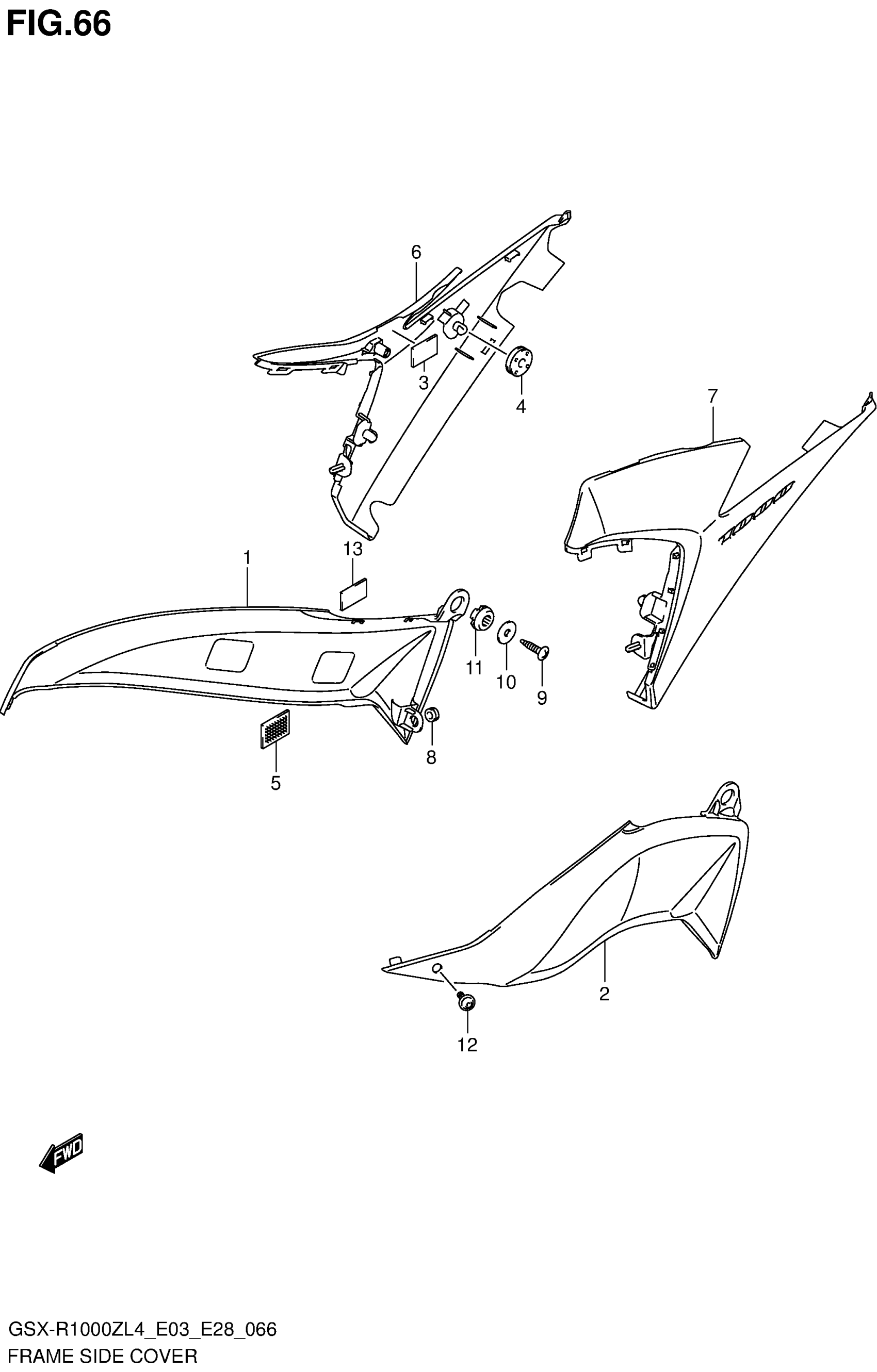

Suzuki GSX-R1000ZL4 (2014) FRAME SIDE COVER Diagram

#

Description

Price

1

COVER, SIDE FRONT RH

47411-47H10

$44.70

2

COVER, SIDE FRONT LH

47511-47H10

$43.25

3

CUSHION

44556-33H00

$7.66

4

CUSHION

09320-08028

$3.04

5

FASTENER

44572-13G00

$11.07

6

COVER, SIDE REAR RH This part replaces 47421-47H00.

47421-47HA0

$34.90

7

COVER, SIDE REAR LH

47521-47H00

$38.95

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

9

SCREW

03541-0516A

$1.49

10

WASHER (5.5X20X1.2)

09160-05501

$1.84

11

CUSHION

09320-09010

$2.84

12

SCREW (5X13)

09139-05064

$2.57

13

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99
