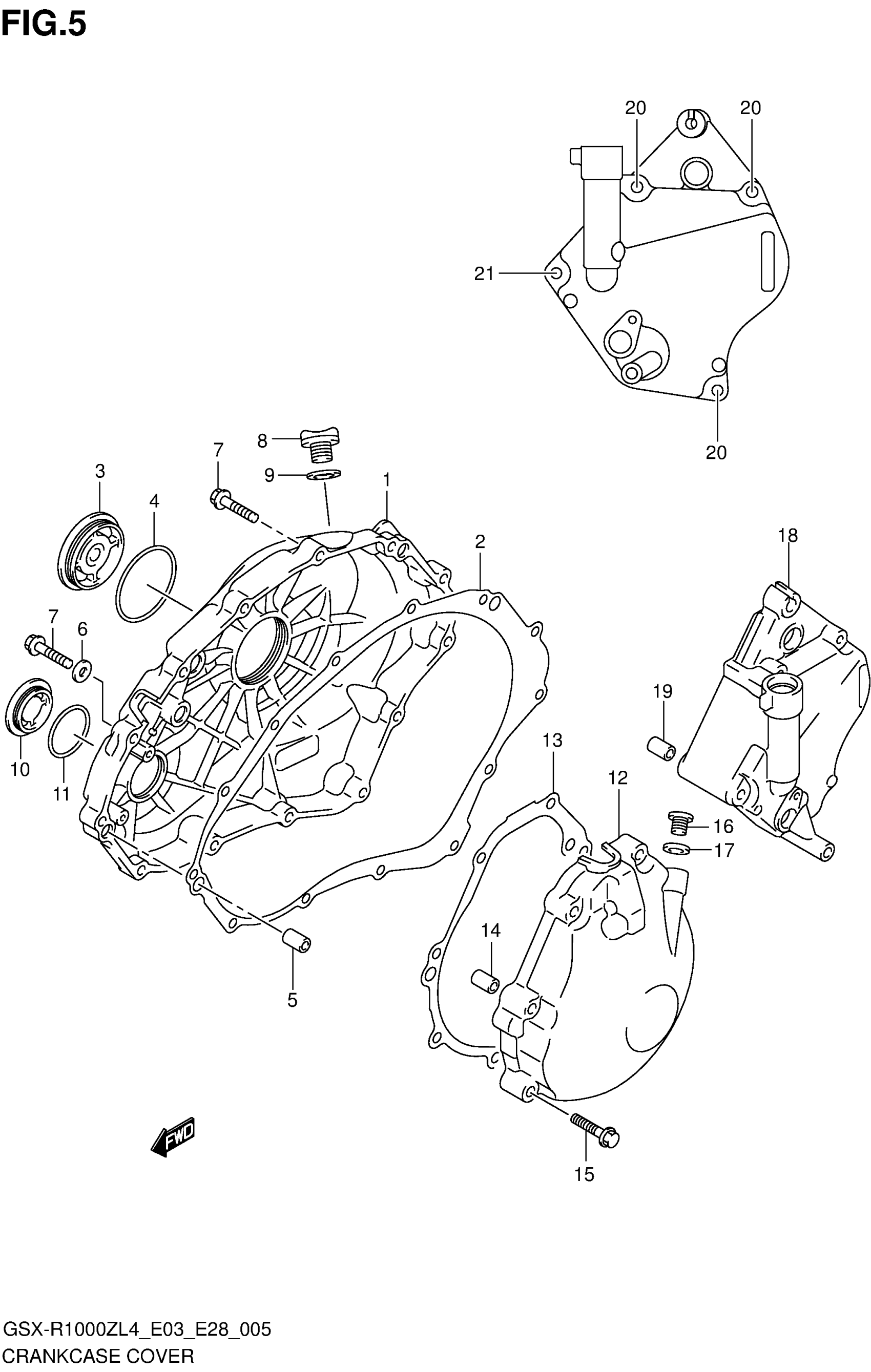

Suzuki GSX-R1000ZL4 (2014) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-47H10

$626.10

2

GASKET, CLUTCH COVER

11482-47H00

$20.25

3

CAP, CLUTCH RELEASE ADJUST

11342-41G20

$119.58

4

O RING

31156-17E00

$4.60

5

PIN

04211-09189

$1.65

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

BOLT (6X30)

09103-06308

$3.29

8

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG, CRANKSHAFT HOLE

11343-47H00

$110.75

11

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

12

COVER, GENERATOR

11351-47H10

$394.50

13

GASKET

11483-47H00

$12.54

14

PIN

04211-09149

$1.65

15

BOLT (6X30)

09103-06213

$2.47

16

PLUG (10X10)

09248-10010

$4.17

17

GASKET (10X14X3.6)

09168-10002

$2.13

18

COVER, ENGINE SPROCKET

11361-47H10

$417.53

19

PIN

04211-09129

$1.65

20

BOLT (6X45)

09103-06224

$2.70

21

BOLT (6X65)

09103-06239

$2.66
