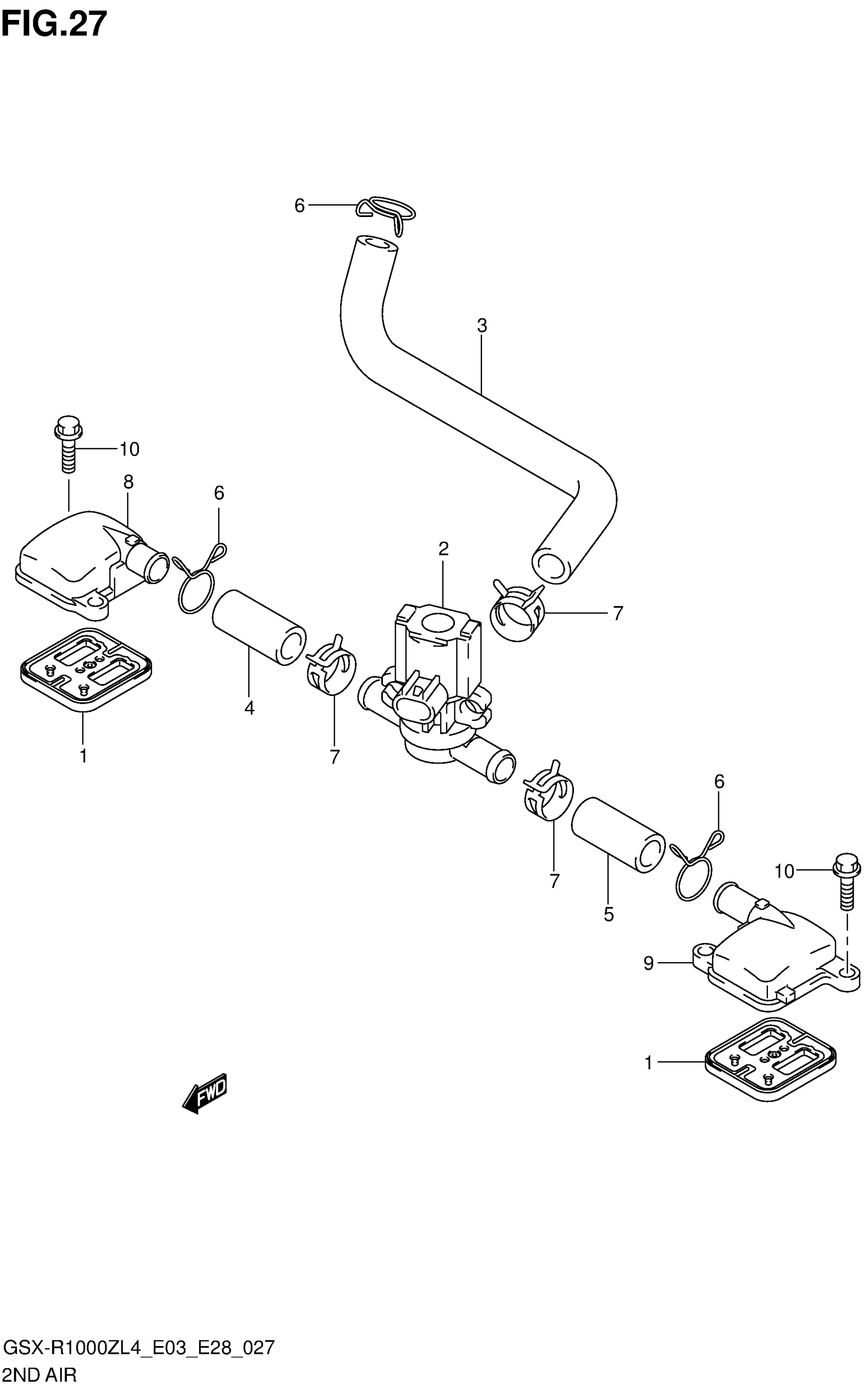

Suzuki GSX-R1000ZL4 (2014) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-35F11

$99.63

2

VALVE ASSY, AIR CUT

18510-29G40

$128.72

3

HOSE, 2ND AIR CLEANER

18711-47H00

$23.47

4

HOSE, 2ND AIR VALVE, RH

18461-47H00

Unavailable

5

HOSE, 2ND AIR VALVE, LH

18471-47H00

Unavailable

6

CLIP

09401-17201

$3.15

7

CLIP

09401-17401

$3.08

8

COVER, 2ND AIR REED VALVE RH

18531-47H00

$29.07

9

COVER, 2ND AIR REED VALVE LH

18532-47H00

$29.07

10

BOLT (6X20)

09103-06201

$2.64
