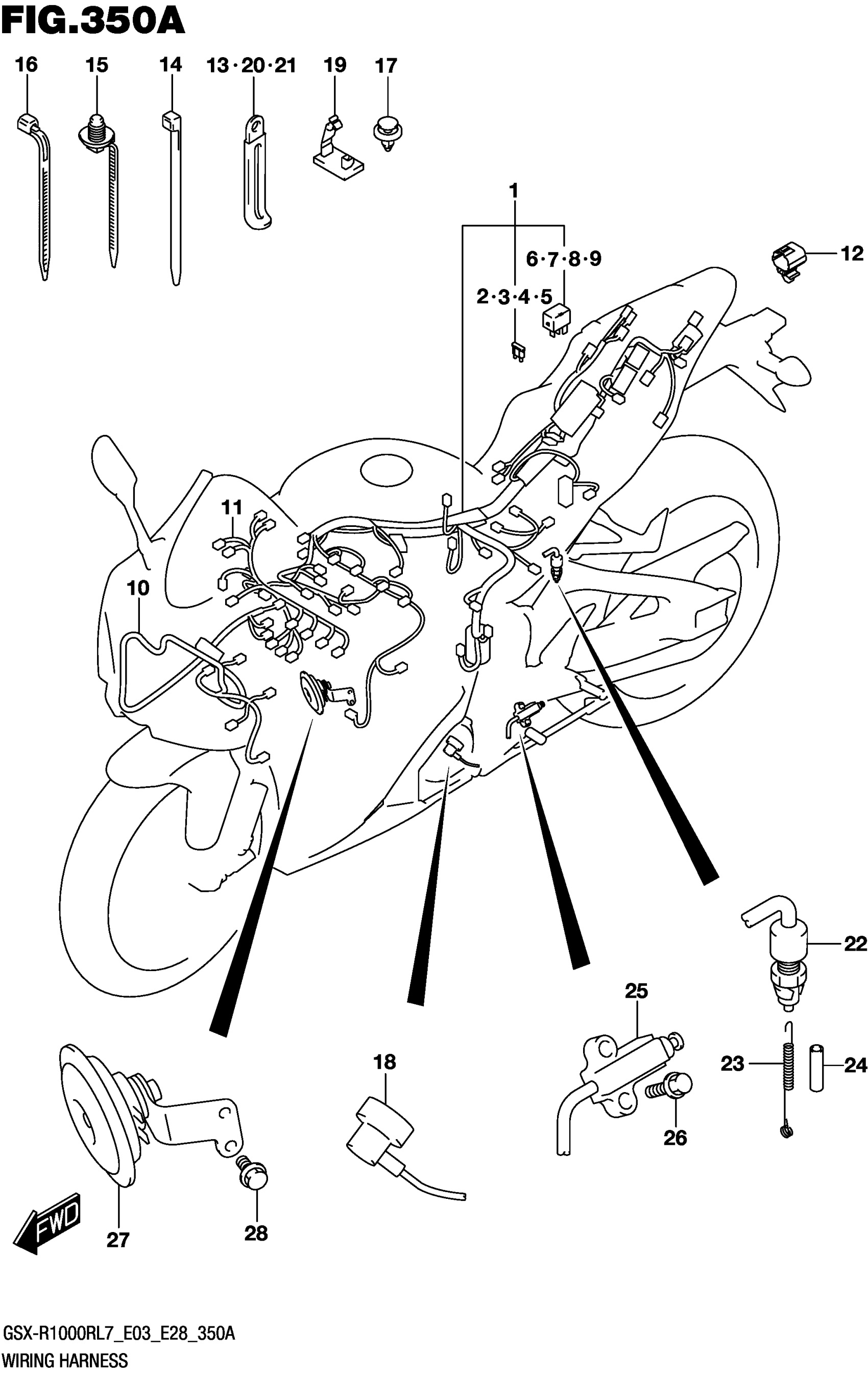

Suzuki GSX-R1000R L7 (2017) WIRING HARNESS (GSX-R1000RL7 E03) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-17K60.

36610-17K61

$1,067.85

2

.FUSE (7.5A)

09481-07504

$1.49

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (30A)

09481-30504

$2.00

6

.RELAY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY | SIDE STAND

38860-76F01

$34.37

9

.RELAY | HEADLAMP

38860-76F01

$34.37

10

HARNESS,WIRING NO.2

36620-17K30

$251.62

11

HARNESS,WIRING NO.3

36630-17K00

$201.25

12

CAP,TS This part replaces 36654-06J30.

36654-06J31

$14.53

13

CLAMP (L:45)

09404-06429

$1.83

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP (L:154)

09407-17403

$4.91

16

CLAMP (L:125)

09407-14403

$2.26

17

CLIP

09409-06328

$3.23

18

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

19

CLAMP

09403-04310

$5.35

20

CLAMP (L:45)

09404-06429

$1.83

21

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

22

SWITCH ASSY,STOP LAMP

37740-17K00

$25.37

23

SPRING

43232-17K00

$4.77

24

HOSE,5X10X600 | L:600->60 This part replaces 09352-50823-600.

44421-13ER0

$10.06

25

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

26

BOLT

01550-0620A

$1.97

27

HORN ASSY

38500-17K00

$66.93

28

BOLT

01550-0612A

$1.97
