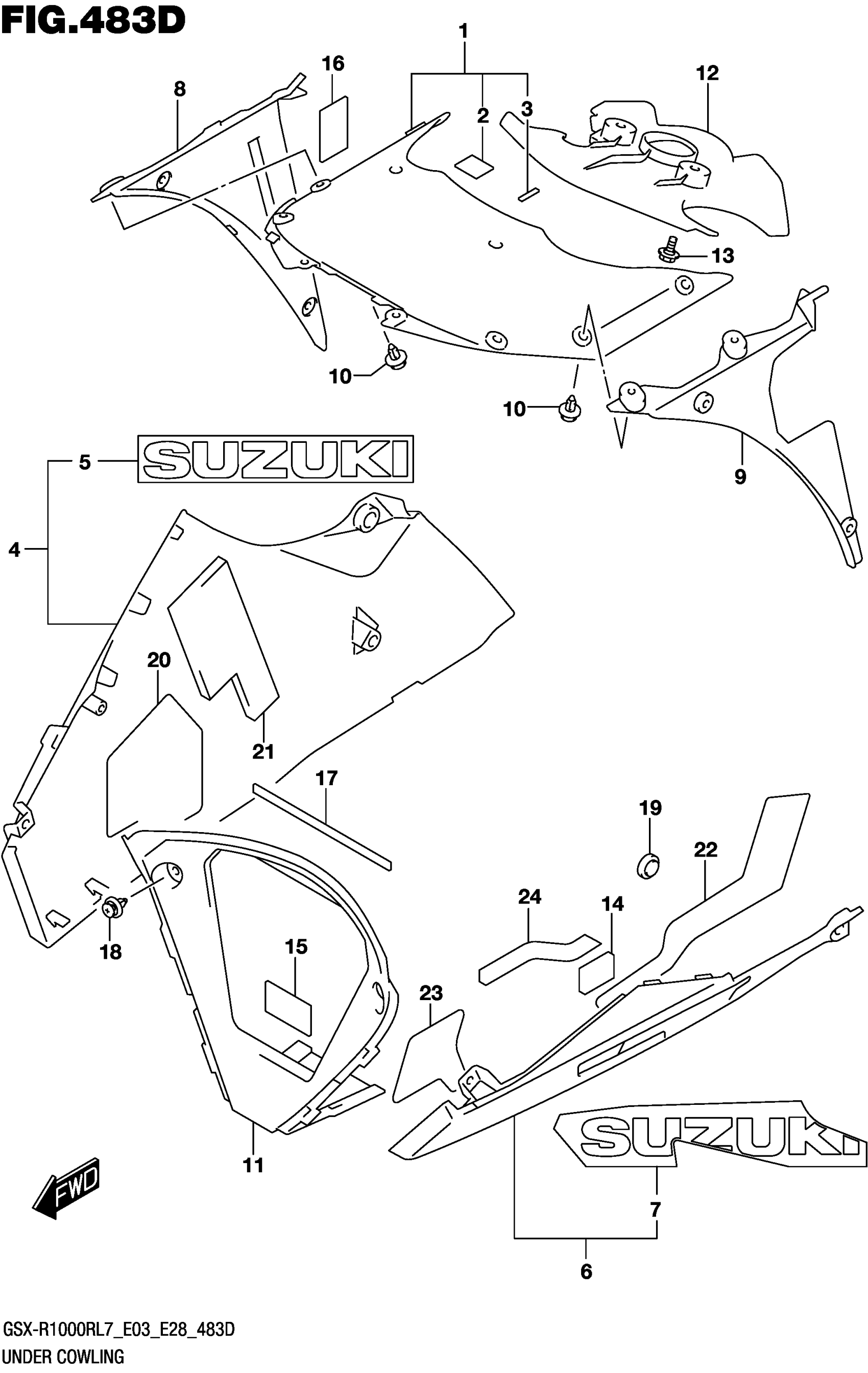

Suzuki GSX-R1000R L7 (2017) UNDER COWLING (GSX-R1000RZL7 E03) Diagram

#

Description
Price

1

COVER,BODY COWL

94620-17K00

$28.92

2

.CUSHION, BODY COWL COVER

36930-60A10

$2.92

3

.TAPE (6X25X0.13)

94443-06G00

$3.25

4

COWLING, UNDER RH (BLACK)

94400-17K00-YVB

$155.52

5

.EMBLEM, "SUZUKI" (SILVER)

68181-47HA1-YMD

$32.33

6

COWLING, UNDER LH (BLACK)

94500-17K00-YVB

$155.52

7

.EMBLEM, "SUZUKI"

68191-17K00-JRU

$32.33

7

(SILVER/BLACK)

68191-17K00-JRU

$32.33

8

COWLING,UNDER INNER,R

94461-17K00

$13.23

9

COWLING,UNDER INNER,L

94462-17K00

$13.23

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

COWLING,UNDER CTR

94491-17K00

$28.46

12

COVER,LWR BRACKET

94458-17K00

$11.78

13

BOLT (6X12)

09111-06107

$2.60

14

CUSHION, UNDER RH

33652-13G00

$3.58

15

CUSHION, UNDER COWL NO.2

33652-35400

Unavailable

16

CUSHION, COVER BODY COWL

36930-60A10

$2.92

17

CUSHION, UNDER COWL NO.1

47121-31J00

$2.46

18

CLIP

94479-35F00

$5.62

19

CUSHION

09321-10018

$5.45

20

SHIELD,UNDER COWL HEAT,R

94476-17K00

$3.92

21

CUSHION,SIDE REAR,R NO.2

94477-17K10

$4.91

22

SHIELD,UNDER COWL HEAT,L

94486-17K00

$4.17

23

SHIELD,UNDER COWL HEAT,L NO.2

94486-17K10

$2.81

24

CUSHION,SIDE REAR,L NO.2

94487-17K10

$3.13
