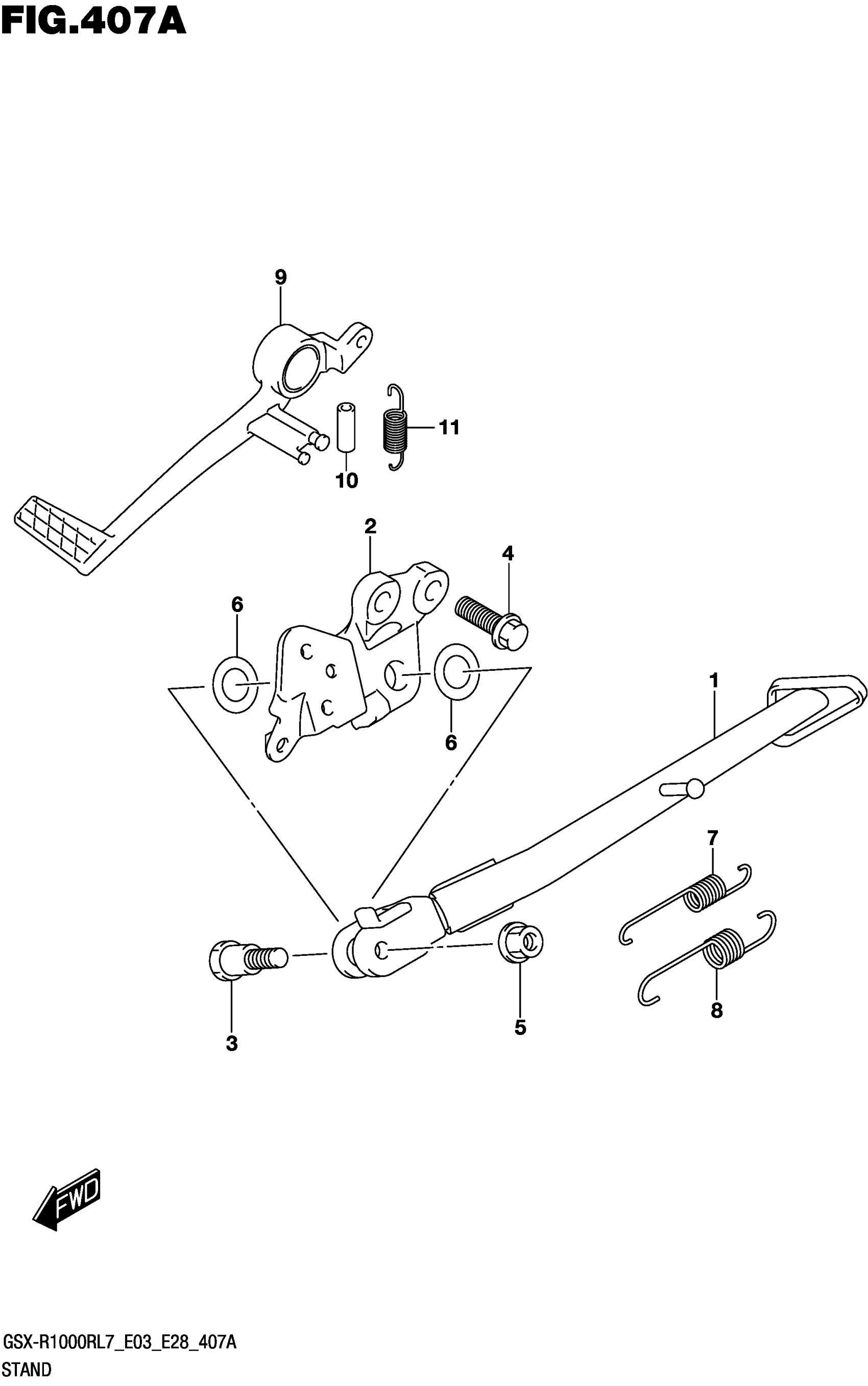

Suzuki GSX-R1000R L7 (2017) STAND Diagram

#

Description
Price

1

STAND,PROP

42310-17K00

$101.62

2

BRACKET,PROP STAND

42330-17K10

$190.08

3

BOLT

42411-47H00

$13.92

4

BOLT (10X30)

09103-10366

$3.85

5

NUT

09159-10103

$3.10

6

SHIM (16X28X0.5)

09181-16214

$2.76

7

SPRING | NO.1

09443-14070

$5.50

8

SPRING | NO.2

09443-19016

$5.89

9

PEDAL,BRAKE

43110-47H10

$120.17

10

HOSE | L:600->22 This part replaces 09352-11153-600.

09352-11154-600

$13.05

11

SPRING

09443-11033

$4.50
