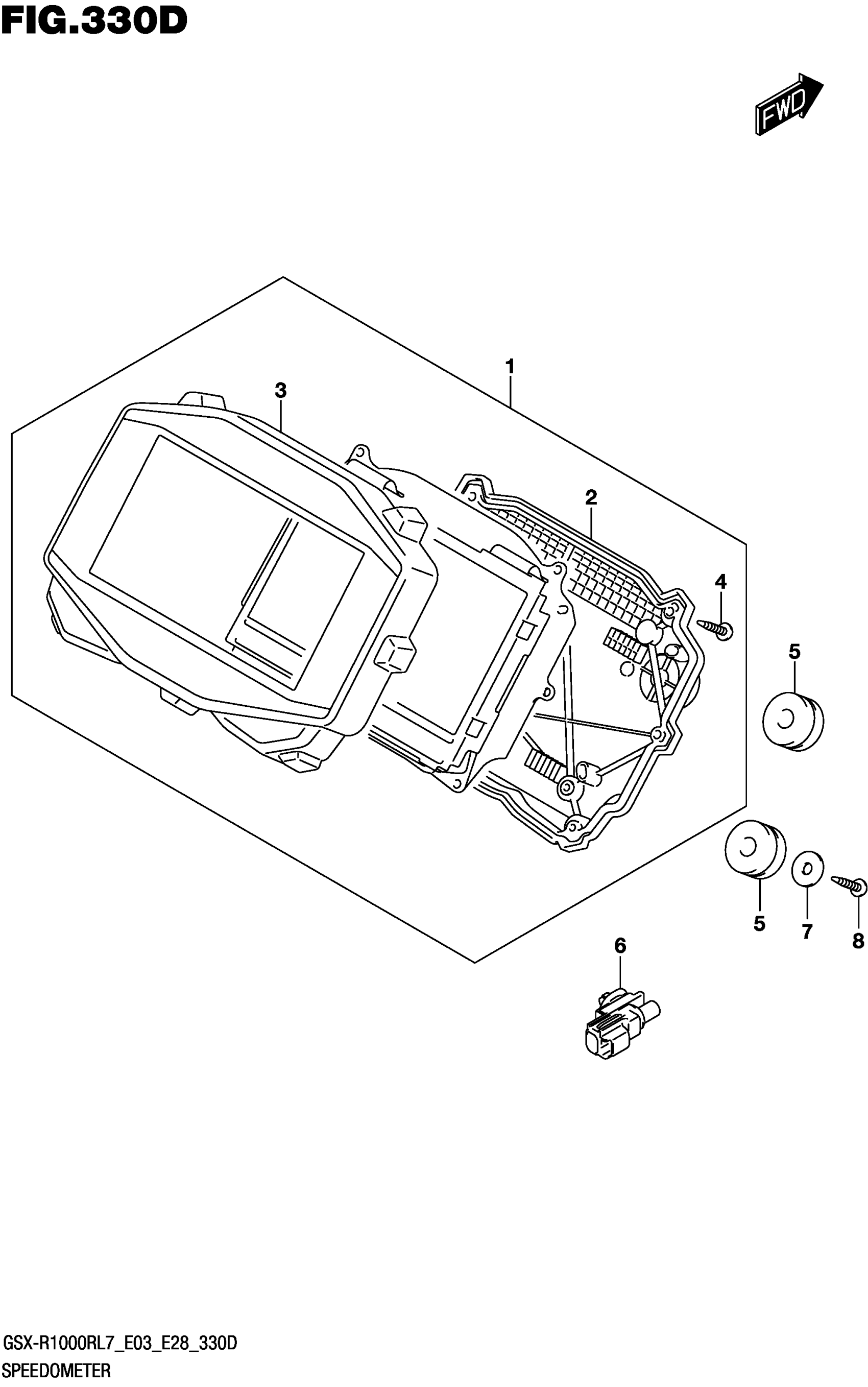

Suzuki GSX-R1000R L7 (2017) SPEEDOMETER (GSX-R1000RZL7 E03) Diagram

#

Description

Price

1

SPEEDOMETER ASSY This part replaces 34100-17KC0.

34100-17KC2-999

$1,125.78

2

.CASE ASSY,LOWER

34111-17K00

$68.72

3

.CASE ASSY,UPPER This part replaces 34150-17K10.

34150-17K10-999

$103.71

4

SCREW

34183-10C00

$2.11

5

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.59

6

SENSOR, AIR TEMP

95643-58J00

$50.50

7

WASHER (4.5X16X1.2)

09160-04026

$2.05

8

SCREW

03541-0416A

$1.49
