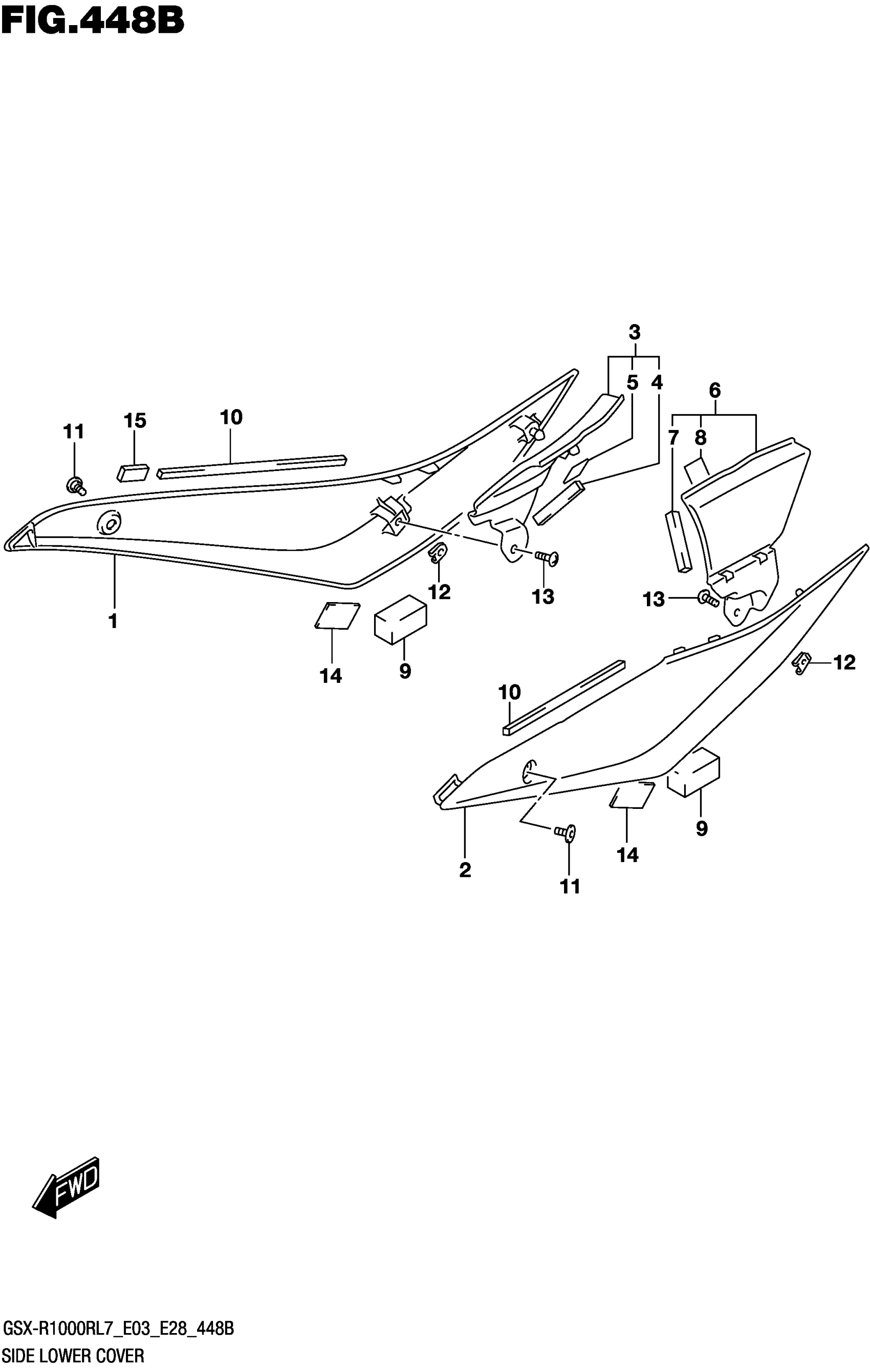

Suzuki GSX-R1000R L7 (2017) SIDE LOWER COVER (GSX-R1000RL7 E28) Diagram

#

Description
Price

1

COVER,FRAME FRONT,R This part replaces 47511-17K00.

47511-17K01

$34.65

2

COVER,FRAME FRONT,L This part replaces 47611-17K00.

47611-17K01

$40.55

3

COVER, FRAME FRONT NO.2 RH

47710-17K00-YSF

$80.02

3

(BLUE)

47710-17K00-YSF

$80.02

4

CUSHION (8X50X8)

47122-17K00

$2.14

5

.CUSHION (20X20X1)

47123-17K00

$4.34

6

COVER, FRAME FRONT NO.2 LH

47810-17K00-YSF

$68.03

6

(BLUE)

47810-17K00-YSF

$68.03

7

CUSHION (8X50X8)

47122-17K00

$2.14

8

.CUSHION (20X20X1)

47123-17K00

$4.34

9

CUSHION

33652-38F20

$2.61

10

CUSHION,FRAME COVER UPPER (L:

47121-17K00

$2.92

11

SCREW (5X13)

09139-05092

$2.25

12

NUT (M5)

09148-05045

$2.36

13

SCREW

03541-0516A

$1.49

14

FASTENER

44572-13G00

$11.07

15

CUSHION (10X30X6)

33652-47F00

$3.70
