Description

Price

1

WHEEL, REAR (17M/CXMT6.00)

64111-17K00-YLY

$1,107.92

1

(BLUE)

64111-17K00-YLY

$1,107.92

2

SPACER,RR HUB BEARING

64731-35F10

$50.59

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$24.53

4

SEAL,OIL (37X52X8) | RH This part replaces 09284-37001.

09284-37002

$7.40

5

DISC,REAR BRAKE

69211-47H00

$102.70

6

BOLT (8X21)

09106-08160

$3.32

7

AXLE,RR

64711-49G00

$189.55

8

NUT, REAR AXLE

64721-17K00

$15.68

9

WASHER (25.2X42X3.2)

09160-25070

$4.44

10

SPACER,REAR AXLE,R

64741-35F10

$12.90

11

SPACER,REAR AXLE,L

64751-47H10

$21.15

12

DRUM,REAR SPROCKET

64610-04K00

$283.02

13

RETAINER, SPROCKET DRUM

64733-35F00

$25.45

14

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$36.61

15

OIL SEAL (39X65X7)

09285-39001

$9.86

16

ABSORBER,REAR HUB SHOCK

64651-17K00

$22.23

17

SPROCKET, REAR (NT:45)

64511-15J00

$163.38

18

NUT

08319-3110A

$2.80

19

TIRE, REAR | BATTLAX RACING STREE

65110-17K00

Unavailable

19

(190/55ZR17M/C 75W) | BRIDGESTONE

65110-17K00

Unavailable

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

21

RING,SPEED SENSOR RR (50T)

64162-47H00

$46.50

22

BOLT

07130-0512A

$2.25

23-1

BALANCER (10G) | 10G

55411-22H00

$9.70

23-2

BALANCER (20G) | 20G

55412-22H00

$11.37

23-3

BALANCER (30G) | 30G

55413-22H00

$12.93

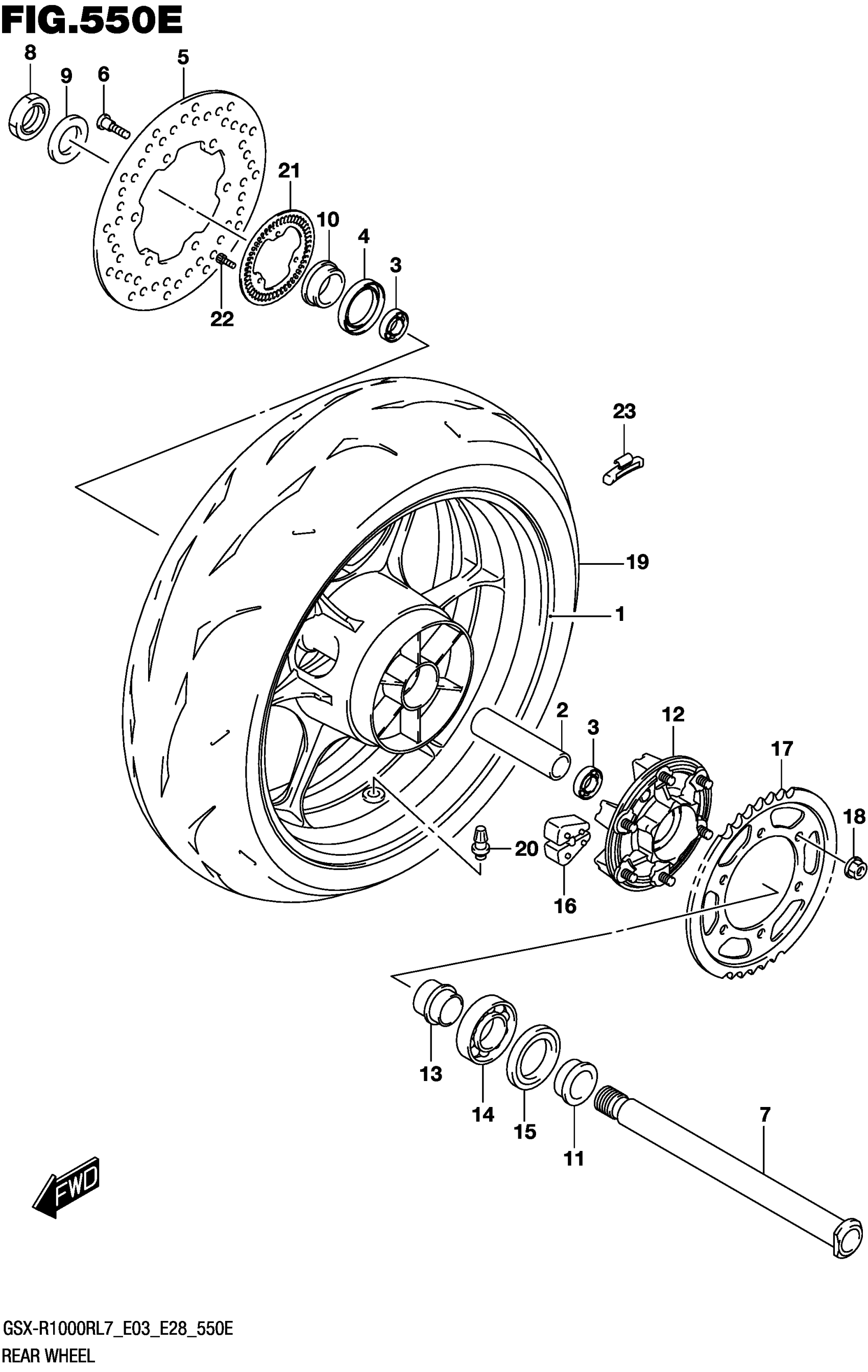

Suzuki GSX-R1000R L7 (2017) REAR WHEEL (GSX-R1000RZL7 E28) Diagram
