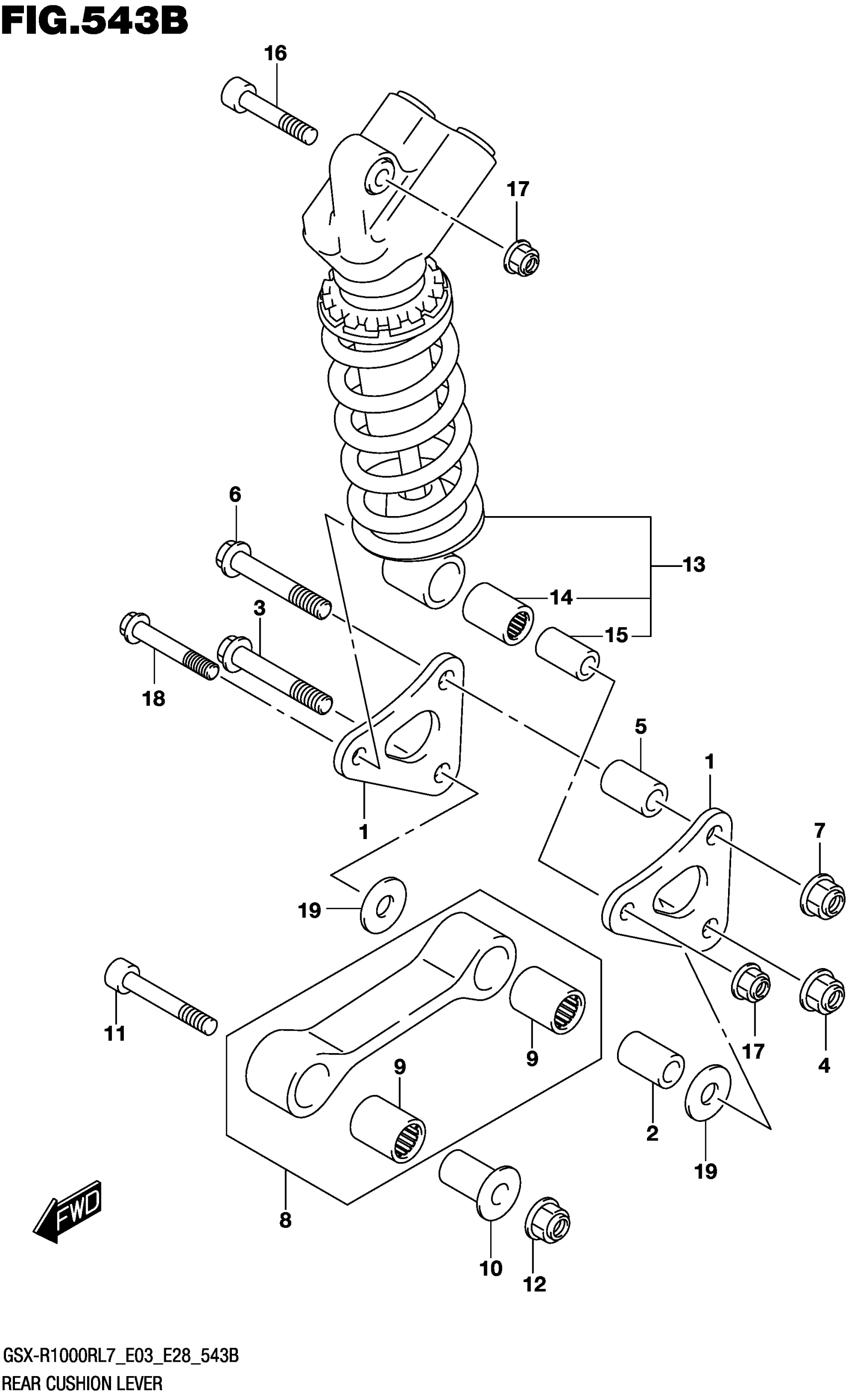

Suzuki GSX-R1000R L7 (2017) REAR CUSHION LEVER (GSX-R1000RL7 E28) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-17K00

$24.52

2

SPACER, REAR

62317-27C10

$16.76

3

BOLT, LOWER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, UPPER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSH This part replaces 62600-47810.

62600-47811

$157.23

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

SPACER, FRONT

62647-47H00

$35.28

11

BOLT,RR CUSHION ROD

62658-04K00

$14.37

12

NUT

09159-12056

$7.37

13-1

ABSORBER ASSY, REAR SHOCK | ARABIC, RUSSIAN, SPA

62100-17830-019

Unavailable

13-1

(BLACK)

62100-17830-019

Unavailable

13-2

ABSORBER ASSY, REAR SHOCK | ENGLISH, FRENCH

62100-17840-019

$1,923.95

13-2

(BLACK)

62100-17840-019

$1,923.95

14

.BEARING (17X24X32)

09263-17046

$41.45

15

.SPACER, SHOCK ABS LOWER

62317-47H00

$20.45

16

BOLT, RR SHOCK ABS UPPER

62658-04K10

$14.37

17

NUT

09159-10115

$3.55

18

BOLT, RR SHOCK ABS LOWER

62313-47H00

$11.95

19

WASHER (12X34X1)

09160-12037

$3.83
