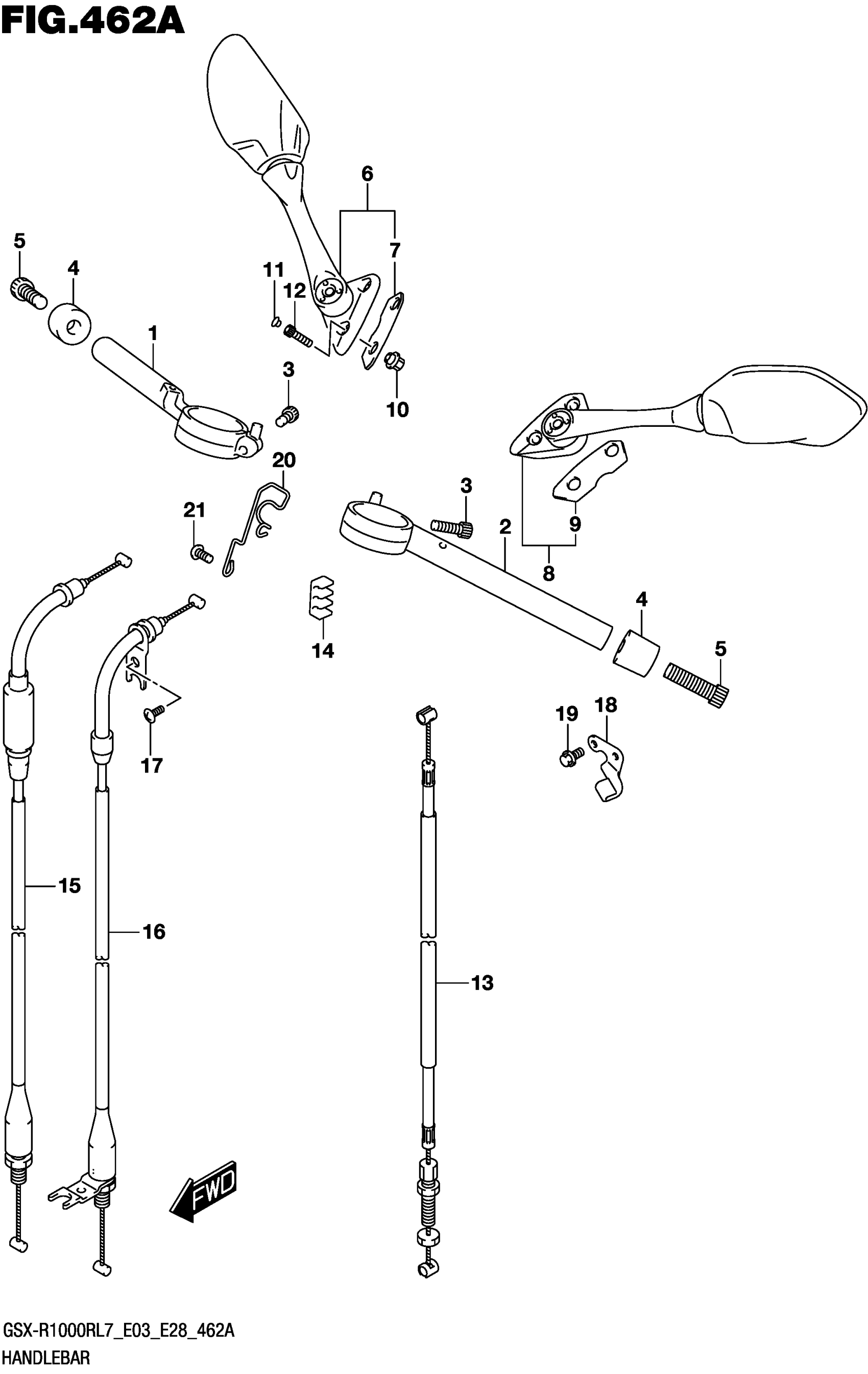

Suzuki GSX-R1000R L7 (2017) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR,R This part replaces 56111-17K00.

56111-17K01

$97.64

2

HANDLEBAR,L This part replaces 56151-17K00.

56151-17K01

$112.42

3

BOLT (8X32)

09106-08185

$2.73

4

BALANCER,HANDLEBAR

56278-17K00

$26.91

5

BOLT (12X45)

09106-12001

$5.17

6

MIRROR ASSY,REAR VIEW,R

56500-17K00

$138.03

7

.CUSHION,MIRROR

56525-17K00

$5.89

8

MIRROR ASSY,REAR VIEW,L

56600-17K00

$138.03

9

.CUSHION,MIRROR

56525-17K00

$5.89

10

NUT,RR VIEW MIRROR

56619-41G01

$9.31

11

CAP (OD:10)

09250-05009

$2.19

12

BOLT

07130-0620B

$3.05

13

CABLE ASSY,CLUTCH This part replaces 58200-17K00.

58200-17K01

$34.17

14

CLAMP

58285-17K00

$3.65

15

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-17K00.

58300-17K01

$57.58

16

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-17K10.

58300-17K11

$60.88

17

SCREW (5X10)

09125-05042

$1.96

18

STOPPER,CLUTCH CABLE

58635-17K00

$13.06

19

BOLT

01550-0616A

$1.97

20

GUIDE, CABLE

58621-17K00

$14.80

21

SCREW (6X16)

09139-06109

$2.73
