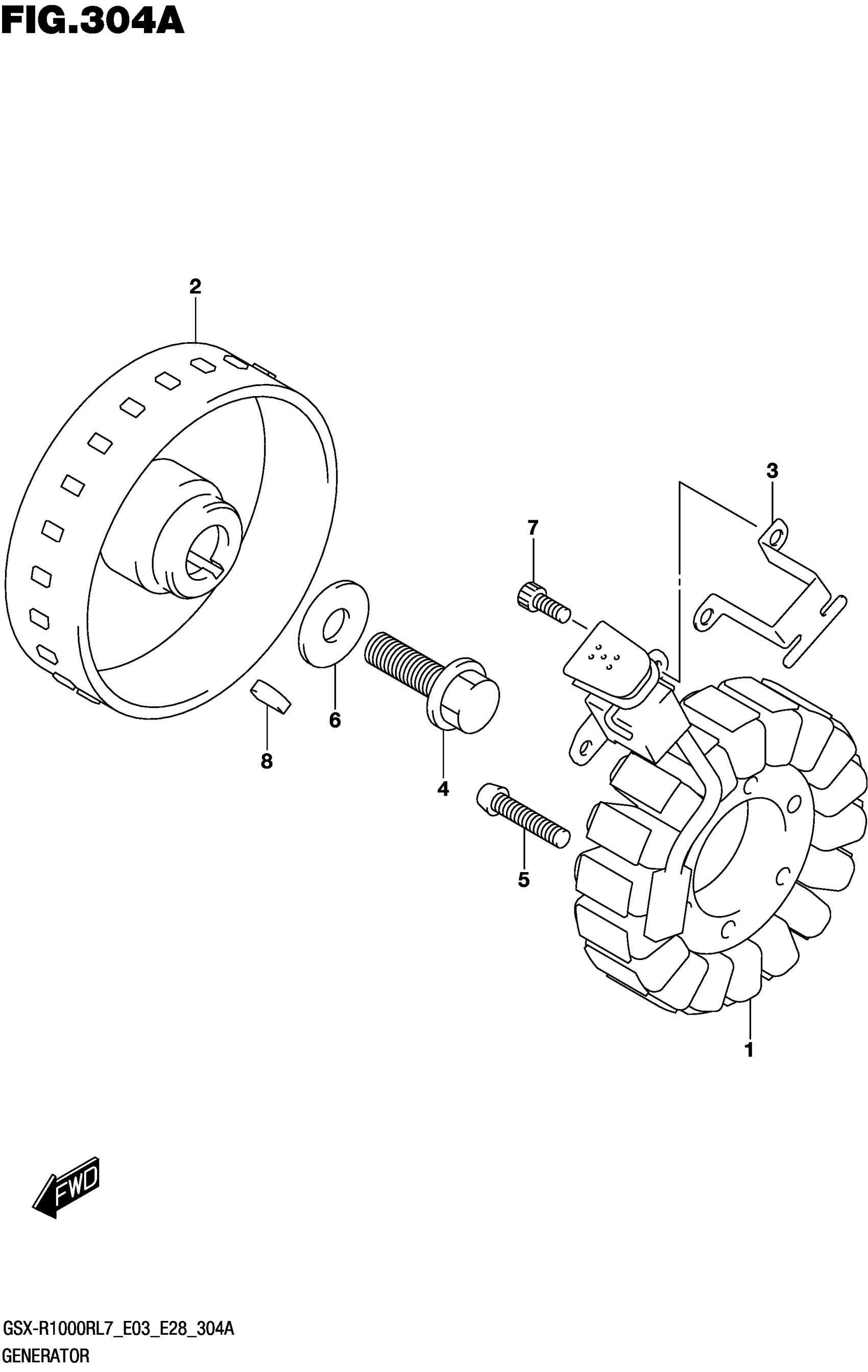

Suzuki GSX-R1000R L7 (2017) GENERATOR Diagram

#

Description

Price

1

STATOR ASSY

32101-17K00

$487.80

2

ROTOR ASSY

32102-17K00

$552.18

3

CLAMP,MAGNETO LEAD WIRE

32371-17K00

$11.15

4

BOLT

09103-12135

$7.40

5

BOLT

09106-06137

$3.62

6

WASHER (12X30X3.0)

09160-12036

$4.28

7

BOLT

07130-0512A

$2.19

8

KEY

09420-04008

$3.08
