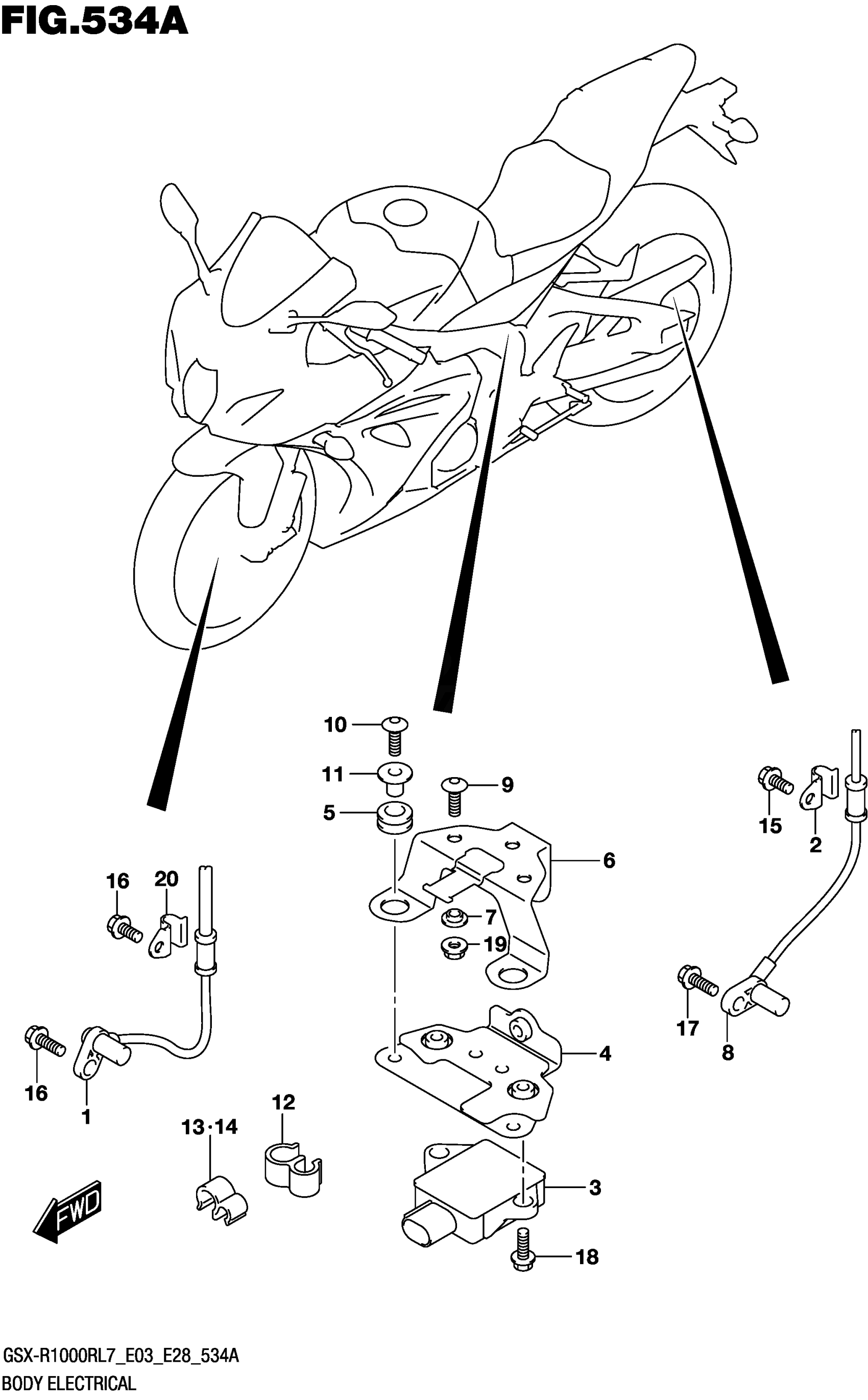

Suzuki GSX-R1000R L7 (2017) BODY ELECTRICAL Diagram

#

Description
Price

1

SENSOR,FR WHEEL SPEED

55710-17K20

$226.62

2

CLAMP, SENSOR LEAD

55731-15H00

$5.47

3

SENSOR,INERTIAL This part replaces 55750-17K10.

55750-17K20

$1,312.87

4

HOLDER,INERTIAL SENSOR This part replaces 55760-17K00.

55760-17K10

$33.87

5

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$5.38

6

BRACKET,SENSOR HOLDER

55770-17K00

$51.15

7

SPACER,SENSOR HOLDER BRKT

55772-17K00

$12.80

8

SENSOR,RR WHEEL SPEED

65710-17K00

$62.08

9

SCREW (6X16)

09139-06139

$2.92

10

BOLT

09139-06208

$3.53

11

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

12

CLIP

09408-00101

$3.40

13

CLAMP | FRONT

09408-00266

$2.69

14

CLAMP | REAR

09408-00266

$2.69

15

BOLT

01547-0612A

$2.01

16

BOLT

01547-0616B

$2.43

17

BOLT

01547-0616B

$2.43

18

BOLT

07120-0616A

$2.55

19

NUT

08316-1006A

$2.19

20

CLAMP,SENSOR LEAD

55731-17K00

$11.15
