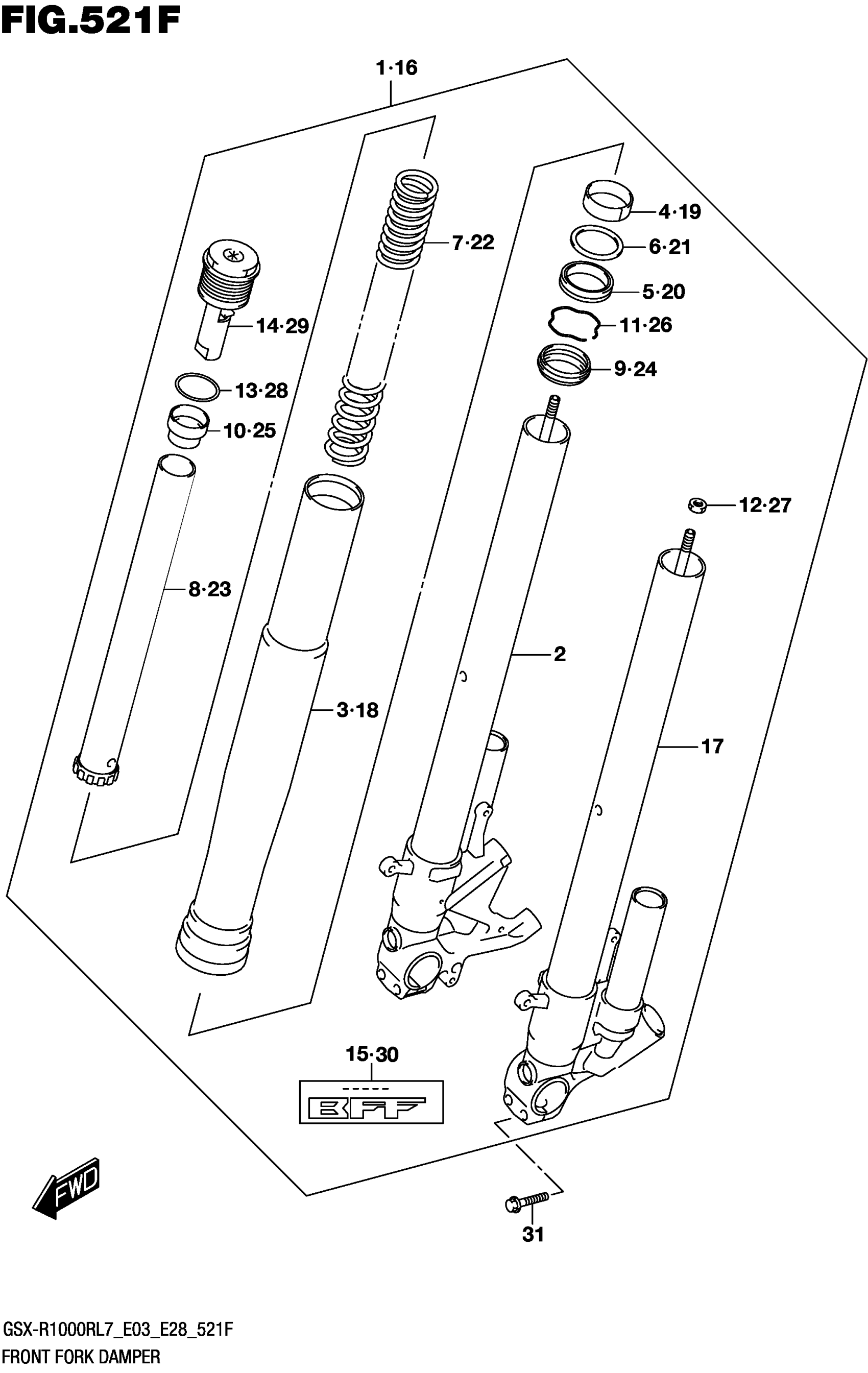

Suzuki GSX-R1000R L7 (2017) FRONT FORK DAMPER (GSX-R1000RZL7 E33) Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-17K20.

51103-17K21

$3,935.67

2

.TUBE, INNER RH

51110-17K20

$3,511.20

3

.TUBE,OUTER

51131-17K20

$625.35

4

.BUSH, GUIDE

51152-47H00

$14.20

5

.OIL SEAL

51153-27G00

$23.07

6

.SPACER, SEAL

51168-29G00

$6.52

7

.SPRING

51171-17K10

$129.25

8

.SPRING COLLAR

51198-17K10

$123.03

9

.SEAL, DUST

51173-27G00

$26.58

10

.SPRING COLLAR

51175-17K10

$63.30

11

.RING, STOPPER

51556-38B00

$7.22

12

.NUT

51827-29G00

Unavailable

13

..O-RING

51187-47H00

$6.93

14

.BOLT

51189-17K20

$279.57

15

.LABEL

68281-17K10

$7.52

16

DAMPER ASSY,FRO This part replaces 51104-17K20.

51104-17K21

$4,053.73

17

.TUBE, INNER LH

51120-17K20

$3,511.20

18

.TUBE,OUTER

51131-17K20

$625.35

19

.BUSH, GUIDE

51152-47H00

$14.20

20

.OIL SEAL

51153-27G00

$23.07

21

.SPACER, SEAL

51168-29G00

$6.52

22

.SPRING

51171-17K10

$129.25

23

.SPRING COLLAR

51198-17K10

$123.03

24

.SEAL, DUST

51173-27G00

$26.58

25

.SPRING COLLAR

51175-17K10

$63.30

26

.RING, STOPPER

51556-38B00

$7.22

27

.NUT

51827-29G00

Unavailable

28

..O-RING

51187-47H00

$6.93

29

.BOLT

51189-17K20

$279.57

30

.LABEL

68281-17K10

$7.52

31

BOLT

51321-36F00

$5.95
