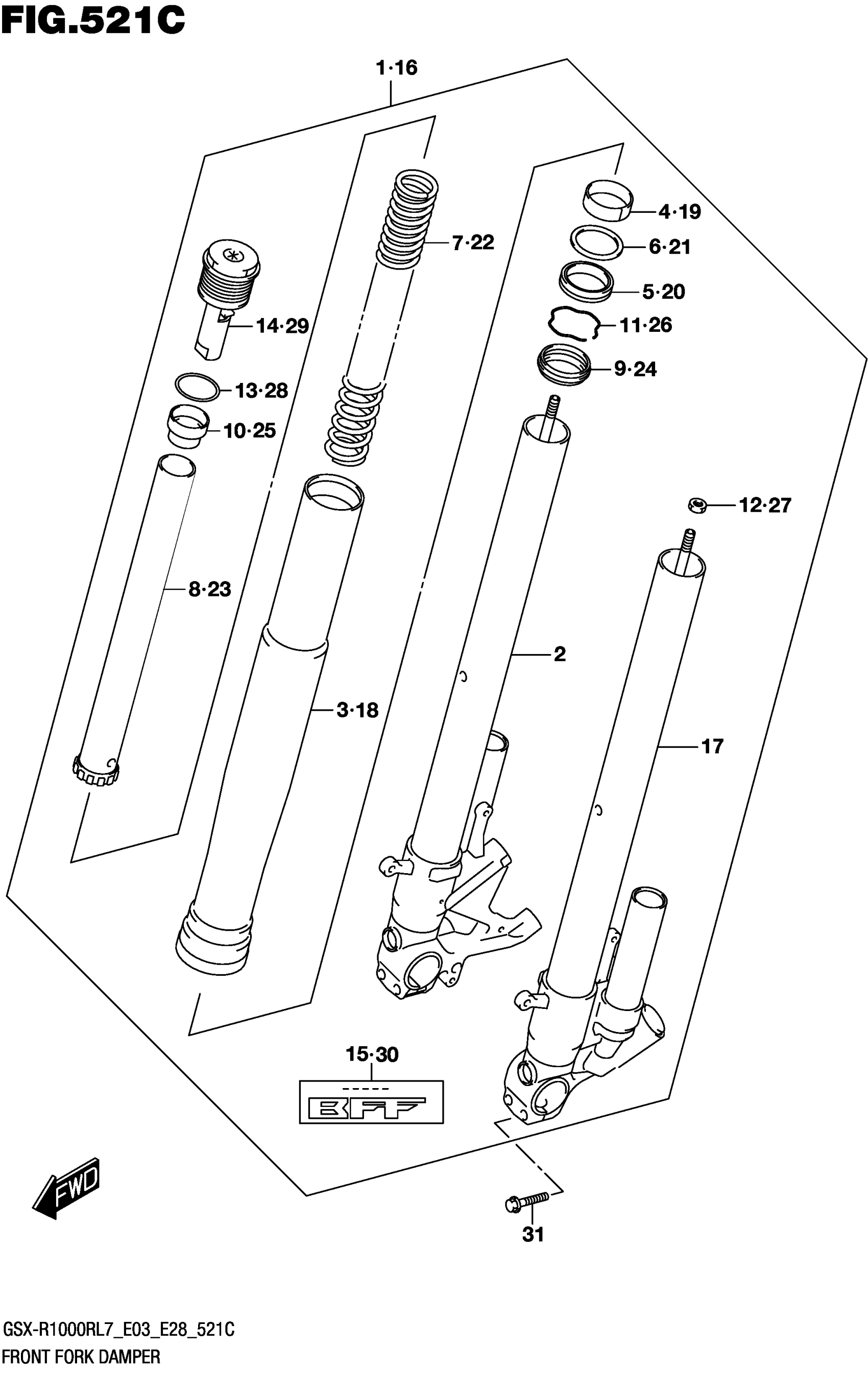

Suzuki GSX-R1000R L7 (2017) FRONT FORK DAMPER (GSX-R1000RL7 E33) Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-17K10.

51103-17K11

$3,279.58

2

.TUBE, INNER RH

51110-17K10

$3,833.53

3

.TUBE,OUTER

51131-17K10

$682.77

4

.BUSH, GUIDE

51152-47H00

$13.59

5

.OIL SEAL

51153-27G00

$22.07

6

.SPACER, SEAL

51168-29G00

$6.41

7

.SPRING

51171-17K10

$145.17

8

.SPRING COLLAR

51198-17K10

$138.20

9

.SEAL, DUST

51173-27G00

$25.43

10

.SPRING COLLAR

51175-17K10

$71.43

11

.RING, STOPPER

51556-38B00

$6.91

12

.NUT

51827-29G00

Unavailable

13

..O-RING

51187-47H00

$6.82

14

.BOLT

51189-17K10

$320.50

15

.LABEL

68281-17K10

$8.48

16

DAMPER ASSY,FRO This part replaces 51104-17K10.

51104-17K11

$2,948.20

17

.TUBE, INNER LH

51120-17K10

$3,833.53

18

.TUBE,OUTER

51131-17K10

$682.77

19

.BUSH, GUIDE

51152-47H00

$13.59

20

.OIL SEAL

51153-27G00

$22.07

21

.SPACER, SEAL

51168-29G00

$6.41

22

.SPRING

51171-17K10

$145.17

23

.SPRING COLLAR

51198-17K10

$138.20

24

.SEAL, DUST

51173-27G00

$25.43

25

.SPRING COLLAR

51175-17K10

$71.43

26

.RING, STOPPER

51556-38B00

$6.91

27

.NUT

51827-29G00

Unavailable

28

..O-RING

51187-47H00

$6.82

29

.BOLT

51189-17K10

$320.50

30

.LABEL

68281-17K10

$8.48

31

BOLT

51321-36F00

$5.69
